SATA to USB 3.0 Converter

Converts any SATA storage to SuperSpeed USB 3.0

Upgrading your system to use USB 3.0 ports? The SATA to USB 3.0 Converter converts any SATA device into the latest USB 3.0 (Superspeed) or ubiquitous USB 2.0 port. SATA I, SATA II, and SATA III hard drives, SSD (Solid State Drive), and even optical drives can now be easily converted into the blazing fast USB 3.0 interface. A 15-pin SATA power connector is built in to accommodate both 12V and 5V power source, assuring that any devices can be adequately powered.



Examples of devices which can be converted to Superspeed USB 3.0 with the SATA to USB 3.0 Converter

SATA hard drive or SSD


SATA optical drive


Addonics Diamond Drive Cartridge System


Addonics Ruby Drive Cartridge System

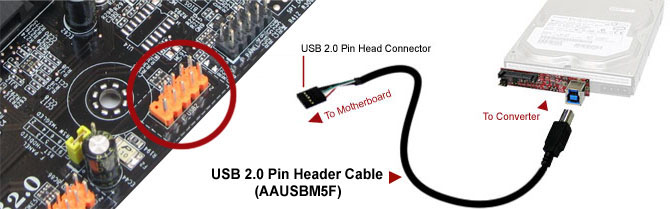

Can also connect to USB 2.0 pin header connector commonly found on system board with the bundled pin header cable


Product Features

  • Convert any type of SATA device including hard drives, SSD, and optical drives into the latest Superspeed USB 3.0 interface
  • Superspeed USB 3.0 Type B connector supporting up to 5Gbps maximum throughput

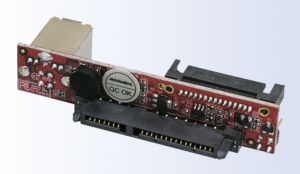

  • Mini vertical bridge board fits both 2.5", 3.5" or 5 1/4" SATA devices
  • Supplies power to 12V and 5V SATA drives through 15-pin SATA power connector
  • Compatible with SATA I, SATA II, and SATA III devices
  • Supports SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction
  • Backwards compatible to USB 2.0 ports
  • Include cable for connecting to USB 2.0 pin header on motherboard.
  • Serial ATA transfer rate of 3Gbps
  • LED pins for indicating power and drive activity

ADSAU3

SATA to USB 3.0 Converter

Package content:

one SATA to USB 3.0 Converter, connecting cable to USB 2.0 pin header(model: AAUSBM5F), user guide


Specifications

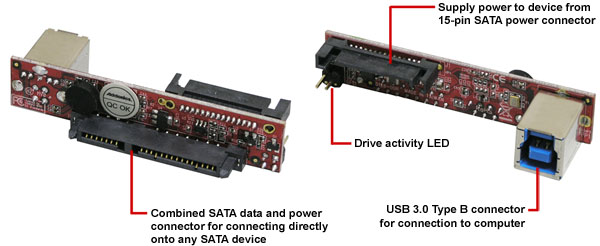

  • USB 3.0 Type B upstream connector on board
  • SATA drive 12V & 5V power from PC power supply through 15Pin SATA power connector
  • Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
  • Supports SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction
  • Compliant with Serial ATA Specification Revision 2.6
  • Supports Serial ATA transfer rate of 3.0 Gbps
  • Supports ATA/ATAPI Packet Command Set
  • Supports ATA/ATAPI LBA 48 Addressing mode
  • Pin header on board for accessing LED
  • Operating temperature range: 0 C to +70 C
  • Operating humidity range: 5% to 90%
  • Storage temperature range: -40 C to +85 C
  • Storage humidity range: 5% - 95% (non condensing)
  • 1 year warrnty
  • Fully RoHS compliance
