All stock codes associated to this product
VE022, 4710423777408, 47104237774081

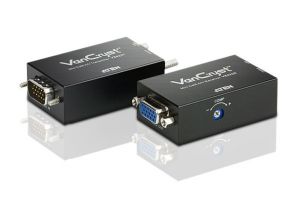

Aten Van Cryst Mini Cat5 VGA/Audio Extender. 1280x1024@60Hz - 150M

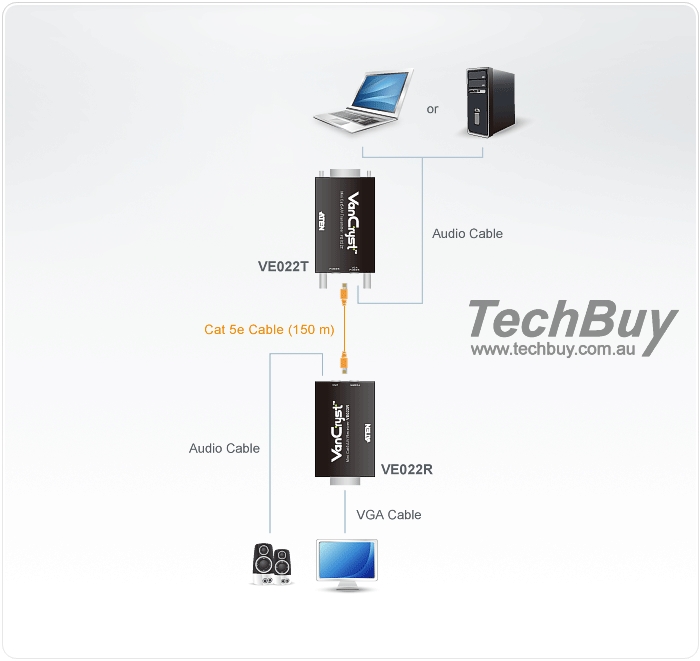

The VE022 Mini Cat 5 A/V Extender allows you to extend the distance between your video/audio source and display devices by as much as 150 meters, using a Cat 5e cable, providing an easy way to replace heavy and expensive VGA cables. With hot-plugging support, you can quickly add or remove the VE022 transmitter/receiver connected to the source/display device without having to power down devices.
The VE022 Mini Cat 5 A/V Extender is a compact, convenient and economical addition to your video/audio setup.
Package Contents
- 1x VE022T Mini Cat 5 A/V Transmitter
- 1x VE022R Mini Cat 5 A/V Receiver
- 1x Power Adapter
- 1x VGA Cable (35 cm)
- 1x Audio Cable (40 cm)
- 1x Dock Mount kit
- 1x User Guide
Features
The VE022 Mini Cat 5 A/V Extender allows you to extend the distance between your video/audio source and display devices by as much as 150 meters, using a Cat 5e cable, providing an easy way to replace heavy and expensive VGA cables. With hot-plugging support, you can quickly add or remove the VE022 transmitter/receiver connected to the source/display device without having to power down devices. The VE022 Mini Cat 5 A/V Extender is a compact, convenient and economical addition to your video/audio setup.
- Uses Cat 5e cable to extend audio and video transmission up to 150 m
- Superior video quality screen resolutions include 1920 x 1200@60Hz(30 m), 1600 x 1200@60Hz(100 m) and 1280 x 1024@60Hz(150 m)
- Adjustable Gain Control lets you manually adjust signal strength to compensate for distance
- Audio enabled (mono)
- No external power supply needed for transmitter
- Convenient docking interface for mounting the VE022 on the display device.
- Eliminates the need for bulky VGA cables
- Easy installation
Specifications
| Function |
VE022T |
VE022R |
| Connectors |
Video In |
1 x HDB-15
Male (Black) |
N/A |
| Video Out |
N/A |
1 x HDB-15
Female (Blue) |
| Audio In |
1 x Audio Jack
Female (Green) |
N/A |
| Audio Out |
N/A |
1 x Audio Jack
Female (Green) |
| Unit to Unit |
1 x RJ-45 Female |
| Power |
1 x DC Jack |
| LEDs |
Power |
1 (Green) |
| VGA Power |
1 (Green) |
N/A |
| Link |
N/A |
1 (Orange) |
| Switch |
Video
Compensation
Tuner |
N/A |
1 x Knob |
| Video |
1920 x 1200 @ 60 Hz at 30 m
1600 x 1200 @ 60 Hz at 100 m
1280 x 1024 @ 60 Hz at 150 m |
| Cable Distance |
150 m |
| Power Consumption |
DC5V, 0.44 W |
DC5V, 0.88 W |
| Environment |
Operating Temp. |
0 -50C |
| Storage Temp. |
-20 - 60C |
| Humidity |
0-80% RH, Non-condensing |
| Physical Properties |
Housing |
Metal |
| Weight |
58 g |
54 g |
Dimensions
(L x W x H) |
6.35 x 3.53 x 2.06 cm |
6.42 x 3.53 x 2.06 cm |
