Addonics mSATA to SATA SSD Adaptor - To Suit 2.5" SATA HDD Bay

IMG 1 of 1
No Longer Available
Part Number:
184281
(?) Brand:
Addonics Web Site
Manuf No:
ADMSAHDD
Shipping Weight:
0.3 KG (Includes product packaging)
Estimate Shipping
Date Added:
21/12/2011
Details Files Images & Video
All stock codes associated to this product
ADMSAHDD

This mSATA - SATA HDD Adapter is designed to enable mSATA (mini SATA) SSD to be used as a direct replacement for a 2.5" SATA hard drive. As a result, any equipment, such as Notebook computer, that uses a 2.5" SATA hard drive can be easily converted to use the low power and shock resistant flash media, just like a SATA solid state drive (SSD). Once installed, the mSATA appears as an ordinary SATA hard drive to any OS and can be configured as a boot device.

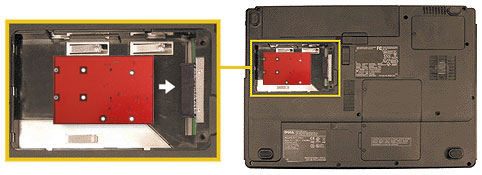

Illustration of replacing the hard drive with an mSATA - SATA HDD Adapter in a Notebook
Locate 2.5" SATA drive door and remove the screws to open the door. Remove 2.5" SATA hard drive from SATA connector. Attach the mSATA - SATA HDD Adapter with mSATA SSD card inserted onto the SATA connector.

note: the mSATA SSD can be secured inside the hard drive cavity with a double face tape. A small piece of styrofoam block may also be shaped to fit and fill the extra space. See the following link for the installation of the Addonics CF -SATA adapter as a reference.

  • Enable mSATA (mini SATA) SSD to be used like ordinary 2.5" SATA hard drive
  • Convert mSATA connector to SATA connector
  • Compatible with Port Multiplier
  • Mounts directly onto notebook hard drive bay with SATA connector

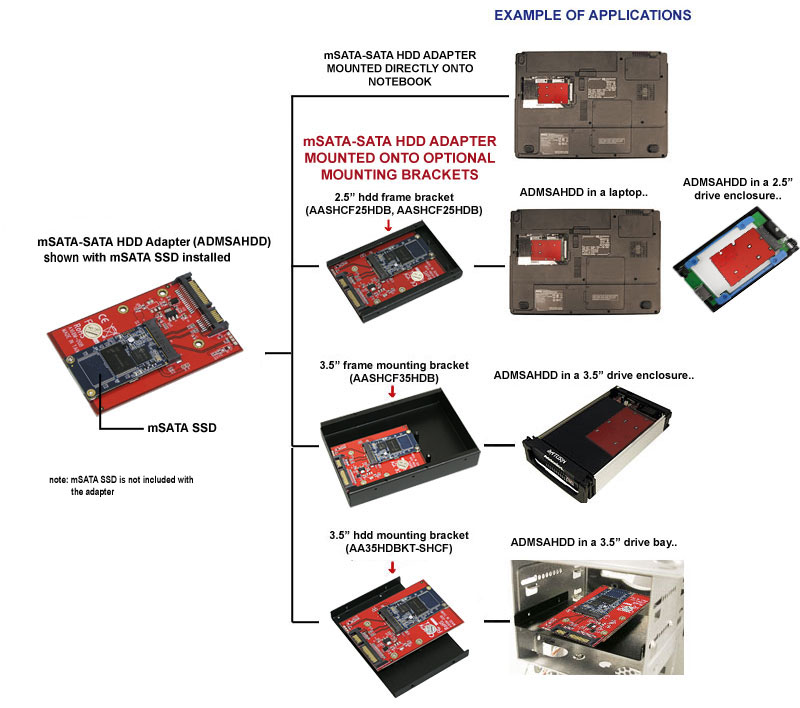

  • Can be mounted onto any 3.5" drive enclosure, 3.5" drive bay, 2.5" drive enclosure, slim CD drive bay with different Addonics optional mounting brackets
  • Can be the primary bootable device containing the OS and applications.
  • OS independent with no software driver to install



Interface:
 SATA
Supported media: mSATA SSD
Maximum Read / Write Speed: 6 Gbps. Actual speed depends on the media
OS Support: Operating System independent
Dimensions (W x D x H): 61 x 88 x 6 mm
Weight: 24g
Power: +5V from PC power supply
Operating Temperature : 0 C to + 65 C
Operating Humidity: 5% - 95% (non condensing)
Storage Temperature: -40 C to + 85 C
Storage Humidity: 5% - 95%
Warranty: One Year

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.
