- Stylish & Fast Router: Black-diamond design & fast Gigabit Ethernet
- Various USB Applications: Printer, FTP server & UPnP Streaming
- Friendly User Interface: 3-step Installation with easy setting
- Multiple SSID: Easily manageable net bandwidth with 4 sets of SSID
- 3-in-1 Funtion: Switch Between Router, AP & Repeater Mode Freely
Overview
With its Black-diamond outlook & Gigabit Ethernet, this is a stylish and superbly fast router

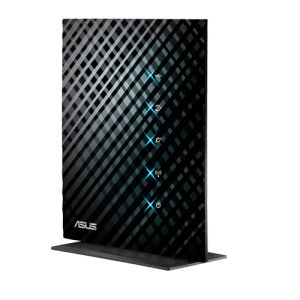

With the black-diamond shaped pattern and blue star LED, RT-N15U is not only a wireless router but an ornament at home. It is also equipped with gigabit fast Ethernet, letting users experience the best performance in both appearance and throughput.

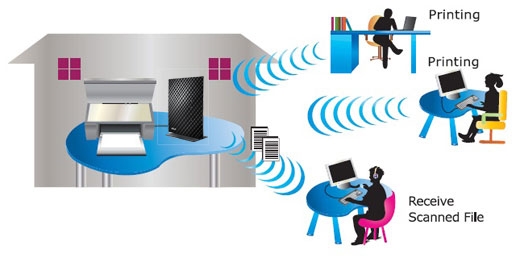

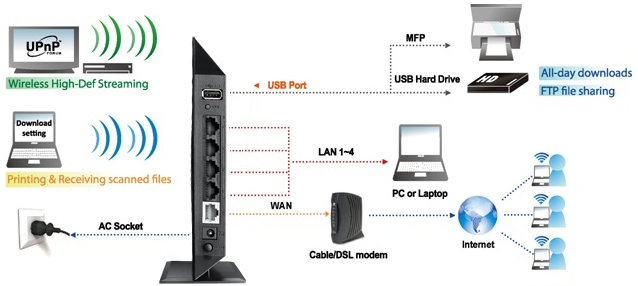

Various USB Applications: Printer, FTP server & UPnP Streaming
With more and more current devices equipped with wireless capability, users can now enjoy different functions without the limitation of space through wireless connection. User can also now use the versatile USB application such as wireless printing, FTP server, and UPnP multimedia streaming while setting up a wireless connection solution throught out right at home.

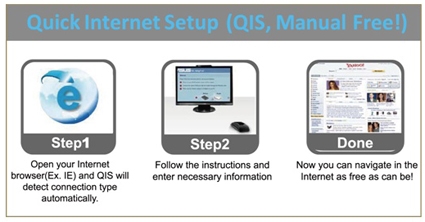

User-friendly User Interface: 3-step Installation & Easy Setting
ASUS creates the most user-friendly user interface for installing and setting. With the simple graphic network UI, users can easily setup and start surfing the internet. Setting up a wireless router for home network has never been that easy.

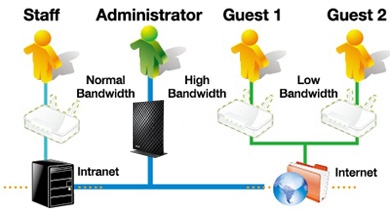

Multiple SSID
RT-N15U provides up to four wireless networking with dynamic bandwidth management. High bandwidth for top priority and full access while basic internet access for normal guests. This flexibility further enchance easy to configure networking management for office or SOHO user.

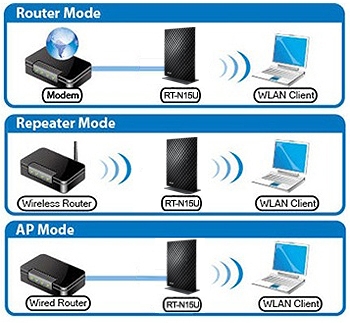

3-in-1 Funtion: Switch between Router, AP & Repeater Mode freely
With three differnet modes supported, users can easily switch between router, AP, and repeater for different functions need. With RT-N15U user can now create three complete networking access with the need of only one router.
Specifications
Network Standard |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4 |
Data Rate |
802.11b : 1, 2, 5.5, 11Mbps 802.11g : 6,9,12,18,24,36,48,54Mbps 802.11n : up to 300Mbps |
Antenna |
Internal 3 dBi antenna x 2 |
Operating Frequency |
2.4G~2.4835GHz |
Encryption |
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPS support |
Management |
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Triger, DMZ, Universal Repeater |
WAN Connection Type |
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP |
Utilities |
EZQoS(Easy Quality of Service) DHCP Server Web-based administration System Event log Firmware Upgrade Save/Restore Configuration File |
Ports |
1 x RJ45 for 10/100/1000/Gigabits BaseT for WAN, 4 x RJ45 for 10/100/1000/Gigabits BaseT for LAN USB 2.0 x 1 |
Button |
WPS Button, Reset Button, Power Button |
LED Indicator |
PWR x 1 LAN x 1 WAN x 1 USB x 1 |
Power Supply |
AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 1 A current |
Dimensions |
172 x 145 x 24 mm (LxWxH) |
Weight |
240 g |
Package Content |
Adapter *1 Quick start guide*1 Support CD *1 Warranty Card*1 Cable*1 Stand *1 |
