• Perfect for connecting smart TVs and consoles
  • Extend Internet access to any power outlet
  • Up to 500 Mbps speed for streaming 3D HD video
  • Elegant nano design fitting your surroundings
  • Gigabit-fast wired connectivity
  • Pick-a-Plug LED identifies best outlet for optimal performance
  • Push-and-Secure for easy secure connection
  • Energy-saving features with stand-by consumption < 0.5 Watt
  • Best-in-class performance and reliability
feature icon - speed 500multiple hd/3d streamsMultiplayer Gamingenergy savingsmart tvnano designgigabit connection
The NETGEAR Powerline Nano500 Set extends your Internet access to any electrical outlet for the most demanding applications. It offers easy, plug-and-play setup and faster speeds, all in a convenient small design. Perfect for connecting smart TVs, HD set-top boxes, 3D HD videos, Blu-rayTM players, DVRs, PCs and gaming consoles to your home network and the Internet.
  • Extend your network - Extend Internet access throughout your home to any electrical outlet for desktop PCs, smart TVs, gaming consoles and set-top boxes
  • HDTV & 3D HD - Speeds up to 500 Mbps enable applications such as HDTV, multiple HD and 3D HD video streams, streaming multimedia, and multiplayer gaming
  • Compact Design - Convenient nano-design blends in nicely with any surrounding
  • Plug-and-play - Sets up in minutes, no need to configure or install software
  • Push-and-Secure - Secures the network connection with the touch of a button, no need to remember passwords
  • Pick-a-Plug - Automatically tests the connection at any electrical outlet to ensure the highest possible performance
  • Energy-saving features - Automatically powers down when not connected or not in use, disable LEDs, less than 0.5 Watt in stand-by, packaging manufactured with at least 80% recyclable material
  • Expand your existing Powerline network - Backwards compatible with Homeplug AV including NETGEAR Powerline AV products
Choose The Product For you..
Product Speed Improved
Performance  Compatibility Multiplayer
gaming Best for
IPTV Multiple
Videos Gigabit
Connection Wireless
Access 4-Ports Extra
Outlet Powerline
Mini200 Up to
200 Mbps N/A HomePlug AV  checkmark gray Powerline
Up to
200 Mbps N/A HomePlug AV  checkmark gray checkmark gray Powerline
Nano500 Upto 500 Mbps Up to
50% more  HomePlug AV
IEEE  1901 checkmark black checkmark black checkmark black checkmark black
Average throughput gain in typical homes when comparing 500 Mbps vs. 200 Mbps Powerline technology.
Mini200 Set (XAVB1301)
Nano200+ Dual-port Set (XAVB2602)
Nano200 Set (XAVB1601)
AV 200 Wireless-N Extender Kit (XAVNB2001)
AV 200 Wireless-N Extender Kit (XAVNB2001)
Home Theater Connection Set (XAVB1004)
Nano500 Set (XAVB5101)
Nano500+ Set (XAV5001)

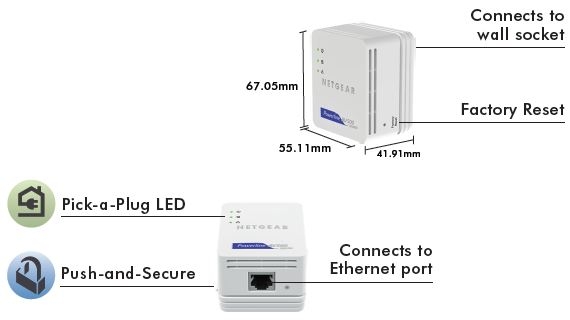

xavb5101 product specs

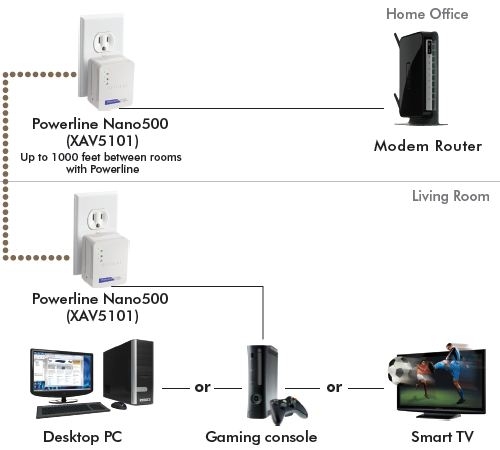

xavb5101 product connection diagram
Package Contents
  • Two (2) Powerline Nano500 Adapters (XAV5101)
  • Two (2) 2 m (6.5 ft) Ethernet cable
  • Quick install documentation
  • NETGEAR 1-year Warranty
System Requirements
  • To connect via Ethernet: RJ-45 Ethernet port
  • To visualize your Powerline network and secure connection via Software: Microsoft Windows 7, Vista, XP or Mac OS X
  • Dimensions: 67.05 x 55.11 x 41.91 mm (2.64 x 2.17 x 1.65 in)
  • Weight: 0.099 kg (0.22 lb) each
  • One (1) 500 Mbps Powerline AV interface each
  • One (1) Gigabit Ethernet port each
  • Typical coverage up to 5000 square foot home
  • HomePlug AV1 compliant
  • IEEE  1901 compliant
  • IEEE  802.3 compliant
NETGEAR Green Features
Icon - Recycle (small) 80% Recycled Packaging
Logo - RoHS (small) RoHS
Logo - WEEE (small) WEEE
Logo - REACH (small) Reach
icon Powerline Idle (small) Powerline Idle
xavb5101 footer logos
