DS1812+, DS1812+
DS1812+
High Performance NAS Server Scales up to 18 Drives for SMB Users
Synology DiskStation DS1812+ offers a high-performance, scalable, and full-featured network attached storage solution that meets the needs of small and medium-sized businesses that require an efficient way to centralize data protection, simplify data management, and rapidly scale storage capacity with minimal time spent on setup and management. The Synology DS1812+ is backed with Synologys 3-year limited warranty.
- 194.48 MB/sec Writing, 202.20 MB/sec Reading1
- Scaling up to 18 Drives with Synology DX510
- Featuring SuperSpeed USB 3.0
- Expandable RAM Module (Up to 3GB)
- 2 LAN with Link Aggregation Support
- CPU Passive cooling Technology & System Fan Redundancy
- VMware , Citrix , Microsoft Hyper-V Compliance
- Running on Synology DiskStation Manager (DSM)
Overview
High Performance, High Data Availability
With the Link Aggregation enabled, Synology DS1812+ delivers an average 194.48 MB/sec writing speed under RAID 5 configuration in a Windows environment, and 202.20 MB/sec reading. Coming with USB 3.0 support which offers transmission speeds of up to 5 Gbps, namely 10 times faster than USB 2.0, DS1812+ takes less time for data transfer for external hard drives and consumes less power. Synology DS1812+ brings you the high performance that your data-intensive applications demand for a storage system, and offers the ability to scale the storage capacity.
High Reliability
Reliable functioning of commercial systems is of paramount concern to business users who depend on these servers every day. Synology DS1812+ is now introduced with the fanless CPU heatsink to prevent the single point of failure. With the CPU passive cooling technology, Synology DS1812+ achieves the high reliability system design. When one of your system fans malfunctions, the built-in system fan redundancy mechanism can extend service uptime by keeping the remaining fan running and your DS1812+ performing basic operations until the replacement fan arrives. The 2 LAN with failover support and hot-swappable drives will ensure continual service uptime should the drives need replacement or the unexpected LAN failure occurs. Business need a strong foundation to face mission-critical tasks so the Synology DS1812+ delivers high reliability ensuring data access when it is needed.

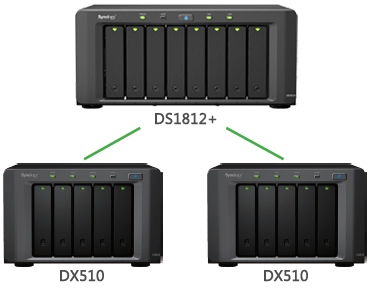

Robust & Affordable Scalability Up to 72 TB
When the storage capacity of the Synology DS1812+ is nearing its limits, it can easily be expanded with the Synology DX5102. The Synology DX510 securely connects to the Synology DS1812+ via an eSATA cable of specially-designed connectors on both ends to ensure maximum throughput. The Synology DX510 can directly expand the existing storage on the Synology DS1812+ to a maximum 72 TB capacity.
Unified-Architecture and Virtualization Ready
Synology DS1812+ runs on the novel operating system, Synology DiskStation Manager (DSM), which integrates file-level and block-level storage in one unified storage system. Comprehensive network protocol support (CIFS/SMB, AFP and NFS) assures seamless file sharing across Windows, Mac , and Linux platforms.
iSCSI is also supported as the ideal alternative to SAN solution for business. Affordable and cost-effective iSCSI allows large scale business to consolidate storage into data center storage arrays while providing hosts with the illusion of locally-attached disks. With the iSCSI support, DS1812+ provides a seamless storage solution for virtualization servers, such as VMware, Citrix, and Hyper-V.
Thin Provisioning is available for file-level iSCSI, enabling administrators to oversubscribe provision and then grow storage space as needed in safety. With Thin Provisioning, users are able to maximize the storage utilization to reduce the total cost of ownership for the storage system.
Full-featured Business Applications
The Synology DS1812+ runs on the renowned operation system, Synology DSM, offering applications and features designed specifically for SMBs. Comprehensive network protocol support assures seamless file sharing across Windows, Mac, and Linux platforms. Windows ADS and LDAP integration allows the Synology DS1812+ to quickly and easily fit in an existing business network environment with no need to recreate user accounts.
Directory Server package can turn DS1812+ into an LDAP-based directory server within minutes. IT administrators can bind other DiskStations to the directory server. With the same batch of directory user accounts or groups, employees can access all the DiskStations with the same user credentials.
Windows ACL support on DS1812+ provides much finer-grained access control and efficient privilege settings, allowing IT staffs to set up privileges to files and folders on DS1812+ through their familiar Windows user interface. The privileges set on Windows ACL will be applied to all access entries, including AFP, FTP, File Station, NFS and WebDAV. The secure privilege offers IT staff peace of mind, no worries about any loopholes.
Internet file access is simplified with the included encrypted FTP server and the web-based file explorer, Synology File Station. HTTPS, the built-in firewall, and IP auto-block support ensure file sharing over the Internet is protected at a high security level.
A wealth of additional features allows the Synology DS1812+ to replace several pieces of network hardware. Synology Web Station with support for PHP/MySQL content allows for the hosting of up to 30 websites on a single Synology DS1812+. Synology Surveillance Station offers a centralized interface to safeguard the office environments by deploying IP cameras throughout the network. The built-in mail server turns a Synology DS1812+ into a dedicated mail service provider and the USB printer sharing capability minimizes businesses printing cost by sharing printing resources throughout the office.
Energy Efficient Design
Synology DiskStation are designed and developed with energy efficiency in mind. Compared with the average PC counterparts, Synology DS1812+ consumes only 50.6 watts in operation. The support of wake on LAN, scheduled power on/off and hard drive hibernation can further reduce power consumption and operation cost.
All Synology products are produced with RoHS compliant parts and packed with recyclable packaging materials. Synology acknowledges the responsibility as a global citizen to continually work to reduce the environmental impact of every product produced.
1. With Link Aggregation enabled. The performance figures could vary on different environments.
2. DS1812+ supports up to two Synology DX510, purchased separately.
Specifications:
Hardware
- CPU Frequency : Dual Core 2.13GHz
- Floating Point
- Memory : DDR3 1 GB (Expandable, up to 3GB)
- Internal HDD/SSD : 3.5" or 2.5" SATA(II) X8(Hard drive not included)
- Max Internal Capacity : 32TB (8X 4TB HDD)(Capacity may vary by RAID types) (See All Supported HDD)
- Hot Swappable HDD
- External HDD Interface : USB 3.0 Port X 2, USB 2.0 Port X 4, eSATA Port X 2
- Size (HxWxD) : 157 X 340 X 233mm
- Weight : 5.21Kg
- LAN : Gigabit X 2
- Link Aggregation
- Wake on LAN/WAN
- System Fan : 120x120mm X 2
- Wireless Support
- Noise Level : 23.1 dB(A)
- Power Recovery
- AC Input Power Voltage : 100V to 240V AC
- Power Frequency : 50 / 60Hz, Single Phase
- Power Consumption : 71.5W (Access) ; 28.6W (HDD Hibernation)
- Operating Temperature : 5C to 35C (40F to 95F)
- Storage Temperature : 15 to 155F (-10 to 70C)
- Relative Humidity : 5% to 95% RH
- Maximum Operating Altitude : 10,000 feet
- Certification : FCC Class B, CE Class B, BSMI Class B
- Warranty : 3 Years
Notes :
- Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the DiskStation front and rear; Background noise: 17.2 dB(A); Temperature: 23.6C; Humidity: 58.2%; More details about dB(A) value, check https://www.memtechacoustical.com/facts.asp
- Power consumption is measured when fully loaded with Western Digital 3TB WD30EZRS hard drive(s).
- Support for Wake on WAN needs switch and routers which recognize Magic Packet.
Applications
- File Browser
- File Station
- FTP Server
- Bandwidth Control, Custom FTP Passive Port Range, Anonymous FTP, Transfer Log
- Mail Server
- Supported Mail Server Protocol : POP3, SMTP, IMAP
- Web Station
- Virtual Host (up to 30 websites)
- PHP/MySQL
- Alternative HTTP Error Page
- 3rd-Party Applications Support
- Surveillance Station
- MAX IP cam # (Licenses required) : 20(1 Free License) (See All Supported IP Cameras)
- Total frame rate (FPS) : 200 FPS @ WXGA (1280x800).
- Recording Modes : Manual, Continuous, Motion Detection, Alarm, Motion Detection and Alarm
- Event Playback : Sync Mode (4 Channels), Time Slicing Mode
- Centralized Management
- Compression Formats : MJPEG, MPEG-4, H.264
- Photo Station
- Supported Image Format : BMP, JPG (jpe, jpeg), GIF, RAW (arw, srf, sr2, dcr, k25, kdc, cr2, crw, nef, mrw, ptx, pef, raf, 3fr, erf, mef, mos, orf, rw2, dng, x3f)
- Supported Video Format : 3G2, 3GP, ASF, AVI, DAT, DivX, FLV, M4V, MOV, MP4, MPEG, MPG, QT, WMV, XviD, RM, RMVB, VOB, RV30, RV40, AC3, AMR, WMA3
User can click and download the following video formats: RM, RMVB, VOB, RV30, RV40, AC3, AMR, WMA3, but not able to play it in Photo Station as compressed Flash video.
- Audio Station
- Supported Audio Format (USB Mode) : AAC, FLAC, M4A, MP3, Ogg Vorbis, WMA, WMA VBR
- Supported Audio Format (Streaming Mode) : MP3, M4A, M4B
- Supported Playlist Format : M3U, WPL
- Internet Radio : SHOUTcast, Radioio
- DLNA/UPnP Media Server
- PS3/Xbox 360 Support
- Supported Audio Format : AAC, FLAC, M4A, MP3, Ogg Vorbis, PCM, WAV, WMA, WMA VBR, WMA PRO, WMA
- Supported Video Format : 3GP, 3G2, ASF, AVI, DAT, DivX, DVR-MS, ISO, M2T, M2TS, M4V, MKV, MP4, MPEG1, MPEG2, MPEG4, MTS, MOV, QT, SWF, TP, TRP, TS, VOB, WMV, XviD, RMVB (The actual playback capabilities may vary depending on the DLNA/UPnP client)
- Supported Image Format : BMP, JPG (jpe, jpeg), GIF, ICO, PNG, PSD, TIF (tiff), UFO
- Download Station
- Supported Download Protocols : BT/HTTP/FTP/NZB/eMule
- Custom BT Port Range
- BT / eMule Bandwidth Control
- iTunes Server
- Supported Audio Format : MP3, M4A, M4P, WAV, AIF, The music in WAV and AIF format can be streamed, but the metadata (ex: title, album) may not be indexed on the iTunes
- Supported Video Format : M4V, MOV, MP4
- Supported Playlist Format : M3U, WPL
- Print Server
- Max Printer # : 2
- Printing Protocols : LPR, CIFS, AppleTalk, Appel AirPrint, Multi Functional Print Server(Only PostScript USB printers are supported in MAC environment)
- Packages Center
- Directory Server
- HASP
- HiDrive Backup
- Mail Station2
- phpMyAdmin
- VPN Server
- Webalizer
- Squeezebox Server
- Syslog Server
- WordPress
- Time Backup
- OpenERP
- iPhone/Android Applications
- DS photo+
- DS audio
- DS cam
- DS file
- DS finder
Notes :
- Surveillance Station throughput is tested with Axis M1011 (640X480) and Axis M1054 (1280X800); FPS set to 10 at every channel; Compression rate: 30%; Video Codec: MJPEG, MPEG4 (640X480 only), H.264; Recording Type is conducted with Motion Detection Recording and Continuous Recording; Actual performance may vary depending on camera settings and DiskStation loading.
General
- Networking Protocols
- CIFS
- AFP
- NFS
- FTP
- WebDAV
- iSCSI
- Telnet
- SSH
- SNMP
- File System
- EXT4
- EXT3(External Disk Only)
- FAT (External Disk Only)
- NTFS (External Disk Only)
- Storage Management
- Max Volume # : 512
- Max File System Size : 108TB
- Max iSCSI Target # : 32
- Max iSCSI LUN # : 256
- Supported RAID Type : Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 5+Spare, RAID 6, RAID 10
- RAID Migration : Basic to RAID 1, Basic to RAID 5, Basic to RAID 5+Spare, RAID 1 to RAID 5, RAID 1 to RAID 5+Spare, RAID 5 to RAID 5+Spare, RAID 5 to RAID 6
- Volume Expansion with Larger HDDs : RAID 1, RAID 5, RAID 5+Spare, RAID 6
- Volume Expansion by Adding a HDD : RAID 5, RAID 5+Spare, RAID 6
- Synology Expansion Unit Support : DX510
- File Sharing Capability
- Max User Accounts : 2048
- Max Groups : 256
- Max Shared Folder : 256
- Max Concurrent Connections : 512
- Windows Access Control List (ACL)
- Windows ADS Domain Integration
- Domain Users login via Samba/AFP/FTP/File Station
- Backup Solutions
- Network Backup
- Local Backup
- Desktop Backup (using Synology Data Replicator 3 or Apple Time Machine backup application)
- Shared Folder Sync - Max task number : 8
- Time Backup - Max task number : 8
- Time Machine Backup (Mac)
- Security
- FTP over SSL/TLS
- IP Auto-Block
- Firewall
- Encrypted Network Backup over Rsync
- HTTPS Connection
- Management
- Auto DSM Upgrade
- Administrator Group
- Email Notification
- SMS Notification
- Customized User Quota
- DDNS Support
- IPv6 Support
- PPPoE
- Resource Monitor
- UPS Management
- Scheduled Power On/Off
- Custom Management UI HTTP/HTTPS Ports
- HDD Management
- HDD Hibernation
- S.M.A.R.T.
- Dynamic Bad Sector Mapping
- Utilities
- Synology Assistant
- Synology Data Replicator
- Supported Clients
- Windows XP onward
- Mac OS X 10.5 onward
- Ubuntu 9.04 onward
- Supported Browsers
- Chrome
- Firefox
- Internet Explorer : 7, 8, 9
- Safari (MAC) : 4, 5
- Supported Mobile Devices (Photo Station, File Station)
- iPhone OS 2.2.1 onward
- Android OS 1.5 onward
- Windows Mobile (IE Mobile or Opera 9.0 onward)
- Symbian OS 9.1, S60 3rd Edition onward
- Language : Czech, Danish, Dutch, English, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese Brazil, Portuguese European, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish
Environment and Packaging
- Environment
- RoHS Compliant
- Package Content
- Main Unit X 1
- Installation CD/DVD X 1
- Welcome Note X 1
- Assembling Kit X 1
- AC Power Cord X 1
- 2M RJ-45 LAN Cable X 2
- Optional Accessories
- Remote
- Camera License Pack
- 2GB RAM Module
- Expansion Unit : DX510
- VS80
(Updated : 2012/02/14)
