Samsung NC220 LCD Monitor - Black
  • 22", 5ms, 1680x1050, 10,000:1, 250cd/m2, DVI, GigLAN, Speakers

IMG 1 of 1
No Longer Available
Part Number:
188325
(?) Brand:
Samsung Web Site
Manuf No:
LF22NEBHBNM/XY
Shipping Weight:
10 KG (Includes product packaging)
Estimate Shipping
Date Added:
8/3/2012
Details Files Images & Video
All stock codes associated to this product
LF22NEBHBNM/XY, MNSLF22NEBHBNM, MNS-LF22NEBHBNM, 8806071941226

NC220


NC220

End User Computing Made Simple

With the Samsung Zero Client monitor for VMware

Features:
The Samsung C series allows you to benefit from the power of Samsungs LED* display technology and the advantages of cloud computing. Designed specifically for business use. The Samsung C series achieves high levels in display performance with its picture quality and slim design. The display also offers Power over Ethernet (UPoE) capabilities (*NC models only) so you can power your display and access the Ethernet through a single cable. The C series can be powered down with one simple step. The display is available in two different models so you have the option of choosing the display that best addresses your business needs and requirements.

* Samsung LED TVs utilise LCD screens with LED edge lights.

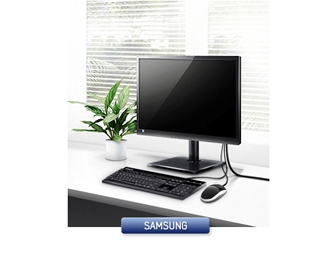

All-in-one design

All-in-one design

Screen. Its contemporary and innovative design ensures that keeping your work environment clean and tidy is simple. The benefit of not having a separate thin client box is that you can use your desk space in a productive manner. These innovative features come together perfectly for an all-in-one design that increases desktop space.

* Samsungs LED TVs utilise LCD Screens with LED edge lights.

VMware Certified PCoIP Cloud Monitor

VMware Certified PCoIP Cloud Monitor

Innovative PCoIP technology allows consolidation of most of your IT resources into a data centre, and provides high-performance computing via the IP network without reduction in performance or information, this provides a virtualised set of hardware to the operating system. It lets you run virtual multiple machines .At the desktop, the integrated PCoIP portal decompresses and distributes video, audio and data contents while preserving high performance and real-time graphics.

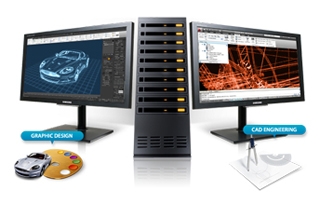

Access to superior graphics

Access to superior graphics

Superior graphics are enabled by the PCoIP protocol, giving users access to full performance graphics from VMware View enabled virtual machines. Full 3D modelling graphics are also available when using PCoIP enabled workstation platforms or PCoIP Host cards in standard PCs in conjunction with a GPU.

Security you can trust

Security you can trust

Consolidate almost all of your resources on the data centre and deliver your applications and data over LAN / WAN via and encrypted protocol PColP to your zero client. Access your critical data and applications while they are maintained and controlled in the data centre

Little Maintenance

Little Maintenance

Because all software and data is stored on the centralised host platform. The network is easy to install and easy to maintain.

Specifications:

Display


H-Scanning Frequency 31 ~ 80kHz
V-Scanning Frequency 56 ~ 75Hz

Panel


Diagonal Size 22"
type A-Si TFT active matrix
Resolution 1680 x 1050
Pixel Pitch (mm) 0.282 (H) x 0.282 (V)
Active Display Area 473.76 (H) x 296.10 (V) mm
Brightness 250cd/sq.m
Contrast Ratio (Dynamic) 10,000:1
Viewing Angle (Horizontal/Vertical) 170 / 160 deg (CR10) 178 / 178 deg (CR5)
Response Time (G-to-G) 5ms
Display Colour 16.7 million
Contrast Ratio 1,000:1

Connectivity


Input RGB RGB-in (Analog-in)
  Video No
  Audio Yes
Output RGB No
  Video DVI-out (for Dual, Digital-out)
  Audio Yes
  Power Out No
External Control No
External Sensor No

Mechanical Specification


Dimension Set Dimension (WxHxD) 508.0 x 388.4 x 197.0mm (with Stand)
508.0 x 388.4 x 50.5mm (w / o Stand)
  Package Dimension (WxHxD) 585 x 167 x 422mm
Weight Set Weight 5.0kg
  Package Weight 6.1kg
VESA Mount 100 x 100
Stand Type HAS Stand (Function: HAS 130mm, Tilt, Swivel)

Operation


Operating Temperature 10C ~ 40C
Humidity 10% ~ 80%

General Feature


Key LED backlight, No local O / S

Power


Power Supply External Adaptor
Power consumption Off Mode 0W (Mechanical switch off)
  On Mode 35W (idle), 51W (max.)
  Sleep Mode No sleep mode for NC products
type External Adaptor

Accessory


Included - User Manual
- Power Cord
- Adaptor
- Quick Setup Guide
- Warranty Card

Embedded PC


CPU Teradici Tera1100
Ethernet 10 / 100 / 1,000
Connectivity USB USB 1.1 x 4EA
  Output (1) Video Out (DVI, for dual)
(2) LAN 2EA (RJ 45, Giga) (function: LAN hub)
(3) Audio (HeadPhone)
(4) Serial Port
(5) Optional Built-in Speaker (1.5W x 2)

Certification


EMC Yes
Environment Yes
Safety Yes

Features and specifications are subject to change without prior notification.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 months*

Full manufacturers warranty details are available at the manufacturers (Samsung) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Please note: Most LCD monitors are covered by a 'dead pixel' policy that is manufacturer and model dependent, please contact the manufacturer for exact policy specifications.
