All stock codes associated to this product
ST3000VX000, HASEA3TBSV355, HASEA3TB-SV355, 715663215615, 7636490030635, N/A

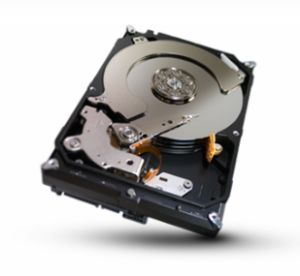

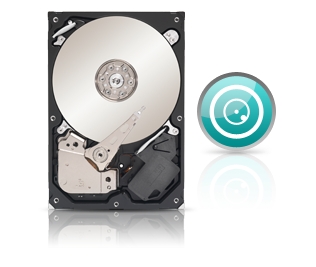

SV35.5 Series SATA 3TB Hard Drive
Model: ST3000VX000: SATA 6Gb/s: 3TB: 7200
Overview
Enhances data storage reliability in video security systems
Get the industry standard in video surveillance storage with Seagate SV35 Series hard drives. High-capacity, surveillance-optimised performance with an MTBF of more than 1M hours. Now with AcuTrac technology to enhance tracking reliability and performance, even under the most difficult operating environments.
Cost-effective, massive capacity designed for video storage applications.
Maximise your cost-per-gigabyte performance with the industry-leading, 1TB-per-disc technology of SV35 Series drives. With 1TB, 2TB and 3TB capacity points and the fewest internal components, SV35 Series drives deliver an unprecedented combination of high capacity, reliability and cost-effectiveness.
Build better surveillance systems
SV35 Series Hard Drives feature storage power and high performance for modern video surveillance systems
- SATA 6Gb/s interface provides access to the newest, fastest hard drive controllers, as well as legacy SATA 1.5Gb/s and 3 Gb/s controllers
- Leading 1TB-per-disc technology delivers 1TB, 2TB and 3TB capacities with fewer mechanical components
- 2A current-limited and spin control features enable more power management, saving power and improving reliability during archival periods
High-performance surveillance storage solutions
Stream more data faster and support more simultaneous cameras with SV35 Series drives. With the industrys highest areal density rates, SV35 Series drives support data rates of up to 210MB per second. Combined with new dual processor technology, 64MB of cache and surveillance-optimised write-cache management, there is no drive that matches the SV35 Series for high-performance surveillance applications.
Surveillance hard drives with enterprise-class reliability
SV35 hard drives are engineered for high-write workloads and multiple video stream recording with the following features:
- Industry-leading MTBF of >1M hours; AFR of <1%
- Performance driven, 7,200 RPM base platform, optimised with 64MB DDR2 DRAM, a dual core processor and surveillance-optimised write caching
- Seagate AcuTrac servo technology, providing accurate read-write operation even in challenging operating environments
Perfect when you need to:
- Equip network surveillance video recorders (NVRs)
- Build surveillance digital video recorders (DVRs)
- Create direct-attached or network-attached JBOD video storage
What do you get?
- SV35 Series hard drive
- Storage tailored for modern video surveillance systems
- Highly reliable storage designed for 247 workloads
- Legendary SV35 Series brand awareness for video surveillance products
SV35.5 Series SATA 3TB Hard Drive
ST3000VX000
| Specifications |
|
| Model Number |
ST3000VX000 |
| Interface |
SATA 6Gb/s |
| Cache |
64MB |
| Capacity |
3TB |
| Areal density (avg) |
625Gb/in2 |
| Guaranteed Sectors |
5,860,533,168 |
| PHYSICAL |
|
| Height |
26.1mm (1.028 in) |
| Width |
101.6mm (4.0 in) |
| Length |
146.99mm (5.787 in) |
| Weight (typical) |
626g (1.38 lb) |
| PERFORMANCE |
|
| Spin Speed (RPM) |
7200 RPM |
| Random read seek time |
<8.5ms |
| Random write seek time |
<9.5ms |
| Unrecoverable read errors |
1 in 1014 |
| RELIABILITY |
|
| Annual Failure Rate |
<1% |
| POWER |
|
| Maximum starting current, DC |
2.0 |
| ACOUSTICS |
|
| Acoustics (Idling Volume) |
2.4 bels |
| Acoustics (Seek Volume) |
2.6 bels |
