- GPU Tweak utility helps you modify and tune clock speeds, voltages, and fan performance via an intuitive interface
- Dynamically maximizes clock speeds based on workload of the game to push performance to new levels with NVIDIA GPU Boost technology
- Seamlessly adjust vertical sync to your current frame rates for a stutter-free gaming experience with NVIDIA Adaptive Vertical Sync
- Transform hundreds of PC games into full stereoscopic 3D with NVIDIA 3D Vision on a single GPU
Overview
Claws out - time to game!
ASUS Exclusive Innovation
GPU Tweak
- Automatically check and update driver and BIOS versions
- Monitoring widget provides detailed multi-parameter info
- Get detailed specs and actual card status with GPU-Z
- 2D/3D switcher can lock the card in 3D for higher benchmark
2GB GDDR5 Memory
On-board memory for the best gaming experience & the best resolution.
Graphics GPU Features
Powered by NVIDIA GeForce GTX 680
NVIDIA Adaptive V-Sync
NVIDIA Adaptive Vertical Sync adjusts VSync to current frame rates for maximum playability
NVIDIA PhysX ready
Dynamic visual effects like blazing explosions, reactive debris, realistic water, and lifelike characters.
28nm GPU
Less power consumption & more efficient transistor
Microsoft Windows 7 Support
Enable PC users to enjoy an advanced computing experience and to do more with their PC
NVIDIA GPU Boost
NVIDIA GPU Boost technology that dynamically maximizes clock speeds to push performance to new levels
NVIDIA SLI
Multi-GPU technology for extreme performance
NVIDIA 3D Vision Surround Ready
Bring games to life with NVIDIA Surround multi-monitor gaming on a single card
PCIE 3.0
Delivers double the bandwidth per lane of PCIe Gen 2 for faster GPU CPU communication
Microsoft DirectX 11 Support
Brings new levels of visual realism to gaming on the PC and get top-notch performance

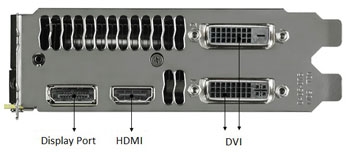

I/O Ports Highlight
Specifications
| Graphics Engine |
NVIDIA GeForce GTX 680 |
| Bus Standard |
PCI Express 3.0 |
| Video Memory |
GDDR5 2GB |
| Engine Clock |
1058 MHz |
| CUDA Core |
1536 |
| Memory Clock |
6008 MHz ( 1502 MHz GDDR5 ) |
| Memory Interface |
256-bit |
| Resolution |
DVI Max Resolution : 2560x1600 |
| Interface |
DVI Output : Yes x 1 (DVI-I), Yes x 1 (DVI-D)
HDMI Output : Yes x 1
Display Port : Yes x 1 (Regular DP) |
| Accessories |
1 x Power cable |
| Software |
GPU Tweak |
| Dimensions |
10.08 " x 4.37 " x 1.47 " Inch |
