All stock codes associated to this product
S2600IP4, 735858239295

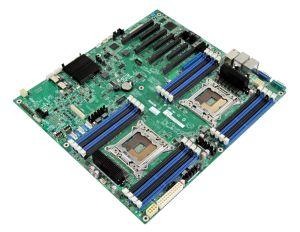

Intel Server Board S2600IP4
Supporting up to eight single-width or four double-width PCIe* cards for true enterprise class performance and expandability
Key Features
- Supports two Intel Xeon processor E5-2600 product family
- 16 memory sockets support LR/U/R-DIMMs
- Up to eight single-width PCIe* Gen3 slots or four double-width adapters for maximum I/O capacity/flexibility
- Intel Quad Gigabit Ethernet with Intel Virtualization Technology
- Intel Trusted Platform Module (Intel TPM)header for Intel Trusted Execution Technology (Intel TXT) support
- Onboard flash boot support includes eUSB SSD and SATA DOM
- Dedicated connector for optional x8 SAS ROC module
- Available only as part of an integrated system: 2U rack and pedestal options
Available expansion options include:
- Intel RAID C600 upgrade key options for eight SAS/SATA ports and two SATA 6Gb ports
- Intel I/O Expansion Modules
Unsurpassed I/O Capacity Provides Flexible and Expandable Performance for Any Size Business
The Intel Server Board S2600IP4 provides unsurpassed I/O capacity by exposing all 80 lanes of PCI Gen3 available in the chipset to offer eight single-width or four double-width card support in addition to a full range of SAS RAID and Intel I/O Expansion Module options. Featuring the new Intel Xeon processor E5-2600 product family, 16 DIMMs, and four 1Gb Ethernet ports, the Intel Server Board S2600IP4 delivers powerful performance and the ultimate in flexibility and is the ideal server building block for a variety of storage, embedded, and SMB solutions.
The Intel Server Board S2600IP4 is available in integrated 2U rack or 4U pedestal systems.
The S2600IP4 makes use of several exclusive new Intel Server Board Technology Innovations. The Intel Advanced Management Technology helps simplify and optimize system management for higher capacity and more secure platform management. Intel Quiet Thermal Technology enhancements, including Advanced Thermal Sensor Array and Thermal Trip Shutdown, provide thermal and acoustic management to reduce unnecessary noise and provide cooling flexibility while maximizing system efficiency. This board also makes use of power delivery enhancements from the Intel Efficient Power Technology to help improve power efficiency and reliability.
Target Applications
For storage, embedded, or enterprise customers that demand maximum I/O performance and capacity, the Intel Server Board S2600IP family is the flexible and powerful server building block of choice.
Specifications
| Essentials |
|
Status
|
Launched |
|
Launch Date
|
Q1'12 |
|
Expected Discontinuance
|
Q1'17 |
|
Limited 3-year Warranty
|
Yes |
|
Extended Warranty Available for Purchase (Select Countries)
|
Yes |
|
On-Site Repair Available for Purchase (Select Countries)
|
Yes, when integrated with Intel chassis. |
|
# of QPI Links
|
2 |
|
Board Form Factor
|
Custom 14.2" x 15" |
|
Chassis Form Factor
|
Rack or Pedestal |
|
Socket
|
Socket R |
|
Integrated Systems Available
|
Yes |
|
Integrated BMC with IPMI
|
IPMI 2.0 |
|
Rack-Friendly Board
|
Yes |
|
Embedded Options Available
|
Yes |
|
Supplemental SKU
|
No |
|
Max TDP
|
135 W |
|
Included Items
|
(1)General Purpose Intel Server Board S2600IP4 supporting 16 DIMMs with four 1Gb Ethernet ports, (1) I/O Shield, Intel Multi-Server Manager Software, (1) Quick Start Guide |
|
Description
|
Intel Server Board S2600IP4, Maximum IO server board supporting two E5-2600 CPUs and 16 DIMMs with four 1Gb Ethernet ports |
|
Target Market
|
Storage |
| Memory Specifications |
|
Max Memory Size (dependent on memory type)
|
500 GB |
|
Memory Types
|
DDR3 ECC UDIMM 1600, RDIMM 1600, LRDIMM 1333 |
|
# of Memory Channels
|
8 |
|
Max Memory Bandwidth
|
819 GB/s |
|
Physical Address Extensions
|
46-bit |
|
# of DIMMs
|
16 |
|
ECC Memory Supported
|
Yes |
| Graphics Specifications |
|
Integrated Graphics
|
Yes |
|
Graphics Output
|
15-pin VGA |
|
Intel Clear Video Technology
|
No |
|
Dual Display Capable
|
No |
|
Discrete Graphics
|
Supported |
| Expansion Options |
|
PCI Express Revision
|
3 |
|
PCIe x8 Gen 3
|
6 |
|
PCIe x16 Gen 3
|
1 |
|
PCIe x4 Gen 2.x
|
1 |
|
Intel IO Expansion Module PCIe x8 Gen 3
|
1 |
|
Intel Internal IO Expansion Module PCIe x8 Gen 3
|
1 |
| I/O Specifications |
|
USB Revision
|
USB 2.0 |
|
# of USB Ports
|
5 |
|
USB 2.0 Configuration (Back + Internal)
|
4 |
|
# of SATA Ports
|
10 |
|
# of eSATA Ports
|
0 |
|
RAID Configuration
|
Up to SW Raid 5 (LSI + RSTE) |
|
# of Serial Ports
|
2 |
|
# of LAN Ports
|
4 |
|
Integrated LAN
|
4x 1GbE |
|
Embedded USB (eUSB) Solid State Drive Option
|
Yes |
|
Integrated SAS Ports
|
8 |
| Package Specifications |
|
Max CPU Configuration
|
2 |
|
Energy Star
|
Yes |
|
Low Halogen Options Available
|
See MDDS |
| Advanced Technologies |
|
Intel Trusted Execution Technology
|
Yes |
|
AES New Instructions
|
Yes |
|
Intel vPro Technology
|
No |
|
Intel Active Management Technology
|
No |
|
Intel AMT Version
|
False |
|
Intel Remote Wake Technology
|
No |
|
Intel Remote PC Assist Technology
|
No |
|
Intel Remote Management Module Support
|
True |
|
Intel Intelligent Power Node Manager
|
Yes |
|
Intel CIRA Technology
|
No |
|
Intel Anti-Theft Technology
|
No |
|
TPM
|
Yes |
|
Intel TPM Version
|
Intel TPM Version 2.0 |
|
Intel Quick Resume Technology
|
No |
|
Intel Quiet System Technology
|
No |
|
Intel HD Audio Technology
|
No |
|
Intel AC97 Technology
|
No |
|
Intel Matrix Storage Technology
|
Yes |
|
Intel Fast Memory Access
|
Yes |
|
Intel Flex Memory Access
|
Yes |
|
Intel I/O Acceleration Technology
|
True |
