CS1944
Overview

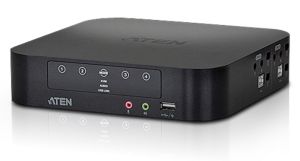

The CS1944 4-port USB 2.0 Dual View Mini DisplayPort KVMPâ„¢ Switch allows access to 4 computers from a single USB keyboard and USB mouse with dual displays. The KVM switches amazing functionality combines a Dual view 4-port Mini DisplayPort switch, with a 2-port USB 2.0 hub, and front panel USB quick charge port for mobile devices.
The CS1944 further improves on previous KVM designs with the latest
Mini-DisplayPort and Mini-TOSLINK connectors. It also provides the capability of
digital video & audio with reliable Ultra high resolution, vivid picture
quality, surround sound with SPDIF connections.
The CS1944 is ideal for multimedia applications, and offers the ultimate in
space-saving, streamlined KVM technology for the desktop.
Features
| One dual-view
USB console independently and simultaneously controls four Mini DisplayPort
computers and two USB devices | - USB quick charge mode (front panel USB port)
- Mini DisplayPort 1.1a & HDCP compatible
- Full bass response provides a rich experience for digital surround sound
systems via Mini-TOSLINK
- Superior video quality – enables up to 2560 x 1600 resolution and 3D
displays up to 1920x1080 resolution at 120Hz
- Nvidia 3D Vision Ready
| 2-port USB
2.0 hub built in, fully compliant with USB 2.0 specifications | | Computer
selection via front touch panel /hotkeys/ mouse* | | Independent
switching for USB peripherals, audio, and KVM focus | | Keyboard and
Mouse support emulation and bypass | | Power on
Detection | | Mac keyboard
support and emulation** | | Multilingual
keyboard mapping Supports English, Japanese, and French keyboards | | Multiplatform
support Windows, Linux and Mac |
* Mouse port switching is only workable under mouse emulation mode. For 3-key
USB wheel mouse only.
**PC
keyboard combinations emulate Mac keyboards.
**Mac
keyboards only work with their own computers.

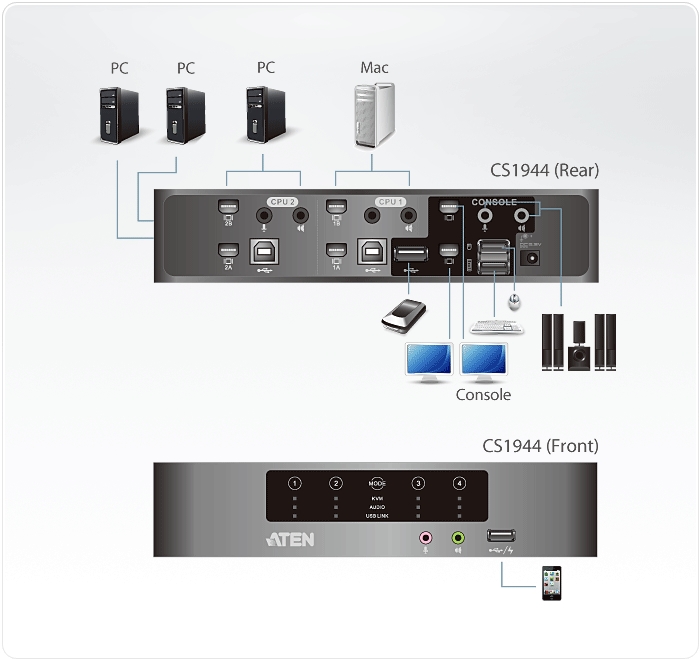

Diagram
Specifications
|
Computer
Connections |
?>
4 |
|
Port
Selection |
Touch Panel, Hotkey,
Mouse |
|
|
|
Connectors |
|
Console
Ports |
2 x USB Type A Female
(Black, rear panel) |
|
2 x Mini DisplayPort
Female (Black) |
|
2 x Mini TOSLINK Jack
Female (Black) |
|
1 x 3.5mm Audio Jack
Female (Green) |
|
1 x 3.5mm Audio Jack
Female (Pink) |
|
KVM
Ports |
4 x USB Type B Female
(White) |
|
8 x Mini DisplayPort
Female (Black) |
|
4 x Mini TOSLINK Jack
Female (Black) |
|
USB
Hub |
2 x USB Type A Female
(White; 1 x Front panel, 1 x Rear panel) |
|
Power |
1 x DC
Jack |
|
|
|
Switches |
|
Selected |
4 x Point Touch
Panel |
|
LEDs |
|
KVM |
4
(Orange) |
|
Audio |
4
(Green) |
|
USB |
4
(Green) |
|
|
|
Emulation |
|
Keyboard /
Mouse |
USB |
|
Video |
DP: 2560 x 1600
resolution @ 60Hz, or 3D Display 1920 x 1080 resolution @
120Hz |
|
Scan
Interval |
1 99 seconds
(Default: 5 seconds) |
|
Power
Consumption |
DC5.3V,
8.63W |
|
|
|
Environmental |
|
Operating
Temperature |
0 50C |
|
Storage
Temperature |
20 60C |
|
Humidity |
0 - 80% RH,
Non-condensing |
|
|
|
Physical
Properties |
|
Housing |
Plastic |
|
Weight |
0.61 kg ( 1.34 lb
) |
|
Dimensions (L x W x
H) |
19.70 x 19.70 x 4.47
cm |
|
(7.76 x 7.76 x 1.76
in.) |
Package Contents
-
1x CS1944 4-port USB 2.0 Dual View Mini DisplayPort
KVMP Switch
-
4x Mini DisplayPort 1.1a 1 m Cable
-
4x Mini DisplayPort 1.1a 2 m Cable
-
4x USB 2.0 1.8 m Cable
-
4x Audio Jack 1.8 m Cable Sets
-
1x Power Adapter
-
1x User Instructions
