All stock codes associated to this product
NAS40ESU, NAS40ESUAU, NAS40ESU-AU
NAS 4.0 Adapter
Share as many as 16 hard drives over the LAN As large as one exbibyte per drive volume
75MB/sec transfer speed over 1G network Enterprise NAS at a fraction of the cost
The NAS 4.0 is Addonics' 4th generation NAS adapter with several major enhancements. Comes with two eSATAp ports that allows attaching either two eSATA or two USB 2.0 storage devices onto the LAN, as many as 16 storages devices (or drive volume) can be attached to the new NAS 4.0 using USB hubs. With these many drives, you can easily share multi-Terabyte storage over LAN or build your own private cloud storage that can be accessed via the built-in FTP server.
Performance of the NAS 4.0 is quadrupled from the previous NAS adapter to 75 MB/sec over 1G network.Both the maximum number of SMB and FTP accounts as well as the concurrent users supported by the NAS 4.0 are vastly expanded to support over thousands and hundreds respectively.
The NAS 4.0 also support storage devices with multiple partitions, with each partition appearing as a share folder on the network. The supported file system now includes XFS, EXT2, EXT3, EXT4. NTFS and FAT32. A very large storage in excess of hundreds or thousands of Terabytes storage capacity can be easily built by attaching multiple units of Addonics RAID Towers or RAID Racks. A storage farm with capacity exceeding many commercial data center can be easily put together at just a fraction of the cost of an enterprise storage system. Storage capacity can be added to the NAS 4.0 in many many years to come without ever reaching the capacity limitation.
Constructed in a rugged metallic housing in the size of a cigarette pack, the NAS 4.0 adapter is built to last and can be deployed in home, general office, factory or mobile environment.

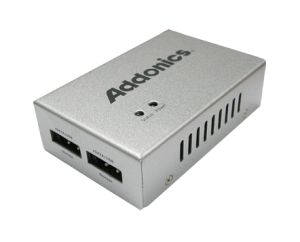

Front View of NAS 3.0 Adapter
Rear View of NAS 3.0 Adapter
Illustration of a NAS 4.0 Adapter connected to the LAN and WAN
|
|
Model #
|
NASU2 |
NAS30U2 |
NAS40ESU |
| supported network speed (Mbits/sec) |
10/100 |
10/100/1000 |
10/100/1000
|
| Supported File system |
FAT32 |
FAT32/64, NTFS |
XFS, EXT2, EXT3, EXT4, NTFS, FAT16, FAT32
|
| Max. transfer rate |
~ 8 MB/sec R/W |
FAT64:
XFS: ~ 80 / 50 MB/sec R/W
|
| MAx. # of HDD / Flash drives supported |
1 |
2 (one is shareable READ only) |
16 by using USB hub or Port Multiplier via USB connection
|
| Max. # of partitions per drive |
1 |
1 |
15
|
| Storage interface |
USB 2.0 |
One USB 2.0 for storage
Two eSATAp ports that can be used for eSATA or USB 2.0 connection
|
| Maximum drive volume |
2 TB |
FAT64: 128 PB
XFS: 16 TiB
Min. drive volume
|
1 GB |
1 GB
|
64 MB
|
| Max. file size |
127GB |
FAT64: 16 EB
|
XFS: 16 TiB - 1 byte
|
| USB hub support |
NA |
NA
|
Yes
|
| SMB server |
Yes |
Yes
|
Yes
|
| FTP server |
Yes |
NA
|
Yes
|
| WebDAV server |
NA |
Yes
|
NA
|
| Print Server |
Yes |
Yes |
NA |
| Media server |
Yes |
Yes |
NA |
| Bit-Torrent client |
Yes |
Yes |
NA |
| ML-Donkey client |
NA |
NA |
Yes |
| Max. # of SMB accounts |
16 |
16 |
64,000 |
| Max. simultaneous SMB connections |
64 |
64 |
32,000 SMB and FTP combined |
| Max. # of FTP accounts |
32 |
NA |
64,000 |
| Max. simultaneous FTP connections |
64 |
NA |
32,000 SMB and FTP combined |
| Max. # of webDAV accounts |
NA |
16 |
NA |
| Max. simulaneous WebDAV connections |
NA |
no more than 4 for best performance |
NA |
| Size (L x W x H) |
(70 x 32 x 24) mm or (2.75 x 1.25 x .94) in. |
(85 x 55 x 23) mm or (3.35 x 2.17 x .91) in. |
(85 x 55 x 23) mm or (3.35 x 2.17 x .91) in. |
| Weight |
45g (1.6 Oz) |
~ 78g (2.75 Oz) |
~ 172g (6.1 Oz) |
| Enclosure material |
plastic |
plastic |
heavy duty sheet metal |
Features:
- Turn any eSATA or USB mass storage device into a Network Attached Storage appliance
- Great for attaching Addonics Raid Tower / RAID Rack, Flash reader and any Addonics USB storage device onto the network
- A powerful tool for creating a custom Network Attached Storage appliance.
- Two eSATAp ports for connecting two eSATA storage devices for high performance or two USB 2.0 storage devices
- Up to 16 storage devices can be connected to the LAN with the following additional accessories:
- USB Hub
- Port Multiplier (PM) via USB connection such as the Addonics PM model AD5HPMREU. For PM that is not equipped with USB connection, the Addonics USB 3.0 - eSATA adapter can be used for converting the eSATA output from the PM to USB. Please review using the PM in the Q&A sectionfor more detail
- Support Up to 15 partitions per storage device - giving a maximum 240 drive volumes on the network
- Built-In SMB / Samba server for file sharing over LAN
- Built-in FTP server for file access over the internet
- Support any eSATA or USB storage with XFS, EXT2, EXT3, EXT4, NTFS or FAT32 file system
- Maximum drive volume capacity:
- XFS - 16 tebibyte (TiB)
- EXT3 - 16 tebibyte (TiB)
- EXT4 - 1 EiB
- NTFS - 256 TB
- FAT32 - 2TB
- Storage device with existing data can be attached to the NAS adapter(the folder name must be in large CAP to be sharable). See Q&A section on folder and file security setting.
- Built-in file formatting utility for XFS and EXT3
- Support 10/100/1000 Mbps network
- Maximum data transfer over Gigabit LAN:
eSATA storage USB storage read write read write XFS up to 85 MB/sec up to 45 MB/sec up to 30 MB/sec up to 30 MB/sec EXT3 or EXT4 up to 50 MB/sec up to 35 MB/sec up to 30 MB/sec Up to 30 MB/sec NTFS up to 16 MB/sec up to 5 MB/sec up to 16 MB/sec up to 5 MB/ses FAT32 up to 18 MB/se up to 8 MB/se up to 18 MB/se up to 8 MB/sec
Built-in MLDonkey client for direct download to the attached storage device
- Web GUI administration
- User management to allow read only or read/write access to folders
- USB port can be used to power most 2.5" USB hard drives or any low power USB storage device
- Simple to install
- Small and light weight. Size of a cigarette pack. Can be installed practically anywhere
- Rugged metal enclosure for use in wide range of application environments
- Compatible with all Windows OS, Mac OS X, Linux 2.6.x and above
Specifications:
- Two eSATAp (eSATA/ USB 2.0 combo) connectors
- SATA 1.0 specification
- USB 2.0 / 1.1 specification
- USB port can supply power up to 1.5A at 5V using the bundled power adapter
- One RJ45 socket for 10/100/1000Mbps Ethernet connection
- File systems support: XFS, EXT3, EXT4, NTFS, FAT16, FAT32
- Maximum # of storage devices supported - 16 (requires combination of USB hubs or Port Multipliers)
- Maximum # of partition per storage device - 15
- Maximum user accounts:
- Maximum # of concurrent connections:
- Samba and FTP server combined - 32,000*
- LED for power, status and LAN activity
- Power consumption: 2 watts @ idle, 2.5 watts average during operation
- Dimensions (L x W x H): ~ (85 x 55 x 23) mm or (3.35 x 2.17 x .91) in.
- Weight: ~172g (6.1 Oz)
- Operation Temperature: 0 C ~ 70 C
- Operation Humidity: 10 ~ 90 %RH
- Storage Temperature: -20 C ~ 70 C
- Storage Humidity: 5~ 95 %RH
- Power consumption: ~ 500mA @ 5V
* These are the theoretical limits in the kernel. As # of concurrent connections increase, performance starts to decline depending on the drive access activity from the concurrent connections.
