RT-AC66U
802.11ac Dual-Band Wireless-AC1750 Gigabit Router
- 5th generation 802.11ac chipset gives you concurrent dual-band 2.4GHz/5GHz for up to super-fast 1.75Gbps
- ASUS AiCloud service: Access, stream, share, sync – all on the go with unlimited storage expansion!
- Gigabit Ethernet ports for the fastest, most reliable internet performance
- AiRadar optimizes wireless coverage with detachable high-powered antennas
- Enjoy the ASUSWRT dashboard UI for 3 steps easy setup, signal monitoring, and network application control
- Download Master for wireless data storage and access to your router-connected USB storage devices
- File sharing, printer sharing, and 3G sharing via two multi-functional built-in USB ports
Overview
Upgrade to the Next Generation

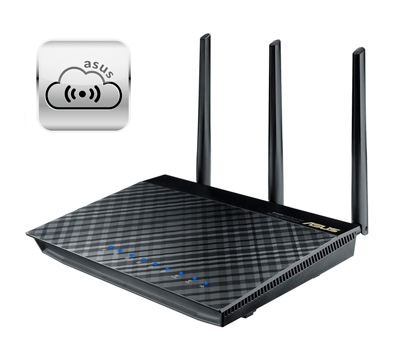

The ASUS RT-AC66U is a 5th gen dual-band Wi-Fi router, and the launch platform for the new ASUS AiCloud service. Its speed reaches 1.75Gbps, currently the fastest available, utilizing the Broadcom 802.11ac Wi-Fi controller and working in 2.4GHz and 5GHz. The 5GHz band supports up to 1.3Gbps, exceeding current Gigabit wired transmission and 3X faster than 802.11n. The RT-AC66U offers smooth lag-resistant multitasking and super-fast streaming, while ASUS AiRadar intelligently strengthens wireless connections via powerful amplification, offering future-proof optimized performance.
AiCloud offers a unified app for iOS and Android devices that turns the RT-AC66U into a personal cloud server, with easy connectivity to Windows PC, Mac, Linux machines, and all USB storage. Each account can sync with other AiCloud clients and public cloud products directly. All your content, files, and data can be accessed, synced, shared, and managed from almost any device – smartphones to desktops – wherever and whenever you’re online.
Whether you’re a tech-savvy enthusiast or a first-time user, the RT-AC66U is exceptionally easy to use with CD-free Quick Installation Setup (QIS) that lets you plug-n-surf right out of the box and connect PCs, smartphones, tablets, and other wireless devices quickly. Thanks to its refined interface tools, you get control like never before, letting you monitor signal strength, setup parental settings, and other useful functions in a robust yet intuitive way.

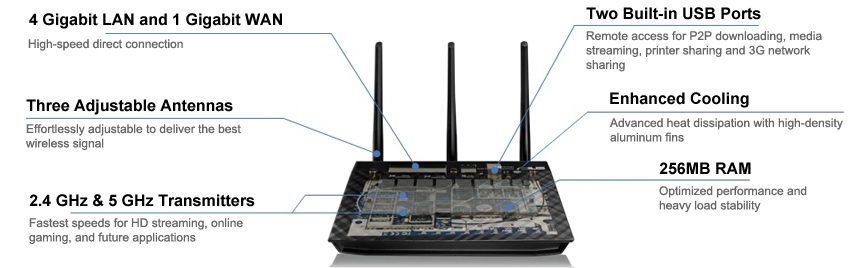

Designed for Class-Leading Speed and Range
With the latest in networking technology, the RT-AC66U delivers exceptionally fast wired and wireless connectivity. ASUS builds this flagship router with the highest-grade components, offering you the best quality to enable stable connectivity and convenient expandability. The router uses powerful detachable Wi-Fi antennas to further extend wireless range.
Worlds Fastest Wi-Fi: 802.11ac
Powered by 5th generation Wi-Fi (5G Wi-Fi), the new 802.11ac Broadcom chipset gives the RT-AC66U superfast Gigabit wireless speeds. Compared with current 802.11n, the RT-AC66U delivers up to 1.3Gbps at 5GHz, which is 3X faster than 802.11n! The upgraded bandwidth has the higher capacity you need to increase Wi-Fi enjoyment at home. With notebooks, desktops, pads, and smartphones now all Wi-Fi-reliant, its time to upgrade to the next generation so you can expand you connectivity now and in future.

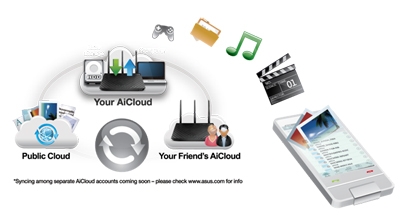

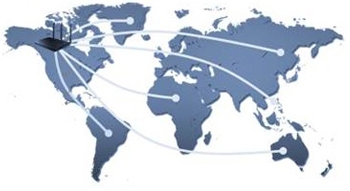

The one place for all your data – ASUS AiCloud
ASUS AiCloud is a smart and easy mobile application that brings your ASUS cloud experience to iOS and Android. Access, stream, sync, and share all your files on the go from both public and private cloud storage services.

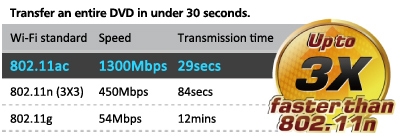

Based on theoretical maximum speeds in 5GHz transmission, with one DVD equaling 4.7GB

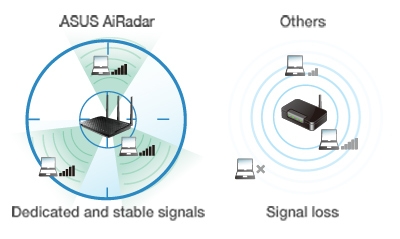

Optimized and Reliable Wireless Coverage via AiRadar
ASUS AiRadar intelligently strengthens connections to wireless devices. With high-powered amplification and beam packaging, it provides optimized signals in any direction with better coverage to improve your data throughput.

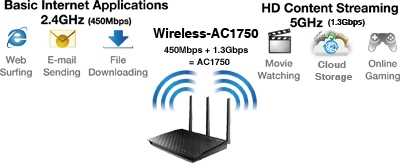

Dual-Band Connectivity for Lag-Free Entertainment
Delivering 2.4GHz and 5GHz concurrent bands at up to 450Mbps and 1.3Gbps, respectively, the RT-AC66U has a total speed of up to 1.75Gbps, and maintains complete stability. You can perform basic tasks like web browsing and file downloading on the 2.4GHz band, while simultaneously allowing multiple devices to stream in HD or support online gaming and other demanding applications smoothly on the clearer 5GHz band.

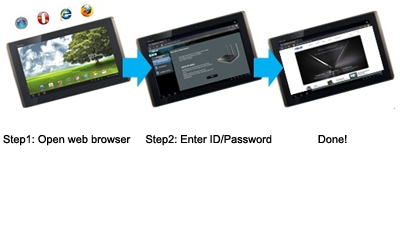

3-Step Easy Setup Through Your Pad, Smartphone, or PC
With the RT-AC66U, setup is a breeze. Simply power and connect the router and open a browser on a Wi-Fi-enabled device like a notebook or pad. You will then be taken to a setup page with a prompt to enter the ID/password from your internet provider, and that’s it! Setting up your network is easier than ever
Get online in 30 seconds
Smart auto-detection design makes it possible for you to go from first plugging in the RT-AC66U to setup completion in under 30 seconds! Compared to the lengthy installs and hassles of other routers, this development from ASUS offers a true wonder of ease of use, and puts the most extreme networking speeds within your reach quicker than ever before.

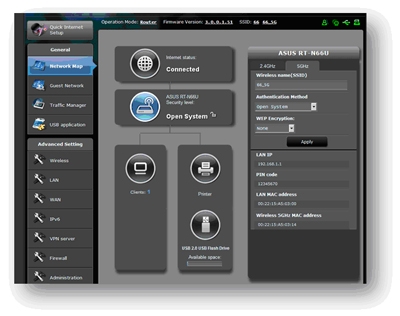

Powerful Functions and Extra-Easy Management
With the ASUSWRT dashboard UI, you can setup, monitor, and control network applications all in one intuitive area. The whole-new dashboard interface lets you manage all clients and settings via a single graphical interface, and provides 1-click updates.

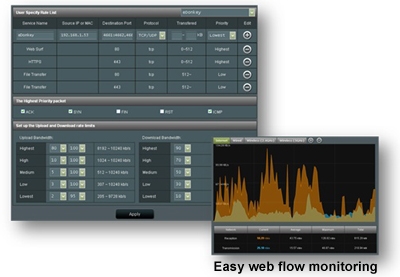

Optimize Your Network
Do you game a lot, or spend most of your time streaming videos? Whatever your planned use is, the RT-AC66U has Quality of Service (QoS) standards that let you select how much bandwidth is prioritized for virtually any task. Plus, the traffic monitor allows you to check your web usage in a clear graphical interface.

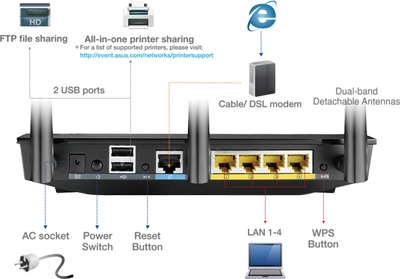

Two Multi-Functional Built-In USB ports
Featuring connectivity to FTPs, SAMBA, UPnP AV servers, and DLNA devices, the RT-AC66U makes sharing and networking easier with two built-in USB ports. Download HTTP, FTP, and P2P files to a router-connected USB storage device all day even without a PC. Additionally, the twin USB ports allow for networked printer and file server connections, so you can perform.

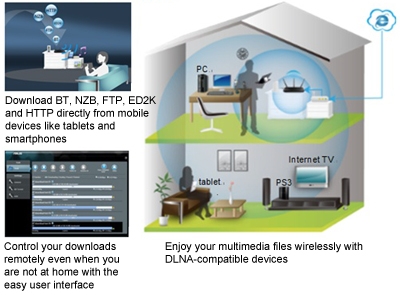

Download and Stream Anywhere
Download Master and DLNA server compatibility let you download and play multimedia files stored on router-attached USB storage on DLNA-enabled devices such as PC, pad, PS3, Xbox, and smart TV. Download Master can also download files while your PC is turned off, and allows you to manage and monitor download status remotely.

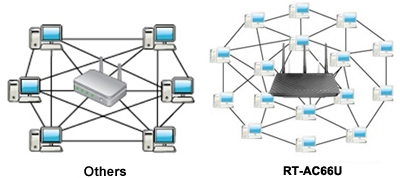

Powerful Online Multitasking with 300,000 Data Sessions
Support for a massive data pipeline of up to 300,000 data sessions means the RT-AC66U has around 20 times the networking capacity of conventional routers for exceptionally smooth performance.

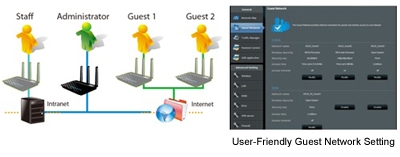

Discrete and Secure Wi-Fi Networks via Guest Access
The RT-AC66U supports up to three wireless networks over the 2.4GHz band and three over the 5GHz band, so you can set up usage times and limit access with advanced controls, including parental settings.
VPN Server Enabled
Easily set up a VPN server to browse the web and access data — no matter where you are. Featuring MPPE encryption, your data transmission remains always secure and confidential.

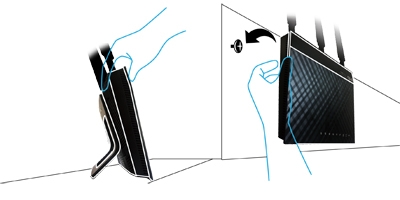

Flexible Installation with Versatile Design
Being wall-mountable, the RT-AC66U fits nearly in any space in the home or office.
Specifications
| Network Standard |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.3u, IPv4, IPv6 |
| Data Rate |
802.11a : 6,9,12,18,24,36,48,54Mbps
802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 450Mbps
802.11ac: up to 1300Mbps |
| Antenna |
Detachable antenna x 3 |
| Operating Frequency |
2.4G~2.4835GHz /5.1~5.8GHz |
| Encryption |
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise |
| Firewall & Access Control |
Firewall: SPI intrusion detection,DoS protection
Access control: Parental control, Network service filter, URL filter, Port filter |
| Management |
UPnP, DLNA, DNS Proxy, NTP Client, DDNS, Port Triger, Virtual Server, DMZ |
| VPN Support |
IPSec Pass-Throuth
PPTP Pass-Through
L2TP Pass-Through
PPTP server |
| WAN Connection Type |
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Dual Link support
Multicast Proxy support |
| Utilities |
Download master
- support BT, NZB, HTTP, ED2K
- support encryption, DHT, PEX and magnet link
- upload and download bandwidth control
- download scheduling
Media server:
Image: JPEG
Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg
Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
QoS:
WMM
User definable rules for IP/MAC/Port. Upload and Download bandwidth management.
ACK/SYN/FIN/RST/ICMP with Highest priority
Guest Network
2.4GHz guest network x 3, 5GHz guest network x 3
Printer Server: multifunctional printer support(Windows nly), LPR protocol support
File server: Samba and FTP server with account management
PPTP VPN server
Network map
Traffic monitor |
| Ports |
1 x RJ45 for 10/100/1000 BaseT for WAN, 4 x RJ45 for 10/100/1000 BaseT for LAN, Support Ethernet and 802.3 with max. bit rate 10/100/1000 Mbps and auto cross-over function(MDI-X)
USB 2.0 x 2 |
| Button |
WPS Button, Reset Button, Power Button |
| LED Indicator |
PWR x 1
LAN x 4
WAN x 1
AIR x 2
USB x 1 |
| Power Supply |
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.58 A current |
| Dimensions |
207 x 148.8 x 35.5 mm (WxDxH) |
| Weight |
450 g |
| Package Content |
RT-AC66U Dual Band 3x3 802.11AC Gigibit Router
Router stand
RJ-45 cable
Support CD (User manual and utility software)*
Power adapter
Quick start guide
Warranty card |
