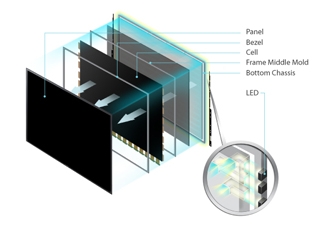

Youll find the new Samsung LED LFD is lighter than previous LFD models. Yet it offers heavy weight communication solutions for any modern business looking to convey concise marketing or educational messages.
Low power consumption means lower running costs

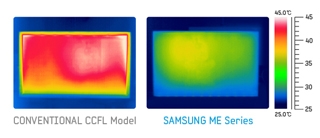

The Samsung ME series delivers a cost-effective solution that’s also gentle on the planet. The LED technology driving the LFD consumes less energy than conventional CCFL-based LFD and is lower on CO2 emissions.Plus, you can optimise the conditions of your digital signage by reducing the amount of heat radiating through the actual display area. Conventional LFDs emit consistent amounts of heat across the breadth of the display, while the new Samsung LFD not only minimise it but centralise it around the sides of the screen. This proves helpful in creating a more enjoyable environment to be in, especially when working in close proximity to the displays.
Embedded media player
In your day-to-day work, it’s a constant challenge to make sure your messages are noticed quickly with maximum impact. With the built-in media player for your Samsung LFD, you can elevate your display capabilities more than you ever thought possible.
Built within a microchip the media player has a CPU with a powerful processing speed and an impressive cache size. This means you can store and play advertisements, instructional films and animatics quickly and conveniently.

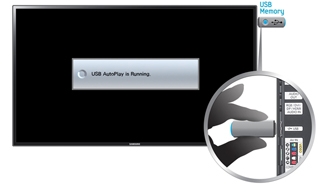

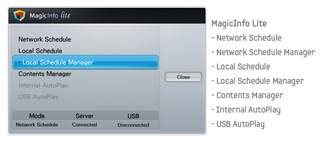

MagicInfo Lite: scheduling function, auto play function
The inclusion of our Samsung MagicInfo Lite software enables you to run the LFD as a stand alone unit without the need of additional players, display and schedule Flash or play a PowerPoint slide show and image files for increased versatility. Its features include Network Schedule, Network Schedule Manager, Local Schedule, Local Schedule Manager, Contents Manager, Internal AutoPlay and USB AutoPlay.
Auto brightness sensor
The brightness sensor detects the ambient light intensity and automatically adjusts the screen brightness.

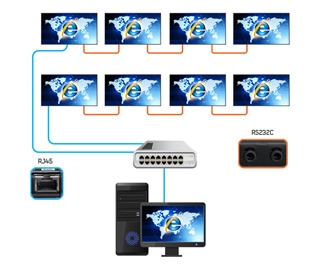

Ethernet / RS-232C remote control
The ME series lets you control your display with both Ethernet / RS-232C remote control simultaneously. What’s more it features a built-in LAN card, allowing users to access the network without the need for additional devices or infrastructure.
Landscape or portrait Mode to fit your needs
This Samsung LFD gives you the flexibility to install your display vertically or horizontallydepending on your available space. Add to this a pivot function that rotates the screen 90 degrees, and you have an accommodating and versatile display.

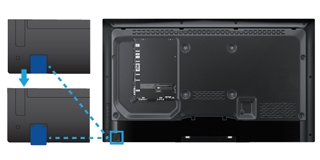

Hidden remote controller receiver
IR (Infra Red) Receiver can be hidden. Function key is located on back, but when the finger touches it, the buttons are shown on the display providing easy user function control.
Various connectivity from analogue to digital
Access a wide range of digital content for a more engaging user experience with our comprehensive connectivity options. Connect PCs and other compatible devices to display the content that is most relevant to your audience.
Display Port interface
The Samsung ME series includes professional Display Port interface enables high performance multi-display control without the need for a distributor over longer distances. (2 times longer than DVI).
Smart scheduling
Keep your display running efficiently at all times. This Samsung LFD boasts a smart scheduling feature. The automatic power on/off function allows you to designate time, day, volume, input source and holiday dates.
Specifications:
Display
| H-Scanning Frequency |
30 ~ 81KHz |
|
| Maximum Pixel Frequency |
148.5MHz |
|
| V-Scanning Frequency |
56 ~ 75Hz |
|
Panel
| Diagonal Size |
190.5cm (75) |
|
| Type |
240Hz LED BLU |
|
| Resolution |
1920 x 1080 (16:9) |
|
| Pixel Pitch(mm) |
0.2865 (H) x 0.8595 (V) |
|
| Active Display Area |
1,650.24 (H) x 928.26 (V) |
|
| Brightness |
550cd/m |
|
| Contrast Ratio (Dynamic) |
5,000:1 |
|
| Viewing Angle(Horizontal/Vertical) |
178/178 |
|
| Response Time (G-to-G) |
4ms (typ.) |
|
| Display Color |
10bit Dithering - 1.07Billion |
|
| Color Gamut |
72% |
|
| Contrast Ratio |
100,000:1 (AV Mode) |
|
| Light Source Type |
LED |
|
Connectivity
| Input |
RGB |
Analog D-SUB, DVI-D, Display Port |
| |
Video |
Component (CVBS Common), HDMI |
| |
Audio |
Stereo mini Jack |
| Output |
RGB |
DVI-D |
| |
Audio |
Stereo mini Jack |
| External Control |
RS232C (in/out) thru stereo jack, RJ45 |
|
| External Sensor |
IR, Ambient Light |
|
Mechanical Specification
| Dimension |
Set Dimension (WxHxD) |
1,678.2 x 958.7 x 49.9mm |
| |
Package Dimension (WxHxD) |
1,863 x 1,173 x 473mm |
| Weight |
Set Weight |
44.1Kg |
| |
Package Weight |
69.7Kg |
| VESA Mount |
400 x 400mm |
|
| Stand Type |
Stand (Optional) |
|
| Media Player Option Type |
PIM (Plug in Module) |
|
Operation
| Operating Temperature |
0C ~ 40C |
|
| Humidity |
10 ~ 80% |
|
General Feature
| Key |
Slim & Light LFD with Built-in MagicInfo Lite |
|
| Special |
Narrow Bezel, Slim Depth, PIM Module, Digital Daisy Chains, Lamp Error Detection, Temperature Sensor, RS232C/RJ45 MDC, Video Wall (10x10), Pivot Display, Smart Scheduling, Built in MagicInfo Lite, Built in Speaker (15 watts + 15 watts), Plug and Play (through USB) |
|
| Internal Player |
Processor |
Cortex-A8 Single Core CPU with NEON DSP |
| |
On-Chip Cache Memory |
L1 (I/D): 32KB/32KB L2 (Unified): 512KB |
| |
Clock Speed |
Up to 800MHz |
| |
Main Memory Interface |
Dual 32bit DDR3-667 (1,333MHz) |
| |
Graphics |
2D & 3D Graphics Engine - Up to 1920 x 1080. 32bpp - Supports OpenGL ES |
| |
Storage (FDM) |
4GB (1.2GB Occupied by O/S, 2.8GB Available) |
| |
Multimedia |
Video Decoder - MPEG-1/2, H.264/AVC (Dual) - VC-1, JPEG, PNG Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc. |
| |
Host Bus |
PCIEx 2.0 |
| |
IO Ports |
USB 2.0 |
| |
Operating System |
Linux |
Power
| Power Supply |
AC 100 - 240V ~ (+/- 10 %), 50/60Hz |
|
| Power Consumption |
Off Mode |
Off mode |
| |
On Mode |
375 (MAX). 280 (Typical) |
| |
Sleep Mode |
Off mode |
| Type |
Internal |
|
Accessory
| Included |
Quick Setup Guide, Warranty Card,Application CD, Power Cord,Remote Controller, Batteries, D-Sub cableRS232C to Stereo Gender in/out Cable |
|
| Optional |
Mount |
WMN4655MD (Landscape Only) |
| |
Stand |
STN-L75D |
Embedded PC
| CPU |
PIM (Optional) |
|
| N/B |
PIM (Optional) |
|
| S/B |
PIM (Optional) |
|
| GPU |
PIM (Optional) |
|
| FDM/HDD |
PIM (Optional) |
|
| Memory |
PIM (Optional) |
|
| Ethernet |
PIM (Optional) |
|
| Connectivity |
USB |
PIM (Optional) |
| |
Output |
PIM (Optional) |
| |
Others |
PIM (Optional) |
Certification
| EMC |
FCC (USA) FCC Part 15, Subpart B class ACE (Europe) EN55022, EN55024VCCI (Japan) V-3 (CISPR22)KCC (Korea): KN22, KN24BSMI (Taiwan): CNS13438 (CISPR22)C-Tick (Australia): AS/NZS3548 (CISPR22) CCC(China): GB 9254-2008, GB 17625.1-2003 |
|
| Safety |
cUL (USA + Canada): UL60950 TUV (Germany): EN60950CB (Europe): IEC60950/EN60950EK (Korea): K60950 CCC (China): GB8898PSB (Singapore ): IEC60950 GOST (Russia ): IEC60950, EN55022 SIQ (Slovenia ): IEC60950, EN55022 PCBC (Poland ): IEC60950, EN55022 NOM (Mexico ): NOM-001-SCFI-1993IRAM (Argentina ): IRAMSASO (Saudi Arabia ): IEC60950 |
|
Features and specifications are subject to change without prior notification.
