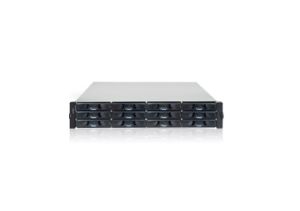

Infortrend EonNAS 3220 Unified Storage System - 2U Rackmount
  • 12 Bay HDD, RAID 0,1(0+1),5,6,10,50,60, 4GB-RAM, VMware, IPv6, iSCSI, 4xGigLAN

IMG 1 of 1
No Longer Available
Part Number:
210832
(?) Brand:
Infortrend Web Site
Manuf No:
EN3220MC
Shipping Weight:
20 KG (Includes product packaging)
Estimate Shipping
Date Added:
22/11/2012
Details Files Finance Images & Video
All stock codes associated to this product
EN3220MC, IF15180

Infortrend ESVA family


EonNAS 3220 (Unified Storage System)

IT environments often include multiple storage infrastructures to accommodate various types of data and achieve different service levels. Scattered boxes for different configurations lead to poor utilization and complicated management. The EonNAS 3220 is a unified storage system that enables SMBs, remote/branch offices or enterprise departments to efficiently deal with file and block-based applications. The EonNAS 3220 provides optimized performance, enterprise-level scalability, strong data protection and maximized resource utilization.

Features Benefits
Performance acceleration by integrating SSDs Enhance performance in a cost-efficient manner
Wide support of file and block storage protocols (CIFS/ SMB, AFP, NFS, HTTP, HTTPS, FTP and iSCSI) Seamlessly consolidate file and block storage for simplified management and efficient resource utilization
User-friendly management tools Minimize management overhead for system deployment, configuration and monitoring
Data protection:
  1. RAID technology
  2. Snapshot
  3. Remote replication
  4. Pool mirror
  5. ZFS end-to-end data integrity
 Support the highest data availability and quick service restart after storage accidents
On-demand capacity scaling up to 120 drives with expansion enclosures "Pay as you grow" scalability; accommodate tomorrows applications while satisfying current needs
Deduplication, thin provisioning and data compression Ensure the most efficient utilization of pooled capacity

Specifications:
Architecture
  1. Processor: Intel Xeon Dual-Core
  2. Memory: 4GB or 8GB DDR3 ECC RAM

* Users can upgrade memory from 4GB to 8GB

  1. Host Connectivity:
    1. Four (4) 1GbE ports (EonNAS 3220)
    2. Eight (8) 1GbE ports (EonNAS 3220-1)
  2. Drive connectivity: Exclusively 6Gb/s SAS
Protocol Support
  1. File Level Protocol:
    1. CIFS/SMB
    2. AFP
    3. NFS
    4. HTTP
    5. HTTPS
    6. FTP
  2. Block Level Protocol:
    1. iSCSI
Supported Drives



300GB, 450GB or 600GB - 3.5" 15,000 RPM 6Gb/s SAS drives
1TB or 2TB - 3.5" 7,200 RPM 6Gb/s Nearline SAS drives
2TB, 3TB or 4TB - 3.5" 7,200 RPM 6Gb/s SATA drives
500GB, 1TB, 1.5TB or 2TB -3.5" 7,200 RPM 3Gb/s SATA drives

* For the latest compatibility details, please contact our sales representatives
Drive Expansion Ports One (1) SAS expansion port
Expansion Enclosure(JBOD) EonStor DS S12S-J2000-G
Max. Drives
  1. Per system: 12
  2. Via JBOD: 120
Server Operating System Support
  1. Windows Server 2003
  2. Windows Server 2008 R2 (Including Hyper-V)
  3. Red Hat
  4. SUSE
  5. Sun Solaris
  6. VMware
  7. Citrix XenDesktop / XenServer
  8. Mac OS X

* For the latest compatibility details, please contact our sales representatives
RAID Level 0, 1(0+1), 5, 6, 10, 50, 60
Data Protection
  1. Snapshot
  2. Remote replication (rsync with 128-bit SSH encryption)
  3. Apple Time Machine
  4. ICAP-based virus scanning support
  5. ZFS end-to-end data integrity
  6. NDMP
System Management
  1. Start-up wizard
  2. Web-based GUI
  3. Real-time system monitoring
  4. Dashboard monitoring
  5. Configurable alerts
  6. Network time protocol
  7. SNMP
  8. UPS management
Capacity Management
  1. Deduplication
  2. Thin provisioning
  3. Data compression
  4. Quota management
  5. Auto capacity expansion
Network Configuration
  1. IPv4 and IPv6 via DHCP
  2. Fixed/dynamic IP address
  3. Port trunking
  4. Fail-over
  5. Jumbo frame
Directory Services
  1. NIS
  2. AD
  3. LDAP
Performance Scaling Read/Write acceleration with two (2) SSDs

Service and Support

(Warranty extension options available)

Standard Service

  1. 3-year limited hardware warranty and 8x5 phone, web and email support

Upgrade/Extension Options

  1. 3-year replacement part dispatch on the next business day
  2. Advanced Service: 3-year 24x7 phone, email and web support + onsite diagnostics on the next business day
  3. Premium Service: 3-year 24x7 phone, email and web support + onsite diagnostics in four hours
  4. Two-year extended warranty option
Environmental
  1. Temperature: 5 to 40C operating / -40 to 60C non-operating
  2. Altitude: Sea level to 3660m (12,000ft) operating / sea level to 12,192m (40,000ft) non-operating
  3. Relative humidity: 5 to 95% non-condensing, operating and non-operating
Dimension
  1. 2U, 19-inch rackmount
  2. 88 mm (H), 650mm (D), 446mm (W)
Power
  1. Power supplies: Dual redundant 550W
  2. AC voltage: 115VAC @ 10A / 230VAC @ 5A with PFC (auto-switching)
  3. Frequency: 47-63 Hz
Weight
  1. System weight without HDDs: 18.58 kg
Package Dimension 906mm (W) x 391mm (H) x 585mm (D)
