All stock codes associated to this product
42089422N, 17OPR390TN

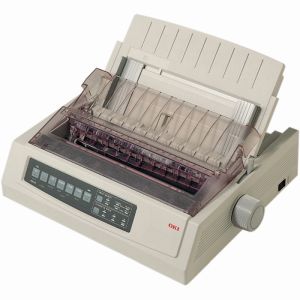

MICROLINE 390 TURBO
Overview
Versatile forms printer with 24 pin print head for improved print quality
- Rugged OKI design
- High quality 24 pin printhead with Oki reliability
- Fast 390 characters per second print speed
- Multi-part paper handling (original + 3 copies)
- 80 column, 10" print width
The Microline 390 Turbo narrow and wide carriage printer is designed for users who require excellent quality and flexibility from a single printer. The Microline 390 Turbo is ideal for volume applications requiring high throughput and flexible changing between various print media. High reliability, ease of use and various in-built barcodes makes this printer the ideal tool for industrial, commercial, service, small business and office environments.
Specifications:
Key specifications
- Number of copies: 4 (original + 3 copies)
- Printing width: 80 characters (10cpi), 160 characters (compressed mode)
- Print speed: Fastest:390cps High speed draft @ 10cpi: 260cps Data/Letter quality @ 10cpi: 260/87cps
Full specifications
Other Specifications
- Frequency: 50/60 Hz
- Voltage requirements: 220/230 VAC
- Warranty: 1 year return to base
- Accoustic noise: 57dBA, 52dBA in quiet-mode
- Weight: 8.4 kg
- Dimensions(HxWxD): 116 x 398 x 345mm,
Paper Handling
- Optional paper handling: Pull tractorfeed Bottom-pushtractor incl. stand and metal tear-off bar Single/Dual bin cut-sheet feeder Roll paper stand(80 column only)
- Standard paper handling: Push-tractor rear-feed Paper park feature Easy tear-off without paper waste Semi-automatic feeding of single sheets
- Paper path 3: Rear-feed: extra flexibility: paper-park for easy switching between continuous forms and single sheets
- Paper path 2: Top-feed: semi-automatic feeding of single sheets or cut sheetfeeder for letterhead
- Paper path 1: Bottom-feed: for specific applications, heavier paper and labels (pull-tractor required)
- Other media: Labels, thickness: max. 0.2mm incl. support
- Paper weight: 45-90 g/m2
- Paper dimensions: 63.5 - 254mm (continuous forms), max 165 x 91mm (continuous envelopes)
- Number of copies: 4 (original + 3 copies)
Printing Characteristics
- Memory: 64 kb
- Built in barcodes: Code 39, UPC-A, UPC-E, EAN 8, EAN 13, Interleaved 2 of 5, ZIP, Code 128
- Font styles: Bold, enhanced, italics, double height, double width, underscored, super- and subscript, outline, shadow
- Character pitch: 10, 12, 15, 17 and 20cpi
- Fonts: Courier, Roman, Swiss, Swiss Bold, Orator, Prestige, Gothic, Utility
- First printable line: 0.5mm from top of page
- Graphic resolution: 360 x 360 dpi (max)
- Printing width: 80 characters (10cpi), 160 characters (compressed mode)
- Print speed: Fastest:390cps High speed draft @ 10cpi: 260cps Data/Letter quality @ 10cpi: 260/87cps
- Printhead: 24 Pin
Reliability
- MTBF: 10,000 hours
- Ribbon life: 2 million draft characters
- Print head life: 200 million draft characters
Interfaces and Emulations
- Optional interface(s): Serial RS 232C V24 Serial RS 422A Current loop 10/100BTx Ethernet Card
- Interface: Centronics parallel & USB
- Emulation: Epson LQ Esc/P2 IBM ProPrinter X24/XL24
