KH1516i
Overview
Cat 5 High-Density KVM Over the NET

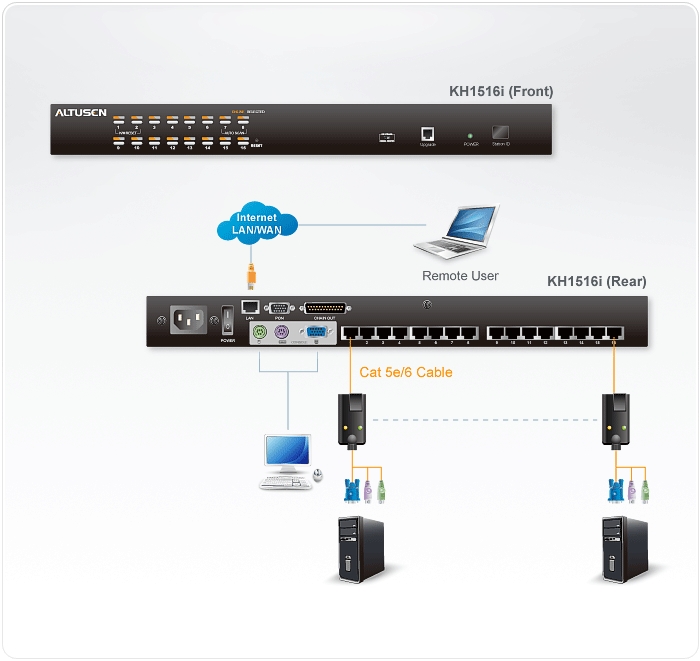

The KH1516i KVM Switche is control unit that allow access to multiple computers from a single KVM console. It uses TCP/IP for its communications protocol, it can be accessed from any computer on the Net - whether that computer is located down the hall, down the street, or half-way around the world.
Compatible KVM Adapter Cables:
KA9520 PS/2 KVM Adapter Cable
KA9570 USB KVM Adapter Cable
KA9130 Sun Legacy KVM Adapter Cable
KA9170 USB KVM Adapter Cable (PC/Mac/Sun)
KA9140 Serial KVM Adapter Module
Patent No.
CN ZL 98252015.8 , DE 29903667.7 , TW 194030 , US 6160543 , CN ZL 02122202.9 , TW 183765 , US 7386584 , US 7640289 , CN ZL 200410031689.0 , TW I237762 , DE 102004019107 , US 7613854 , CN ZL 200410042771.3 , TW I269992 , GB 2412456 , FR 0500514 , US 7584309 , JP 4456936
Package Contents
- 1x Cat 5 High-Density KVM Over the NET
- 1x Power Cord
- 1x Firmware Upgrade Cable
- 1x Rack Mount Kit
- 1x Foot Pad Set(4 pcs.)
- 1x User Instructions
Features:
- 16-port remote access KVM switch - monitor and control up to 16 computers from a single KVM (Keyboard, Video, Mouse) console.
- Remotely access computers via LAN, WAN, or the Internet; control your installation when and where you want.
- Extends the distance between computers and switch - up to 30m for resolutions of 1600 x 1200 @ 60Hz; up to 40m for resolutions of 1280 x 1024 @ 75Hz.
- Internet browser access; Windows client and Java client provided; Java client works with most operating systems.
- No software required - convenient computer selection via port selection switches, hotkeys and intuitive On Screen Display (OSD) menus.
- Supports all major server platforms and VT100 based serial devices.
- Supports multiplatform server environments including PS/2, USB, Sun,and Serial.
- RJ-45 connectors allow a full 16 port implementation - Cat 5e/6 cable reduces cable bulk.
- Dedicated chain ports - daisy chain up to 15 additional units - control up to 256 computers from a single console.
- Extends the distance between computers and switch - up to 40m.
- Up to 64 user accounts - up to 32 concurrent logins.
- Panel Array Mode - view all 16-ports at the same time.
- Message board feature allows logged in users to communicate with each other and allows a user to take exclusive control of the KVM functions.
- Windows-based Log Server.
- Remote power control for attached Power Over the NET devices.
- Advanced security features include password protection and advanced encryption technologies - 1024-bit RSA, 256-bit AES, 56-bit DES, and 128-bit SSL.
- RADIUS server support.
- Firmware upgradeable.
- Network Interfaces: TCP/IP, HTTP, HTTPS, UDP, RADIUS, DHCP, SSL, ARP, DNS, 10Base- T/100Base-TX, auto sense, Ping.
- High video resolution: up to 1600 x 1200 @ 60Hz
- Multiplatform support: Windows 2000/XP/Vista,Linux, Mac, Unix, SUN and FreeBSD.
Specifications:
Computer
Connections |
Direct |
16 |
| Max. |
256 (via Daisy Chain) |
| Port Selection |
OSD;Hotkey;Pushbutton |
| Connectors |
Console Ports |
Keyboard |
1 x Mini Din 6 Female (Purple) |
| Video |
1 x HDB-15 Female (Blue) |
| Mouse |
1 x Mini Din 6 Female (Green) |
| KVM Ports |
16 x RJ-45 Female |
| Daisy Chain Ports |
1 x DB-25 Male (Black) |
| Power |
1 x 3 Prong AC Socket |
| LAN |
1 x RJ-45 Female |
| PON |
1 x DB-9 Male (Black) |
| Switches |
Reset |
1 x Semi-recessed Pushbutton |
| Power |
1 x Rocker |
| Power Selection |
16 x Pushbutton |
| F/W Upgrade |
1 x Slide |
| LEDs |
On Line |
16 (Green) |
| Selected |
16 (Orange) |
| Power |
1 (Blue) |
| Station ID |
2 x 7 Segments (Orange) |
| Link |
1 (Green) |
| 10/100Mbps |
1 (Orange/Green) |
| Emulation |
Keyboard/Mouse |
PS/2; USB (PC/Mac/Sun); Serial |
| Video |
Local |
1600 x 1200@60Hz (30m);
1280 x 1024@75Hz (40m) |
| Remote |
1280 x 1024@75Hz |
| Scan Interval |
1~255 Seconds |
| I/P Rating |
100-240 V AC; 50/60Hz |
| Power Consumption |
120V/12W; 230V/12W |
| Environment |
Operating Temp. |
0-50C |
| Storage Temp. |
-20-60C |
| Humidity |
0-80% RH, Non-condensing |
| Physical Properties |
Housing |
Metal |
| Weight |
2.80 kg |
Dimensions
( L x W x H ) |
43.70 x 16.10 x 4.40 cm (19"/1U) |
