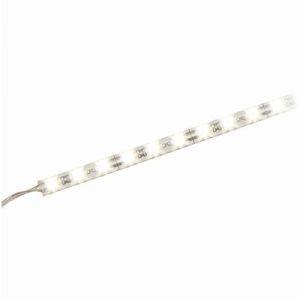

Generic ZD0552 11mm White LED Solid Strip Light, 12V, White

IMG 1 of 1
No Longer Available
Part Number:
217299
(?) Brand:
Generic
Manuf No:
ZD0552
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
1/3/2013
Details Files Images & Video
All stock codes associated to this product
ZD0552, 9319236971604
11mm White LED Solid Strip Light, 12V

ZD0552

An efficient, bright and affordable LED lighting solution, which is safe and easy to install. Each strip features wide angle, high brightness SMD LEDs which are powered by either 12VDC or 24VDC. They are fixed easily using the strong 3M brand self adhesive backing tape or mounted into a range of aluminium and plastic extrusions and diffusers available separately. Each 500mm length can be snapped into individual segments and are powered by either 12VDC or 24VDC. Applications include under cabinet kitchen bench lighting, hallway or mood lighting, marine/caravan/motorhome lighting, commercial strip lighting, retail shop fittouts, and many many more.

Available in 8mm and 11mm widths, 12VDC or 24VDC, and in a choice of warm or cool white

Features:

8mm strips fitted with 3528 single chip SMD LEDs
11mm strips fitted with 5050 tri-chip SMD LEDs
Strips can be snapped into individual segments and powered individually
Strips can be integrated with our aluminium and plastic extrusions and diffusers

ZD-0552 11mm White LED Solid Strip Light, 12V

Cat No. Voltage Colour Current Lumens per strip LED qty No. of Segments mCd per LED View angle Dimensions
ZD0461 12VDC White 200mA 150 30 10 2000 120 500x8mm
ZD0463 12VDC Warm White 200mA 125 30 10 1800 120 500x8mm
ZD0465 24VDC White 100mA 150 30 5 2000 120 500x8mm
ZD0467 24VDc Warm White 100mA 125 30 5 1800 120 500x8mm
ZD0550 12VDC Warm White 500mA 340 30 10 4500 120 500x11mm
ZD0552 12VDC White 500mA 390 30 10 5000 120 500x11mm
ZD0554 24VDC Warm White 200mA 280 25 5 4500 120 500x11mm
ZD0556 24VDC White 200mA 320 25 5 5000 120 500x11mm


No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
