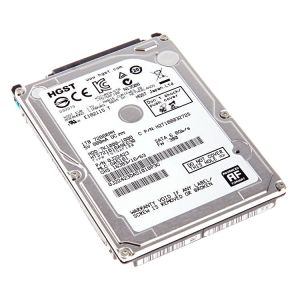

Hitachi 1000GB 7200rpm 2.5" Mobile SATA-III 6Gbps HDD w. 32MB Cache (HTS721010A9E630) Travelstar 7K1000 Series

IMG 1 of 1
No Longer Available
Part Number:
218144
(?) Brand:
Hitachi
Manuf No:
HIT0J22423
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
HIT0J22423, HAH-HIT0J22423

Travelstar 7K1000


1TB

2.5-
INCH MOBILE HARD DRIVE

High Performance – 7200 RPM for faster data access
Massive Capacity – 1TB of storage space
Rugged Design – Best-in-class shock tolerance
Overview

Travelstar 7K1000 is the industrys only seventh-generation 7200 RPM mobile hard drive and ideally suited for notebook PC upgrades and portable, high-capacity personal storage products. At 500GB/platter, this 2.5-inch hard drive offers a 1TB capacity and leverages Advanced Format, which increased the physical sector size from 512 bytes to 4,096 (4K) bytes to improve drive capacities and error correction capabilities. The Travelstar 7K1000 is the industrys first high-performance 1TB 2.5-inch HDD with a 6Gb/s SATA interface and delivers the highest mobile HDD performance in PCMark Vantage benchmark testing.

Specifications:

Model(s) HTS721010A9E630
Interface SATA 6Gb/s
Capacity (GB) 1000 (1TB)
Sector size (variable, Bytes/sector) 512e
Recording zones 30
Max areal density (Gbits/sq. in.) 676
Performance
Data buffer (MB) 32
Rotational Speed (RPM) 7200
Latency Average (ms) 4.2
Media transfer rate (Mbits/sec, max) 1284
Interface transfer rate (MB/sec, max) 600
Seek time: Average (typical)ms(read) 12
Seek time: Track to track (typical)ms(read) 1
Seek time: Full Stroke (typical)ms(read) 20
Reliability
Load/Unload Cycles 600,000
Power on hours (POH) per month N/A
Availability (hrs/day x days/wk) N/A
Acoustics
Idle (Bels) 2.5
Seek (Bels, typical) 2.7
Power
Requirement +5VDC (+-5%)
Requirement: Start-up (W, peak, max) 5.5
Requirement: Read/Write (W, avg) 1.8
Requirement: Low power idle (W, avg) 0.8
Requirement: Standby (W, avg) 0.2
Dissipation: Seek (W, Avg) 2.1
Dissipation: Active Idle (W, Avg) 1.0
Performance Idle 1.7
Sleep (W) 0.1
Physical size
Z-height (mm) 9.5
Dimensions (width x depth, mm) 70 x 100
Weight (g, max) 115
Environmental (operating)
Ambient temperature 0 - 60 C
Shock (half-sine wave) 400G/2ms, 225G/1ms
Environmental (non-operating)
Ambient temperature -40 - 65 C
Shock (half-sine wave) 1000G/1 ms

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.
