All stock codes associated to this product
GXD1081AU, GX-D1081 AU, NWAGXD1081V3, NWA-GX-D1081-V3, 4719543754009
GX-D1081 V3
8-Port 10/100/1000Mbps Desktop Switch with Green Network
- Easy Setup: No software needed for configuration-which makes installations easier and faster.
- Top Priority VIP port: Built-in VIP Ports facilitate lag-free VoIP transmissions by prioritizing voice data traffic.
- Green Network (802.3az EEE): Embedded energy conservation through link down standby mode, save up to 70% power consumption.
Overview
New energy saver Ethernet switch
The new GX-D1081 V3 Switch embedded 802.3az energy efficient ethernet allows the user to conserve energy and still enjoys a lag free network. There is also with one VIP port, top priority port that contains the highest priority queue occupancy that ensures 70% data is transferred to there first. Asus SOHO Gigabit switch, is the best solution for high-Speed, Power-Reducing, benefiting Home/SOHO networking.
Green Network Technology saves up to 70% power comsumption
If the PC that connects to the ASUS GX-D1081 V3's LAN port is turned off, the switch will automatically put the specific port into standby mode, thus, achieving power savings up to 70%.
VIP Port, High Priority outgoing packets are sent without delay
When an insufficient bandwidth causes a queue for outgoing traffic, the ASUS GX-D1081 V3's built-in VIP LAN port ensures that high priority packets, such as a VoIP's RTP & Gaming stream, are sent without delay.

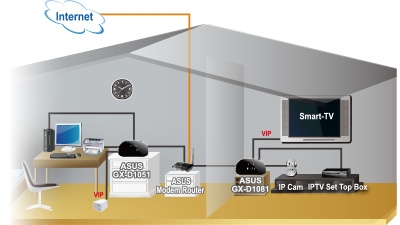

Unmanaged Switch Home/SOHO Solution
Specifications:
Port Attributes
RJ-45 for 8 x 10/100/1000 Mbps Ethernet ports
LAN1 default VIP, Top Priority Port
Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3x Flow Control
IEEE 802.1p Priority Queuing
Performance
MAC Address : Up to 9 K
Forwarding Rate : (10Mbps Port): 14,800packets/sec/(100Mbps Port): 148,800packets/sec/(1000Mbps Port: 1,488,000packets/sec
Switch Fabric : 16Gbps
Buffer Memory : 2048 Kbits
Jumbo Frame : up to 9 KB
LED Indicator
Power LED and Link/Activity indicators for per port
Data Rate
Ethernet: 10Mbps (Half-duplex)
Ethernet: 20Mbps (Full-duplex)
Fast Ethernet: 100Mbps (Half-duplex)
Fast Ethernet: 200Mbps (Full-duplex)
Gigabit Ethernet: 2000Mbps (Full-duplex)
Transmission Method
Store-and-forward
Power Supply
External Adapter: DC 5 V / 1 A switching adaptor
Power Consumption: 5.07 Watts Max.
Environmental
Operating Temperature: 0 C to 40 C (32 F to 104 F)
Storage Temperature: -20 to 70 C (-4 F to 158 F)
Operating Humidity: 10 % to 90 % (Non-condensing)
Storage Humidity: 5 % to 90 % (Non-condensing)
Dimensions
165 x 103 x 34 cm (WxDxH)
Weight
0.216 kg
Safety
CE-LVD/BSMI
EMC
FCC/CE/C-Tick/BSMI
