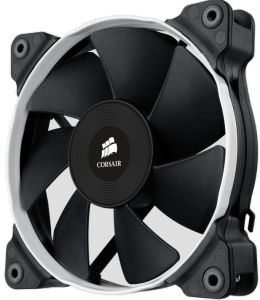

Air Series SP120 PWM Quiet Edition High Static Pressure Fan
SKU# CO-9050011-WW
Overview
An excellent, quiet choice for heatsinks and radiators
The wide body, low-pitch blades of the SP120 fans combined with the custom housing provides outstanding static pressure and airflow through heatsinks or radiators. With rubberized corners, a quiet and reliable Advanced Hydraulic Bearing, and PWM support for increased fan speed control, the SP120 truly is the strong, silent type.
Included in the box are the three user-replaceable colored rings, in red, blue, and white, so you can customize your fan to match your cases components. Each fan also features blacked-out wires and connectors, so your build looks elegant and clean when done. Available in single and twin packs.

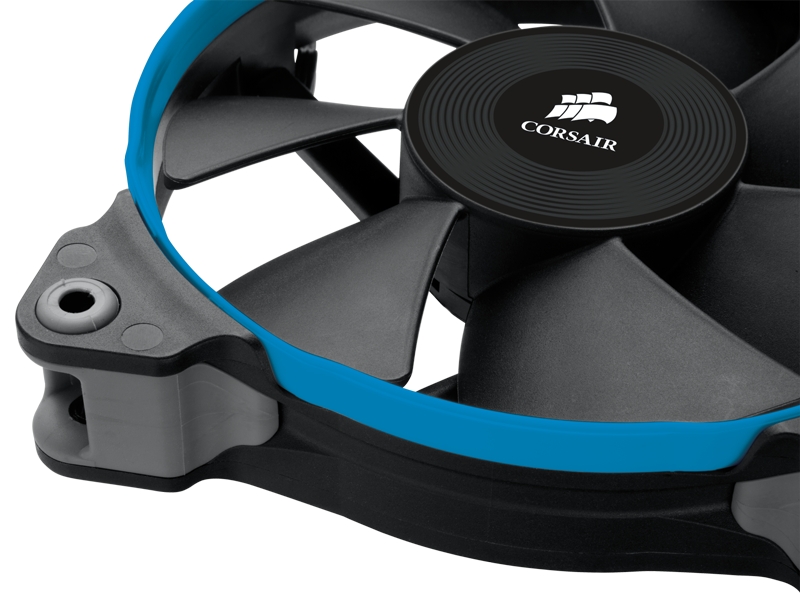

The wide body, low-pitch blades are custom-molded for high static pressure air delivery with low noise, while rubber corners reduce vibration and noise.
Features
- The SP120 Quiet Edition, at full RPM, is an extremely quiet 23dBA while maintaining an impressive 1.29mm/H2O static pressure level.
- 4-PIN PWM Support for increased fan speed control.
- Seven wide body, low-pitch custom blades for optimal static pressure at very low noise levels.
- Custom fan enclosure for ducting air in the right direction with minimal interference.
- Advanced Hydraulic Bearing for reliable, quiet operation.
- Rubberized corners for sound damping when installed with standard screws.
- User-replaceable colored rings so you can match your fans to your case
Performance
| |
SP120 PWM High Performance Edition |
SP120 PWM Quiet Edition |
| Size |
120mm x 25mm |
| Operating Voltage |
7V 12V |
| Performance at 12V |
| Airflow |
62.74 CFM |
37.85 CFM |
| Static Pressure |
3.1 mm/H20 |
1.29 mm/H20 |
| Sound Level |
35 dBA |
23 dBA |
| Speed |
2350 RPM |
1450 RPM |
| Power Draw |
0.18 A |
0.08 A |
Technical Specifications
Package contents
- SP120 PWM Quiet Edition Airflow Fan
- Three colored rings in red, blue, and white.
- Mounting Screws
System requirements
- Motherboard with an open standard 4-pin fan connector
Warranty: Two years
