TS100-E8-PI4

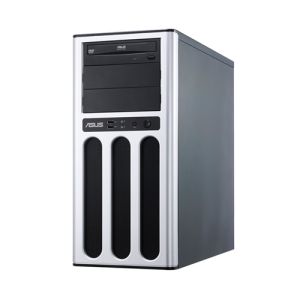

Energy saving and super-quiet tower server perfect for SMB
The ASUS TS100-E8-PI4 is an entry-level tower server supporting the latest Intel Xeon E3-1200 v3 processor family with onboard RAID and complete remote server management through ASWM Enterprise. It also features an 80 PLUS Bronze power supply for enhanced energy savings, and facilitates work environments as quiet as 27dB (idle mode), which is significantly quieter even than the average projector.
Overview
The latest Intel CPUs
The TS100-E8-PI4 is ready for new-generation Intel Xeon 22nm processors, which deliver a significant performance improvement over previous-generation CPUs.
PCI Express 3.0-ready with workstation expandability
The TS100-E8-PI4 ships with one PCI Express 3.0 x16 slot, designed to accommodate the power of graphics cards and other add-on components. To ensure flexibility, it has a PCI slot for legacy LAN card, graphics card, and audio card applications. A dedicated MIO slot provides customers additional audio capability options through ASUS MIO cards.
Ultra-quiet and energy saving
The TS100-E8-PI4 performs as quiet as a low 27dB (under idle mode), which is less than the noise output of a projector (average 42dB). It therefore offers a super-quiet environment, and ships with an 80 PLUS Bronze power supply to reduce power loss and power consumption, helping consumers save on energy bills.
Comprehensive remote management
ASUS presents the most complete remote server control, with ASWM Enterprise providing one on many usage. ASWM Enterprises centralized design gives administrators access to BIOS updates, remote control, and power supervision on all servers simultaneously. IT professionals dont have to monitor servers one by one, but can instead use ASWM Enterprise to check the status of all servers through a friendly graphical user interface.
Specifications
Processor / System Bus
1 x Socket LGA1150
Intel Pentium processors
Intel Celeron processors
Intel Xeon processor E3-1200 v3 product family
4th Gen Intel Core i3 processors
Refer to www.asus.com for CPU Support list
Generation
E8
Core Logic
Intel C222 Chipset
Memory
Total Slots : 4 (2-channel)
Capacity : Maximum up to 32GB UDIMM
Memory Type :
Dual Channel DDR3 1600/1333 UDIMM with ECC
Memory Size :
8GB, 4GB, 2GB UDIMM
Expansion Slots
1 * PCI-E x16 (Gen3 x16 Link)
1 * PCI-E x8 (Gen2 x4 Link)
3 * PCI 32 bit/33 MHz
1 * MIO slot
Storage
SATA Controller :
Intel C222
2 x SATA3 6Gb/s ports
4 x SATA2 3Gb/s ports
Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
HDD Bays
4 * Internal 3.5" HDD Bays
Auxiliary Storage FDD/CD/DVD
3 * 5.25" media bays
(Options: No ODD/DVD-RW)
(DVD-RW default for North America)
Networking
2 x Intel I210AT
Graphic
Aspeed AST1300 with 64MB VRAM
On Board I/O
1 x External Serial Port
2 x RJ-45 ports
2 x USB 3.0 ports (Front x 0, Rear x 2)
4 x USB 2.0 ports (Front x 2, Rear x 2)
1 x VGA port
1 x PS/2 KB/MS port
OS Support
CentOS 5.8/6.3 64-bit
CentOS 5.8/6.2 64-bit
Windows Server 2008 R2 Enterprise
Windows Server 2012
Windows 8 32/64-bit
RedHat Enterprise Linux AS5.8/6.3 64-bit
RedHat Enterprise Linux AS5.8/6.2 64-bit
Ubuntu Desktop 12.04
(Subject to change without any notice)
Management Solution
Software: ASWM Enterprise
Regulatory Compliance
BSMI, CCC, CE, C-Tick, FCC(Class B)
Dimensions
436.8mm x 200mm x 478.8mm
Form Factor
Tower
Weight
15Kg
Power Supply
3 * 5.25" media bays
(Options: No ODD/DVD-RW)
(DVD-RW default for North America)
Environment
Operation temperature: 10 ~ 40 / Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)
