OWC OC-DDMMCL Optical Bay 2.5" Mount Kit - To Suit Mac Mini And iMac

IMG 1 of 1
No Longer Available
Part Number:
229748
(?) Brand:
OWC
Manuf No:
OC-DDMMCL
OCDDMMCL
Shipping Weight:
0.7 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
, OCDDMMCL, OC-DDMMCL

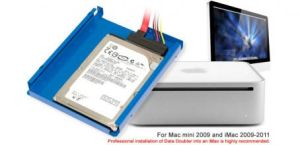

Optical Bay 2.5 Mount Kit - For Mac Mini And iMac


Optical Bay Drive/SSD Mounting Solution

Includes everything needed to replace your optical drive with a second drive or Solid State Drive

Add up to an additional 1.0TB of internal storage. Add a Solid State Drive (SSD) for near instantaneous boot and app load. Even create a RAID array! Includes bracket screws, and detailed installation guide for complete all in one solution.

Configuration flexibility is yours when you replace your Mac mini or iMac's* internal SuperDrive with the OWC Data Doubler. This custom engineered blue anodized aluminum bracket with adapter cable comes ready to mount any 9.5mm tall 2.5" SATA hard disk drive and even Solid State Drives.

Then, just install the entire assembly into a Mac mini or iMac's* 5.25" optical drive bay. OWC Data Doubler makes it easy to custom design how you want your internal storage to
perform. Installed drives are recognized like any other high speed SATA storage device and can be setup and partitioned using the Apple Disk Utility Program.

If you need occasional access to an optical drive, please click here for external optical drives.

Just a few of the configuration options you can enjoy with Data Doubler:

  • Creating an individual volume with its own desktop icon.
  • Combining a new drive with the existing internal drive for one larger volume (SPAN).
  • Combining a new matching drive with existing internal for high-performance RAID-0 Stripe volume.
  • Configuring a new drive as a Time Machine backup drive.
  • Formatting one drive for the Mac OS and the other dedicated for Windows.

Professional installation of Data Doubler into an iMac is highly recommended due to degree of installation difficulty


Includes:

Includes bracket, screws, and detailed installation guide for complete all-in-one kit.


1: OWC Data Doubler Bracket

2: Adapter Cable

3: Screws (4 x Phillips)

4: Detailed Installation Guide (iMac instructions are not provided due to degree of installation difficulty.)

Specifications:

  • Supports: SATA / SATA 3G / SATA 6G Interface 2.5" Drive
  • or SSD (Solid State Drive) of up to 9.5mm (Super Slim) height.
  • Dimensions: 5"(D) x 4"(W) x 0.5"(H) (12.7 x 10.3 x 1.2mm)
  • Weight: 2.3oz. / 0.14lbs.
  • Product Manual: OWC Data Doubler

This product is compatible with....


Mac mini "Early 2009" and "Mid 2009"
Macmini3,1 | 2.26GHz, 2.53GHz, 2.66GHz
Macmini3,1 | 2.26GHz, 2.53GHz, 2.66GHz

iMac 20 "Early 2009" & "Mid 2009"
iMac9,1 | 2.0GHz, 2.66GHz

iMac 21.5 "Late 2009", "Mid 2010", "Mid 2011" and "Late 2011"
iMac10,1 | 3.06GHz, 3.33GHz
iMac11,2 | 3.06GHz, 3.2GHz
iMac12,1 | 2.5GHz, 2.7GHz, 3.1GHz

Mac 24 "Early 2009"
iMac9,1 | 2.66GHz, 2.93GHz, 3.06GHz

iMac 27 "Late 2009", "Mid 2010" and "Mid 2011"
iMac10,1 | 3.06GHz, 3.33GHz
iMac11,1 | 2.66GHz, 2.8GHz
iMac11,3 | 2.8GHz, 3.2GHz
iMac12,2 | 2.7GHz, 3.1GHz, 3.4GHz

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
