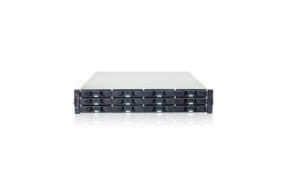

Infortrend EonStor DS S12S-J2000-R Expansion Enclosure - 2U Rackmount
  • 12x SAS/SATA Disk Tray Bay, 4x SAS Expansion Channel, 2x Controller, 2x Cooling Fan, 2x 530

IMG 1 of 1
No Longer Available
Part Number:
231836
(?) Brand:
Infortrend Web Site
Manuf No:
DS S12S-J2000-R
DS S12SJ2000R
Shipping Weight:
19 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
DSS12SJ2000R, DS S12S-J2000-R, IF19530


The ESDS S12S-J2000-R is a 6Gb / s SAS-based expansion enclosure that accommodates 12 SAS drives in a compact 2U form factor and features redundant power supplies and cooling modules. The expansion enclosure allows users to easily attach terabytes of capacity to Infortrend storage systems. The ESDS S12S-J2000-R provides fault-tolerant links across separate SAS domains.

Specifications:


Host Ports

Four 6Gb / s SAS ports
(2 per controller)

Drive Connectivlty

  • 6Gb / s SAS connectivity

  • Accommodates 3.5-inch disk drives

  • Dedicated bandwidth to each connected drive

Supported Drives

Please refer to corresponding RAID systems

Maximum Number of Drives

Per system: 12

Corresponding RAID

Please refer to Related Information

Form Factor

2U

Green Design

  • 80 PLUS-certified power supplies delivering more than 80% energy efficiency

  • Intelligent multi-level drive spin-down

Availability and Reliability

  • Redundant, hot-swappable hardware modules

  • Multi-pathing support (EonPath)

  • Device mapper support

Notification

Various event notification methods including email, LAN broadcast, fax, SNMP traps, SMS, and Skype.

Service and Support

All EonStor DS systems are shipped with 3-year Standard Service

  • Standard service:
    - Hardware warranty
    - Software update; 8x5 phone, web and email support

  • Upgrade / Extension service *:
    Replacement part dispatch on the next business day (up to 5 years)
    - Advanced Service: 24x7 phone, web and email support + onsite diagnostics on the next business day
    - Premium Service: 24x7 phone, web and email support + onsite diagnostics in 4 hours

* Optional
** Service may vary by region

Power

  • Power supplies: Two 530W DC

  • AC voltage: 100VAC @ 10A to 240VAC @ 5A with PFC (auto-switching)

  • Frequency: 47-63 Hz

Environmental

  • Temperature: 0 to 40 C operating / -40 to 60 C non-operating

  • Altitude: Sea level to 3660m (12,000 ft) operating / sea level to 12,192 m (40,000 ft) non-operating

  • Relative humidity: 5 to 95% non-condensing, operating and non-operating

Dimensions

Without chassis ears / protrusions:
440mm (W) x 90mm (H) x 500mm (D)

Weight

Without HDDs: 18.10kg (39.90lbs)

Package Dimensions

779mm (W) x 642mm (H) x 597mm (D)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Infortrend) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
