SMS200S3/30G
SSD Now mS200
Save space, time and money.
Kingstons SSD Now

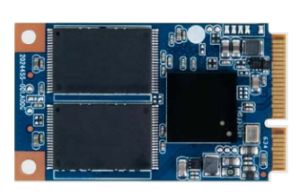

mS200 mSATA solid-state drive offers a cost-effective performance boost with a dual-drive option that allows room for adding high-capacity storage. Ideal for system builders, OEMs and enthusiasts, the mS200s ruggedly-cool, miniscule form factor is eight times smaller than a traditional 2.5-inch hard drive, making it perfect for notebooks, tablets and Ultrabooks. mS200 is available in capacities of up to 120GB and features a caseless, PCB-only design with no moving parts. Its backed by a three-year warranty (the 30GB offers a two-year warranty), free technical support and legendary Kingston reliability.
- Takes up to 8x less space than a standard 2.5-inch hard drive
- Great as a boot/cache drive
- Latest generation mSATA interface SATA Rev. 3.0 (6Gb/s)
SSD Now mS200 is great for:
- Small, purpose-built industrial systems
- Replacing compact Flash-based solutions
- Media centre PCs with limited drive bays
- Cost-effective boot drive for system builders
- Notebook upgrades (with mSATA port)
- Notebook dual-drive configurations (mSATA SSD + HDD)
FEATURES/BENEFITS
- LSI SandForce 2241 controller with SATA Rev. 3.0 (6Gb/s) interface twice as fast as the previous generation, yet more cost-efficient
- mSATA interface fully compliant with industry standard, easy to fit, guaranteed to work
- NAND Flash memory based shock-resistant with low power consumption
- Supports Intels SRT combines capacity advantage of HDD with performance improvements of SSD in dual-storage configuration
- Supports SMART monitors the status of your drive Supports TRIM maintains maximum performance on compatible operating systems
- Guaranteed three-year warranty (two-year warranty on 30GB), free technical support
SPECIFICATIONS
- Form factor: mSATA
- Interface: SATA Rev. 3.0 (6Gb/s), SATA Rev. 2.0 (3Gb/s), SATA Rev. 1.0 (1.5Gb/s)
- Capacities: 30GB, 60GB, 120GB
- Controller: SandForce-SF2241
- Encryption: AES 128bit
- Sequential read/write: 30GB 550 MB/s / 510MB/s, 60GB, 120GB 550 MB/s / 520MB/s
- Maximum 4k read/write: 30GB up to 86,000/ up to 77,000 IOPS, 60GB up to 86,000/ up to 79,000 IOPS, 120GB up to 86,000/ up to 48,000 IOPS
- Random 4k read/write: 30GB up to: 7,500/71,000 IOPS, 60GB up to: 14,000/77,000 IOPS, 120GB up to: 17,000/45,000 IOPS
- PCMARK Vantage HDD Suite score: 60,000
- Power consumption: 0.4W idle / 1.2 (TYP) read / 1.8W (TYP) write
- Storage temperature: -40C ~ 85C
- Operating temperature: 0C ~ 70C
- Dimensions: 50.88mm x 30mm
- Weight: 6.86g
- TRIM: Supported
- Vibration operating: 2.17G
- Vibration non-operating: 20G
- MTTF: 1,000,000 hrs
- Warranty/support: 30GB two-year warranty with free technical support, 60GB, 120GB three-year warranty with free technical support
- Total Bytes Written (TBW): 30GB: 23TB, 60GB: 46.5TB, 120GB: 93TB
