All stock codes associated to this product
681840B21, 681840-B21, 2376831, 886112594428

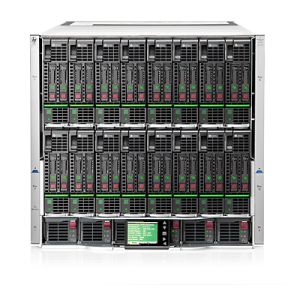

HP BLc7000 Platinum Enclosure w/ 1 Phase 2 Power Supplies 4 Fans ROHS Trial Insight Control License
681840-B21
Description
The BladeSystem c7000 enclosure provides all the power, cooling, and I/O infrastructure needed to support modular server, interconnect, and storage components today and throughout the next several years. The enclosure is 10U high and holds up to 16 server and/or storage blades plus optional redundant network and storage interconnect modules. It includes a shared, 5 Tbps high-speed NonStop mid-plane for wire-once connectivity of server blades to network and shared storage. Power is delivered through a pooled-power backplane, and power input flexibility is provided with choices of single-phase, 3-Phase AC input, and -48V DC input.
- Extending the foundation for Converged Infrastructure.
The HP BladeSystem c7000 Enclosure goes beyond just Blade servers. It consolidates server, storage, networking and power management into a single solution that can be managed as a unified environment. With demanding workloads, the increased power supply wattage and mid-plane bandwidth aligned with Intelligent Infrastructure technologies such as Platinum Power Supplies, Intelligent Power Module, and Location Discovery Services have enhanced the foundation for converged infrastructure. HP Insight Control unlocks the advanced management capabilities built into HP ProLiant servers, allowing you to proactively manage their physical and virtual health. With Onboard Administrator, iLO remote management, and HP Insight Control you can manage your servers and take complete control regardless of the state of the server operating system.
| BladeSystem supported |
HP ProLiant, Integrity and Storage blades in either mixed or homogenous configurations |
| Environmental Compliance |
No |
| Form Factor |
8 Full Height Blades/16 Half-Height Blades; Mixed configurations supported |
| Management features |
Insight Control (IC) software License |
| Power Availability |
2400W (2) 1 phase Platinum power supply kits |
| Product dimensions (W x D x H) |
29.88 x 23.88 x 39.88 in |
| Weight ( Imperial ) |
265 lb |
| Weight ( Metric ) |
120.204 kg |
|
Technical Information
| Number of Fans Supported |
10 |
| Number of Fans Installed |
4 |
|
Bays
| Number of Total Expansion Bays |
16 |
|
Power Description
| Input Voltage |
110 V AC
220 V AC |
| Number of Power Supplies Supported |
6 |
| Number of Power Supplies Installed |
2 |
| Power Supply Wattage |
2.40 kW |
| Redundant Power Supply |
Yes |
|
Physical Characteristics
| Form Factor |
Rack-mountable |
| Weight (Approximate) |
265 lb |
| Height |
39.9" |
| Width |
29.9" |
| Depth |
23.9" |
|
Miscellaneous
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
|
