Aten VanCryst 4 Port VGA Video Switch with Audio and RS232 Control

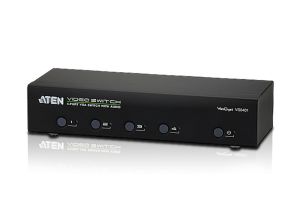

ATEN VS0401 4-Port VGA Switch with Audio

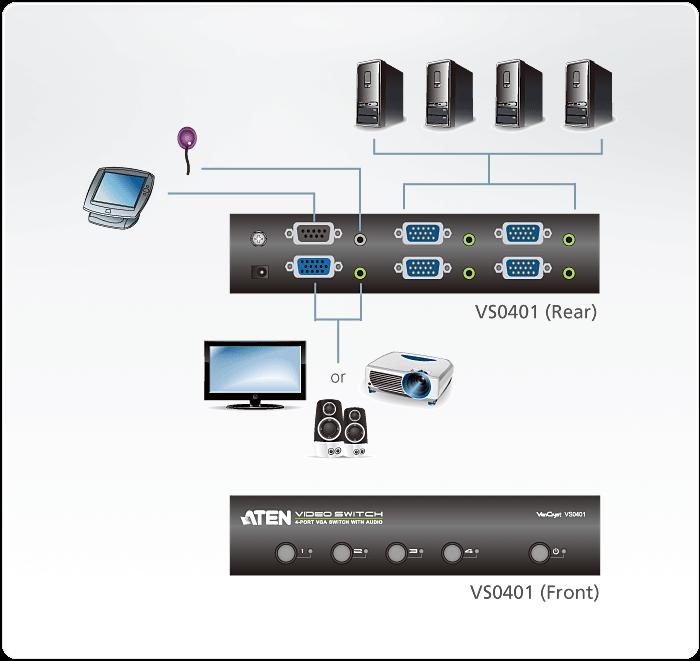

The VS0401 4-Port VGA Switch with Audio allows you to connect four audio/video source computers to a single monitor or projector with full audio and quickly switch between the devices for use.
VS0401 built-in bi-directional RS-232 serial port for high-end system control, and advanced RS-232 control. With the ability to use high-end serial control devices via RS-232 commands allows the VS0401 to be controlled by secondary systems with advanced functions such as; port switching, auto switching, front panel pushbutton lock, and Power on Detection.
The VS0401 is perfect for the meeting room, media centers, class rooms, or any presentation environment requiring multiple audio/video sources to be accessed on a single display.
Features
- Displays the video output of four computers on a single monitor or projector
- Quick and easy switching between VGA/Audio sources via front panel pushbuttons, RS-232, or IR remote control
- Superior video quality up to 1920 x 1440
- Long-distance transmission up to 65 m*
- Supports VGA, SVGA, UXGA, WUXGA and multisync monitors
- Video DynaSync Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Built-in bi-directional RS-232 serial port for high-end system control **
- RS-232 Control:
Power On Detection if one VGA source is powered off, the VS0401 will automatically switch to the next powered-on
source
Auto Switching sets the priority for auto switching to a connected port
Pushbutton Lock locks use of the front panel pushbuttons
- Supports stereo audio
- DDC compatible
- Supports up to 300MHz bandwidth for optimal video quality
- LED indication of power status and source device
- All-metal casing provides durability and protection
- Plug-and-play no software installation required
*Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.
** Note: The VS0401 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
Specifications
| Display Connections |
4 |
| Connectors |
Input |
Video |
4 x HDB-15 Male (Blue) |
| Audio |
4 x Mini Stereo Jack Female (Green) |
| Output |
Video |
1 x HDB-15 Female (Blue) |
| Audio |
1 x Mini Stereo Jack Female (Green) |
| RS-232 Port |
1 x DB-9 Female (Black) |
| IR Input port |
1 x Mini Stereo Jack Female (Black) |
| Power |
1 x DC Jack |
| Switches |
Port Selection |
4 x Pushbuttons |
| Power |
1 x Pushbuttons |
| LEDs |
Selected |
4 (Green) |
| Power |
1 (Green / Orange) |
| Video |
1920 x 1440 at 30 m
1280 x 1024 at 65 m |
| Power Consumption |
DC5.3V, 0.55W |
| Environment |
Operating Temp. |
0-50C |
| Storage Temp. |
-20-60C |
| Humidity |
080% RH, Non-condensing |
Physical
Properties |
Housing |
Metal |
| Weight |
0.66 kg |
Dimensions
(L x W x H) |
20.00 x 7.61 x 4.40 cm |
