All stock codes associated to this product
B65, 30ACB65
B65

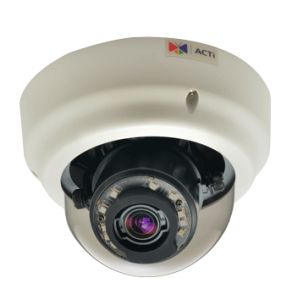

2MP Indoor Zoom Dome with D/N, Adaptive IR, Basic WDR, SLLS, 3x Zoom lens
Main Features
2 Megapixel with 1080p
Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
3x Zoom Lens with f3-9mm/F1.2-2.1, DC iris, Auto Focus
Basic WDR (72 dB)
30 fps at 1920 x 1080
Vandal Resistant (IK09)
PRODUCT SPECIFICATION
Device
Device Type: Indoor Zoom Dome Camera
Image Sensor: Progressive Scan CMOS
Sensor Size: 1/2.8''
Day / Night: Yes
Superior Low Light Sensitvity: Yes
Minimum Illumination: Color: 0.1 lux at F1.2 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
Mechanical IR Cut Filter: Yes
IR Sensitivity Range: 700 - 1100nm
IR LED: Auto Adaptive IR LED x 10 (850nm)
IR Working Distance: 20 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
Electronic Shutter: 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
Lens
Focal Length / Aperture: Zoom, f3 - 9 mm / F1.2 - 2.1
Zoom Ratio: 3x optical
Iris: DC iris
Focus: Auto focus
Lens Mount: Board mount
Horizontal Viewing Angle: 103.6°~36.2°
Viewing Angle Adjustment: Pan: 0° - 350°; Tilt: 5° - 170° ; Rotate: 0- 350°
Video
Compression: H.264 HP, MJPEG
Max. Frame Rate vs. Resolution: 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480: 15 fps 320 x 240
Multi-Streaming: Simultaneous dual streams based on two configurations
Bit Rate: 28 Kbps - 6 Mbps (per stream)
Bit Rate Mode: Constant, Variable
Image Enhancement: Basic WDR (72 dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless
Text Overlay: User defined text on video
Image Orientation: Image flip and mirror
Audio
Compression: 8kHz, Mono, PCM, 16 bit encoding, G.711
Audio-In: Terminal block
Audio-Out: Terminal block
Network
Protocol & Service: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Ethernet Port: 1, Ethernet (10/100 Base-T), RJ-45 connector
Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
Alarm
Alarm Trigger: Video motion detection (3 regions); External device through digital input
Alarm Response: Notify control Center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, Snapshot to FTP server; Activate external device through digital output
Interface
Digital Input: 2, Terminal block
Digital Output: 2, Terminal block
Local Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
General
Power Source / Consumption: PoE Class 3 IEEE802.3af/ 5.28W; DC 12V/ 4.56W
Weight: 715 g (1.58 lb)
Dimensions (Ø x H): 146 mm x 107 mm (5.7'' x 4.2'' )
Environmental Casing: Vandal resistant (IK09), Transparent dome cover
Mount Type: Surface, Pendant, Wall, Corner, Pole, Flush, Gang box
Starting Temperature: -10 °C ~ 50 °C (14 °F ~ 122 °F)
Operating Temperature: -10 °C ~ 50 °C (14 °F ~ 122 °F)
Operating Humidity: 10% ~ 85% RH
Approvals: CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B); IK09
Integration
Unified Solution: Fully compatible with ACTi software
ISV Integration: Software Development Kit (SDK) available ; ONVIF compliant
Firmware Access Browser: Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with QuickTime installed (partial functionality
