B55

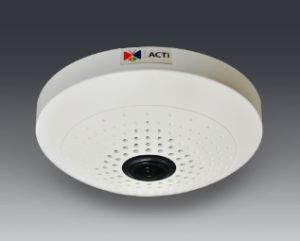

10MP Indoor Fisheye Dome with D/N, Basic WDR, Fixed Lens
- 10 Megapixel
- Day & Night
- Hemispheric Fisheye Lens with f1.37mm / F2.0
- Basic WDR (65.2 dB)
- 6 fps at 3648 x 2736
PRODUCT SPECIFICATION
Device
Product Type: Indoor Fisheye Dome
Image Sensor: Progressive Scan CMOS
Sensor Size: 1/2.3"
Day / Night: Yes
Superior Low Light Sensitvity: No
Minimum Illumination: Color: 0.1 lux at F2.0 (30 IRE, 2400K); B/W: 0.05 lux at F2.0 (30 IRE, 2400K)
Color to B/W Switch: ISP based switch, configurable
Mechanical IR Cut Filter: Yes
IR Sensitivity Range: 700- 1100nm
IR LED: No
Electronic Shutter: 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
Lens
Focal Length / Aperture: Fixed (Fisheye lens), f1.37 mm / F2.0
Iris: Fixed iris
Focus: Fixed Focus
Mount Type: Board Mount
Horizontal Viewing Angle: 180°(overview area), 109.8° (high detail area)
Video
Compression: H.264, MJPEG
Max. Frame Rate vs. Resolution: 6 fps at 3648 x 2736; 6 fps at 2592 x 1944; 6 fps at 2048 x 1536; 6 fps at 640 x 480; 6 fps 320 x 240
Mode: Fisheye view, 180° /360° Panorama, ePTZ
Multi-Streaming: Simultaneous dual steams based on two configurations
Bit Rate: 28 Kbps - 6 Mbps (per stream)
Bit Rate Mode: Constant, Variable
Image Enhancement: Basic WDR (65.2 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Automatic gain control; Digital noise reduction; Flickerless
Privacy Mask: 4 configurable regions
Text Overlay: User defined text on video
Image Orientation: Image flip and mirror
Audio
Compression: 8 kHz, Mono, PCM, 16 bit encoding; G.711
Audio-In: Cable with 3.5mm phone jack
Audio-Out: Cable with 3.5mm phone jack
Network
Protocol & Service: TCP,UDP,HTTP,HTTPS,DHCP,PPPoE,RTP,RTSP,IPv6,DNS,DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Ethernet Port: 1, Ethernet (10/100 Base-T), RJ-45 connector
Security: IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control
Alarm
Alarm Trigger: Video motion detection (3 regions); External device through digital input
Alarm Response: Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, Snapshot to FTP server; Activate external device through digital output
Interface
Digital Input: 1, Terminal block
Digital Output: 1, Terminal block
Local Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
General
Power Source / Consumption: PoE Class 2 (IEEE 802.3af) / 4 W; DC 12V / 3.4 W
Weight: 342 g (0.75 lb)
Dimensions ( x H): 150mm x 47mm (5.91" x 1.83")
Mount Type: Surface, Pendant, Wall, Corner, Pole, Flush, Gang box
Starting Temperature: -10 C - 50C (14F - 122F)
Operating Temperature: -10 C - 50C (14F - 122F)
Operating Humidity: 10% ~ 85% RH
Approvals: CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)
Integration
Unified Solution: Fully compatible with ACTi software
ISV Integration: Software Development Kit (SDK) available ; ONVIF compliant
Firmware Access Browser: Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with QuickTime installed (partial unctionality)
