Snap-In Disk Array PRO

AESN5DA35-A

Overview

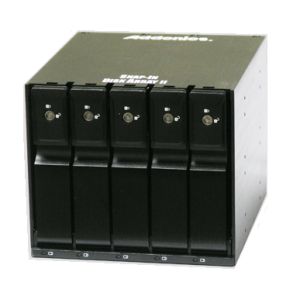

The Snap-In Disk Array PRO is the latest enhanced removable drive system that enable installing as many as five 3.5" hard drives into three 5.25" drive bays on any Desktop PC, Tower or 4U Rack mount system. Constructed in light weight and precision machined aluminum, this Disk Array offers a sturdier frame, more precise mechanical fitness and better heat dissipation. similar to other Addonics Snap-In removable drive system, the hard drive can be added by simply sliding the hard drive into one of the drives slots and closing the drive door, just like using a VHS cassette. To remove the hard drive, simply open the drive door and the hard drive will automatically be ejected.

The Snap-In Disk Array PRO also increases the number of hard drives that can be installed into systems or storage chassis such as the Addonics family of Storage Towers. Together, with Addonics Port Multipliers, you can create a powerful RAID storage with large storage capacity, drive redundancy for reliability and high performance in a compact 3-bay drive enclosure like the Addonics Storage Tower III.

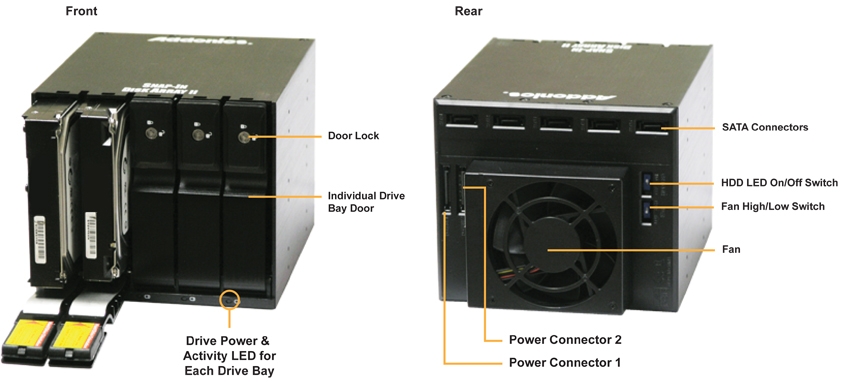

Features

  • Install up to five 3.5" SATA or SAS hard drives into three 5 1/4" drive bay stack*
  • Drive is added and removed directly from the Disk Array without any tool
  • Point to point connection
  • High throughput up to 600 MB/sec with SATA 3.0 or SAS 2.0 drive
  • Full Serial ATA 1.0, 2.0, 3.0, SAS 1.0 and 2.0 compliant
  • Sturdy, light weight and precision machined aluminum construction
  • Optional 2.5" drive adapter (model: AE25SN35SA)
  • One high CFM and low noise cooling fans
  • Can be used as an external RAID system (requires optional external power adapters, model: AASAPS)
  • Hot swap support when connects to SATA port with this feature
  • Power and drive activity LED for each hard drive slot

While the Snap-In Disk Array is capable of fitting into three 5 1/4" drive bay stack on a desktop tower, support tabs inside the drive bay on some of the computer chassis may cause possible obstruction for the installation of the Snap-In Disk Array. Most of these tabs can be bent to clear the obstruction.

Specifications


Interface
SATA/SAS
Construction material
Precison machined aluminum frame
Hard drive type
SATA/SAS, SATA/SAS II or SATA/SAS III
Number of drives
Maximum five 3.5" SATA hard drives or
five 2.5" SATA hard drives using optional 2.5" - 3.5" drive adapter (model: AE25SN25SA)

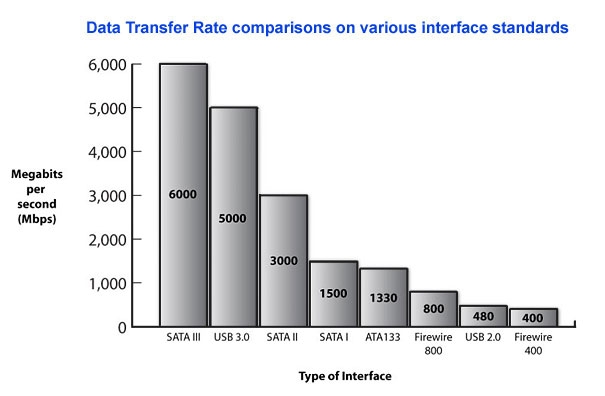

MAX Data Transfer Rate
  • 150 Mbytes/sec when connect to SATA port
  • 300 Mbytes/sec when connect to SATA II / SAS port
  • 600 Mbytes/sec when connect to SATA III / SAS II port
Power connection
Two 15-pin SATA power connectors
Serial ATA connection
5 SATA/SAS connectors
LED's
  • for Power to the main unit
  • for Power and drive activity to each hard drive
Lock
For each hard drive slot
Hard Drive connection
Point to point, no cable required for installing hard drive
Cooling system
One 80 x 80 mm cooling fans
Weight (with no hard drive)
~ 2.5 lb (1.13 Kg)
Dimensions (L x W x H)
~ 7.6 x 5.73 x 5 inch (193 x 146 x 126 mm)
Operating temperature and
humidity
0 - 60 C , 0 - 95% RH (non condensing)
Storage temperature and
humidity
-20 - 70 C, 0 - 90% RH
Warranty
One Year





System requirement

  • PC/AT or Compatible System
  • SATA or SAS port
  • Three free 5 1/4" drive bays in one stack
  • Pentium or greater
  • Minimum 32 MB RAM
  • 10 MB minimum free hard disk space
