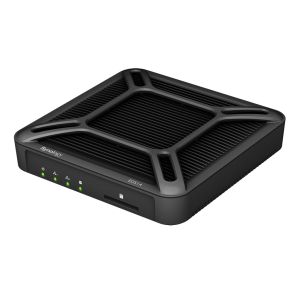

EDS14


Palm-Sized NAS Server for Rigorous Environments

Synology  Embedded DataStation EDS14 is a state-of-the-art palm-sized NAS server. Combining portability with endurance, EDS14 allows you to implement Synologys advanced network storage solutions in a wide range of physical locations. Synology EDS14 is backed with Synologys 3-year limited warranty.

  • Industrial thermal endurance level from -20C to 50C (-4F to 122F)
  • Dual LAN ensuring versatile deployment & network uptime
  • Plug-n-Play USB 3.0 & High Speed SDXC UHS-I SD storage
  • Up to 111.94 MB/s reading & 50.58 MB/s writing with USB 3.0
  • Up to 77.81 MB/s reading & 45.4 MB/s writing with SDXC
  • DC power output for peripheral devices
  • Ready-to-use right out of the box
  • Running on Synology DiskStation Manager (DSM 4.3)

Overview

Hardware Excellence


As the embodiment of Synologys refined hardware craftsmanship, EDS14 features a compact and portable body, fan-less and drive-less design, and advanced network storage functionality, without sacrificing system reliability or quality of service. Synology EDS14 boasts exceptional durability in challenging thermal environments without the ventilation of a fan. The dynamic cooling mechanism specifically programmed for EDS14 guarantees system uptime and CPU health even at surrounding temperatures as high as 50C. Despite its small size, EDS14 is powered by an 1.2GHz CPU and 512MB of RAM, ensuring both computing and multi-tasking capabilities. For a model dependent upon external drives, EDS14 delivers remarkable read/write performance - up to 111.94 MB/sec reading with USB 3.0 drive in a Windows  environment, and 50,58 MB/sec writing.1

The advanced hardware design of the EDS14 accommodates two LAN ports, one SD card reader, one USB 3.0 and one USB 2.0 interface - all inside a 125 x 125 x 31 mm enclosure. EDS14 supports the the latest external storage interface - USB 3.0 and SDXC/UHS-I, maximizing system availability with both speed and capacity.

Unparalleled Versatility

With its compact physical size, EDS14 is the most versatile NAS server in Synologys product line and has been optimized for deployment in a variety of environments. Apart from the increased thermal endurance range, EDS14 tolerates dynamic DC input voltage from 7 to 24V, making it compatible with a variety of power sources such as cigarette lighter receptacle in an automobile. A schedulable DC output up to 1A is available to power an external device where power outlet is out of reach. Peripheral devices can be powered on, off, or reset remotely according to a schedule using DiskStation Managers management interface (available from DSM 5.0). Support for mobile network (3G or 4G modems required) brings EDS14 farther into remote locations. Equipped with two LAN ports, EDS14 protects local network tasks and Internet connection from mutual interference. With the support for PoE splitters, EDS14 is also ideal for deployment in a PoE environment.

Cloud-Ready NVR


EDS14 has been specifically designed to run Synology Surveillance Station, a cutting-edge NVR solution with rich features that meet the most demanding enterprise surveillance requirements. In addition to its intuitive setup and hassle-free interface, Surveillance Station features an optimized live view experience with on-screen operations, smart analytics tools like motion detection, and an alert system that sends instant notification through SMS, e-mail, Skype, and DS cam. Synology works diligently to integrate all types of IP cameras on the market and currently supports over 2,400 IP camera models.

QuickConnect and Mobile Access


QuickConnect is one of Synologys most prided services. In scenarios where port-forwarding rules cannot be applied, QuickConnect offers direct remote access to your files in EDS14 without complicated router configurations. With DS cam, a dedicated app available for Android and iOS devices, users can view IP cameras live, receive event notifications and access history recordings on demand. Synology also provides mobile applications that allow you to enjoy the full variety of your multimedia library even when on the go. You can stream your private albums, music and video collection from home, on the EDS14. Available on iOS, Android  and Windows Phone platforms, DS photo+, DS audio, and DS video mobilize your Photo Station, Audio Station and Video Station, placing terabytes of content at your fingertips.

Windows + Mac + Linux Cross Platform File Sharing


Synology EDS14 offers comprehensive network protocol support, assuring seamless file sharing across Windows, Mac , and Linux  platforms. Internet file access is simplified by the encrypted FTP server and the web-based file explorer, Synology File Station. HTTPS, firewall, and IP auto-block support ensure file sharing over the Internet is protected at a high security level.
For users who are always on the move, Synology provides a handy app, DS file, for popular mobile devices such as iPhone , iPad , Android devices and Windows Phone. Anything stored on Synology EDS14 can now be accessed remotely using DS file.

Energy Efficient with Cool and Quiet Design


All Synology NAS is designed with energy efficiency in mind. Not only does EDS14 come with Synologys smart cooling technology to keep the system running cool 24/7, its noise dampening design makes it really quiet. All Synology products are produced with RoHS compliant parts and packed with recyclable packing materials. Synology acknowledges the responsibility as a global citizen to continually work to reduce the environmental impact of every product produced.

Specifications

Hardware Specifications
CPU
CPU Model Marvell Armada 370
CPU Frequency 1.2 GHz
Floating Point
Hardware Encryption Engine
Memory
System Memory 512 MB DDR3
External Ports
USB 2.0 Port 1
USB 3.0 Port 1
SD Card Reader
File System
External Drives
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+ (Read Only, with max. volume size 2TB)
Appearance
Size (Height X Width X Depth) 31 mm X 125 mm X 125 mm
Weight 0.295 kg
Others
LAN Number (RJ45) Gigabit X 2
Link Aggregation
Wireless Support (dongle)
Power Supply Unit / Adapter 24W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 HZ, Single Phase
Power Consumption 8.66W (Access)
7.12W (Idle)
Dynamic DC Input 7-24V
DC Output 1A
Temperature
Operating Temperature -20C to 50C (-4F to 122F)
Adapter Operating Temperature 0C to 50C (32F to 122F)
Storage Temperature -20C to 60C (-5F to 140F)
Relative Humidity 5% to 95% RH
Maximum Operating Altitude 6500 feet
Certification
  • FCC Class B
  • CE Class B
  • BSMI Class B
Warranty 3 Years

Notes

  • Access power consumption is measured when loaded with Adata SDHC 8GB Class 10 SD card. Idle power consumption is measured with one LAN connected.
DSM Specifications (See more)
Storage Management
Max File System Size 16 TB
File Sharing Capacity
Max User Accounts 128
Max Groups 64
Max Shared Folder 32
Max Shared Folder Sync Tasks 2
Max Concurrent CIFS/AFP/FTP Connections 128
Windows Access Control List (ACL) Integration

Notes

  • Performance figures could vary on different environments.
  • The Max File System size (or the Max Volume size) doesn't equal to the Max Internal Capacity, which is limited by the aggregated space of installed drives.
Add-on Packages (See more)
Audio Station
Cloud Station
Maximum Concurrent File Transfers 128
DHCP Server
DNS Server
Download Station
Maximum Concurrent Download Tasks 50
Glacier Backup
HiDrive Backup
iTunes Server
Media Server
DLNA Certification
Photo Station
Surveillance Station
Max IP cam (Licenses required) 5 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264) 150 FPS @ 720p (1280x800)
60 FPS @ 1080p (19201080)
40 FPS @ 3M (2048x1536)
30 FPS @ 5M (2591x1944)
Total FPS (MJPEG) 90 FPS @ 720p (1280x800)
54 FPS @ 1080p (19201080)
36 FPS @ 3M (2048x1536)
20 FPS @ 5M (2591x1944)
Video Station
Video Transcoding Group 2 (See more)
VPN Server
3rd Party Packages (See more)

Notes

  • Surveillance Station throughput is tested with Axis M1011 (640X480) and Axis M1054 (1280X800); FPS set to 10 at every channel; Compression rate: 30%; Video Codec: MJPEG, MPEG4 (640X480 only), H.264; Recording Type is conducted with Motion Detection Recording (By Surveillance Station) and Continuous Recording; Actual performance may vary depending on camera settings and DiskStation loading.
  • When EDS14 works in an environment over 38C, maximum IP camera will be lowered to 2 for the protection of your device. FPS information in H.264: 2 Ch @ 720P @ 60 FPS; 2 Ch @ 1080P @ 20 FPS; 1 Ch @ 3M @ 10; FPS; 1 Ch @ 5M @ 10 FPS. FPS information in MJPEG: 1 Ch @ 720P @ 20 FPS; 1 Ch @ 1080P @ 10 FPS; 1 Ch @ 3M @ 8 FPS; 1 Ch @ 5M @ 5 FPS
Environment & Packaging

Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Welcome Note X 1
  • AC Power Adapter X 1
  • RJ-45 LAN Cable X 1
Optional Accessories
  • Remote
  • Camera License Pack
