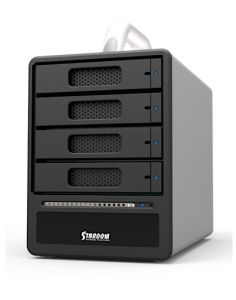

Stardom ST4-SB3 SOHOTANK
  • 4x2.5/3.5" SATA-III HDD/SSD, 4xIndependent (JBOD), 80mm Fan, eSATA, USB3.0

IMG 1 of 2
No Longer Available
Part Number:
365858
(?) Brand:
Stardom
Manuf No:
ST4-SB3
ST4SB3
Shipping Weight:
5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
, ST4SB3, ST4-SB3
SOHOTANK

ST4-SB3

Up to 24TB capacity expansion.

Especially suitable for video editing.

The SATA hard disk drive with the highest cost-benefit ratio

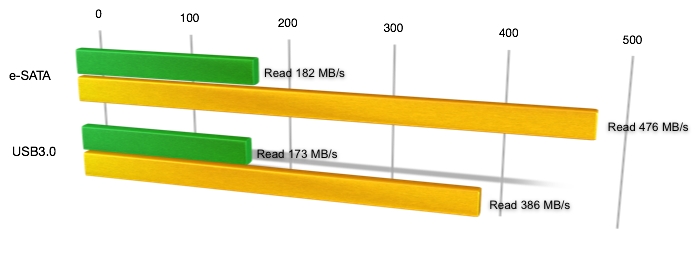

The ST4-SB3 is equipped with two types of high-speed interfaces, and can be used as a 6G 3.5"/2.5" high-speed SATA hard drive. When using the e-SATA interface, transmission speeds can reach 476MB/s, while transmission speeds for the USB3.0 interface are 386MB/s. These two types of interfaces achieve high transmission speeds at lower cost, making them suitable for high-speed image processing or image galleries with large capacity requirements.



3.5" HDD transmission speed - 2.5" SSD transmission speed

Compact and portable too

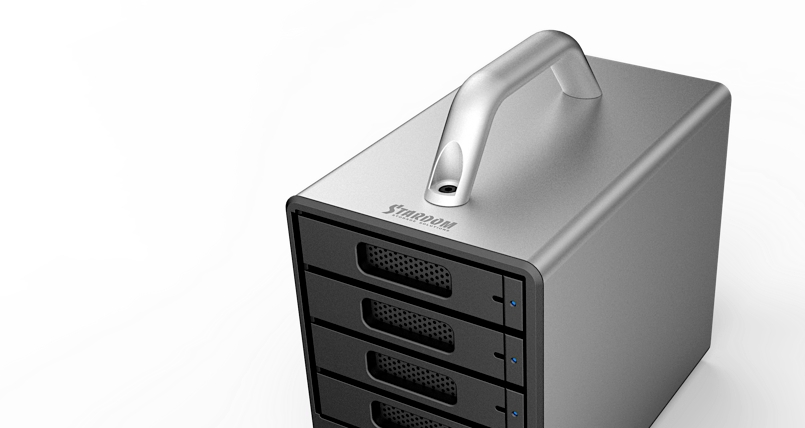

For field editing applications, the ST4-SB3 can be made portable as it comes equipped with a grip handle that you can choose to install yourself, making creative contents mobile convenient and less bulky.


Large capacity (up to 24TB) for all your creations

ST4-SB3 is compatible with a range of 6TB SATA hard drive brands. When used with a RAID card in RAID 0 mode, installing four 6TB hard drives allows the system to provide up to 24TB of storage space from a single drive; with a RAID card in RAID 5 mode, the ST4-SB3 can provide secure storage space of 18TB, ensuring the safety of your important data at all times.

6TB


Tough and durable shielding body

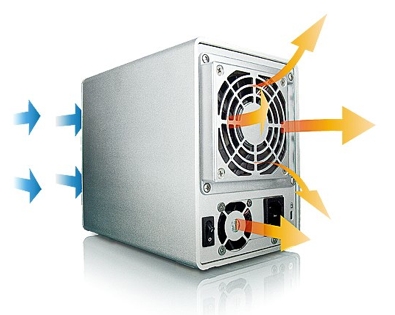

The ST4-SB3 beats any compact four drive systems with its seamless, 3.5mm thick full aluminum built body that’s robust to withstand the most demanding of use. With aluminum body, the system dissipates heat faster for a greater stability and performance that also extends the lives of the drives.



Compact to suit any desktop environment

Although the ST4 holds up to four 3.5/2.5 inch drives and includes a 200 watt power supply, the overall size (approx. 6.5 inches tall x 5 inches wide) of the enclosure is compact and will not take up much room of your desktop space. Moreover, the system is equipped with a large quiet fan for continuous drawing away heat from the inside of the system for you drive to run comfortably.

Application


ST4-SB3

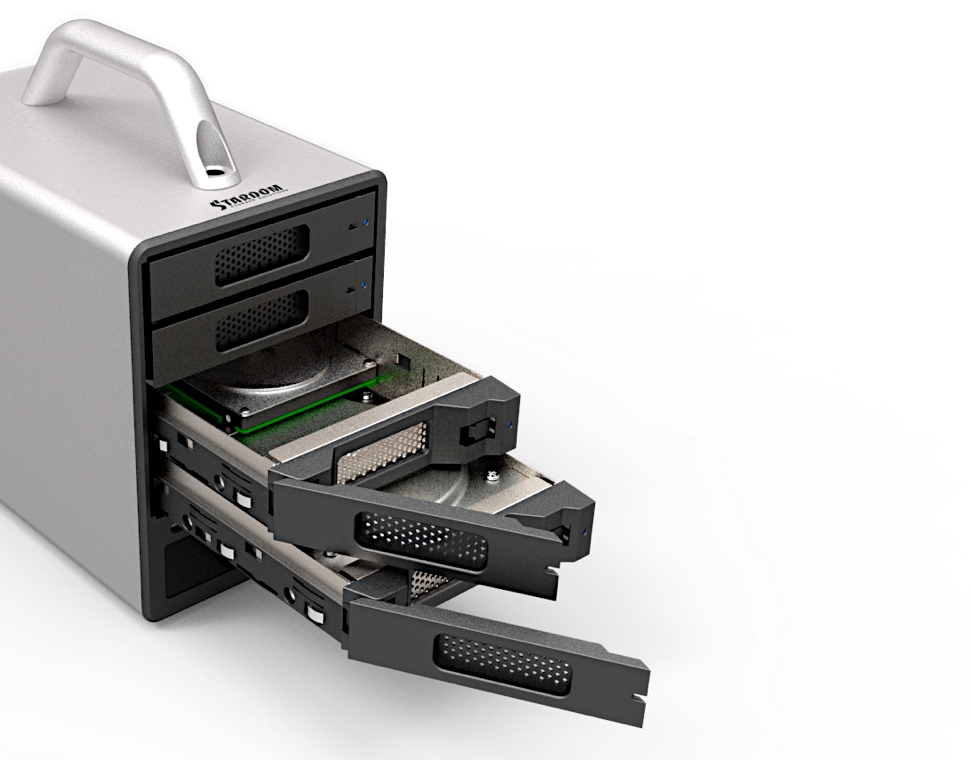

Able to recognize four hard drives with just one e-SATA cable

ST4-SB3's e-SATA allows for port multiplication. A single port can support four large capacity hard drives, allowing the user to directly view all four drives. This is very convenient for users who use a single hard drive as their image gallery, as they can easily swap hard drives without cabling issues. If you need to access a lot of image and video galleries, you can change the entire image gallery by swapping hard drives, as simple as changing a DVD.

[When using the e-SATA interface, the ST4-SB3 supports hot swappable hard drives, meaning you can directly swap hard drives when the power is on, as simple as changing a CD.When swapping hard drives make sure the hard drive is not in read or write mode.]

Never run out of hard drive space

As your iPhoto library grows, it may become too big to store on your computer’s hard drive. Aperture lets you set up as many external drives as you want and specify where to store each of your photos — without changing anything in your Aperture library. You can access and edit your photos the way you usually do, no matter where the originals are stored. This feature also allows you to add hard drives one at a time, whenever you need them. So your setup can grow along with your library.




Aperture




Storing across multiple drives in Aperture

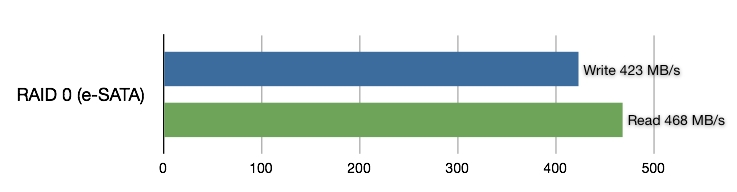

Why not combine an ES2-P2 with the ST4-SB3 and use Mac OS RAID utility to set up RAID 0?

Every ES2-P2 port supports transmission speeds of up to 6G/s. By using Mac OS RAID utility to set up RAID 0 from four hard drives, the user can achieve transmission speeds of around 468MB/s, making video editing much easier.

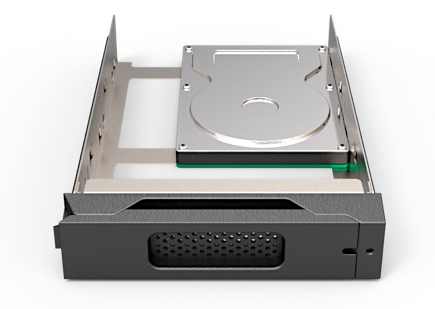

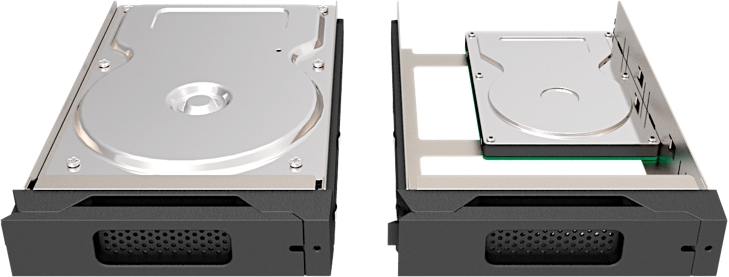

The new ST4-SB3 hard drive tray can now handle 2.5" SSD/HDD hard drives.

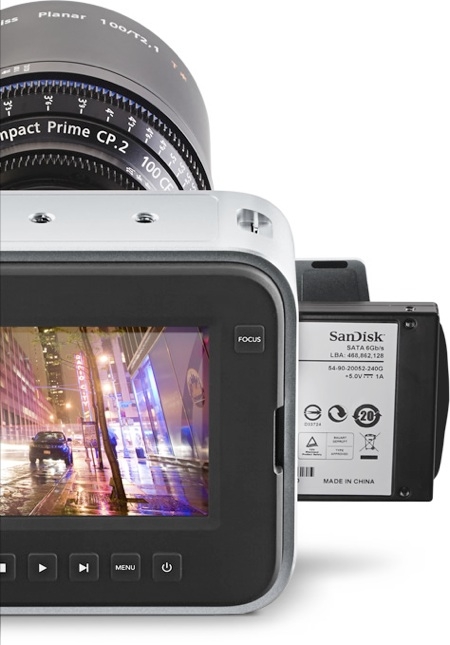

To transfer video captured from a Blackmagic Production Camera 4K to a mobile SSD, you can directly install the SSD on to the ST4's hard drive tray, and then connect it to a computer to perform editing or color correction on captured video directly. The hard disk can be formatted to be compatible with Mac HFS+ or Windows exFAT.


Specification

Model No - ST4-SB3

Interfaces

USB 3.0 Port ( up to 5 Gbps )

e-SATA Port ( up to 6 Gbps )

Before using the ST4-SB3 e-SATA port, make sure that the host supports the port multiplier function in order for system to identify all the drives.



Compatible Drives

4 x 3.5”/2.5" SATA III HDD/SSD ( up to 6 Gbps )

Support large volume up to 6TB

6TB


Storage Mode

4 x Independent ( JBOD )


System temperature, Fan failure, Hard drive failure.

System Monitoring

Cooling System

8 cm Low noise fan


Electrical and Operating Requirements

Line voltage: 100-240V AC

Frequency: 50Hz to 60Hz, single phase

Maximum continuous power: 200W

Operating temperature: 50° to 95° F (10° to 35° C)

Storage temperature: -4° to 116° F (-20° to 47° C)

Relative humidity: 5% to 95% noncondensing

Size and Weight

Height: 166 mm | Width: 124 mm | Depth: 210 mm | Weight: 4.5 kg

Product Code

EAN: 4711132864632      UPC: 884826503842

Carton

4 pcs per carton

Package Accessories

ST4-SB3 x 1  (with removable drive tray enclosed x 4)
USB3.0 Cable x 1
e-SATA Cable x 1
AC Power Cable x 1
Accessory kit
User Manual x 1

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
