All stock codes associated to this product
VPLEW255, 13VPLEW255, 4905524983418

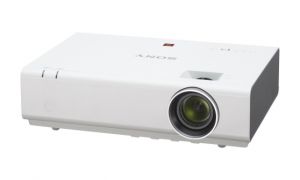

VPL-EW255
3,200 lumens WXGA portable projector with wireless connectivity
Bring learning to life with this bright, energy-efficient, wireless-ready portable projector that has been designed in consultation with teachers and made for todays classrooms
Combining superb widescreen WXGA image quality with smart energy-efficient features, the VPL-EW255 portable projector enhances learning with powerful presentations that really stand out. Simple to use and wireless ready, the projector is ideal for maximising student engagement in todays networked classrooms, making it your ideal partner throughout the busy school day.
Sony BrightEra panel technology assures clearpictures in any conditions, from daylight to darkened classrooms. Plenty of interfaces allow easy connection, while a choice of Picture Modes optimises viewing with any source slide presentations, PC documents, pictures or videos. Adding an optional Wi-Fi module lets students and teachers wirelessly share homework, images and graphics from mobile devices like smartphones and tablets. Theres a wide range of smart energy-saving features built in. And with a recommended lamp replacement time of 10,000 hours, downtime and maintenance costs are minimised.
Energy efficient with long-lasting lamp of 10,000 hours
The lamp driver optimally controls the wattage of the lamp and achieves a long-lasting lamp time of 10,000* hours. The recommended lamp replacement time is extended by 43%, compared to the previous model.
Lamp mode: low, Complies with IEC61947 standard
Advanced energy-saving features
Advanced lamp technology enables robust energy-saving features. For example, greater brightness control in Auto Light Dimming mode saves considerable energy when the projector is left on without being used. During projection, Auto Lamp Mode automatically adjusts light output to suit the projected scene. When you need to mute the picture temporarily, light output can be completely deactivated to minimise energy consumption.
High image quality 3LCD BrightEra natural and vivid colour images
Widescreen WXGA (1280 x 800) 16:10 screen resolution, 3LCD BrightEra natural and vivid colour images, plus various Picture Modes for optimising image quality, make the projector one of the best in its class. Thanks to the optical system projecting three basic colours constantly, the projector offers excellent light efficiency, ensuring colourful and bright images. Sony's BrightEra panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability. High colour reproducibility is important especially when using colourful content, such as materials used in classrooms.
Various picture modes for optimal picture quality
The projector has six available picture modes for correct picture quality: Dynamic, Standard, Presentation, Blackboard, Game, and Cinema. With six picture modes and three brightness modes combined, the user can select the most suitable picture/brightness combination according to the picture source and environment, to create the optimal image.
Network presentation (LAN/Wireless LAN)
When the projector is installed in a LAN, presentations can be projected from any PC and Mac on the network. A tablet or smartphone can be connected at the same time. You can project jpg, pdf and other supported formats. Up to four users can project PC/Mac images simultaneously, while up to eight users can connect to one projector. For PC/Mac, an application, Projector Station for Network Presentation, is provided. For a tablet/smartphone, an application is provided by Pixelworks, downloaded from the web. For details, please visit:
https://PWPresenter.pixelworks.com
Remote control for iOS device
Projector Remote is a simple remote control application for Sonys projectors. Networked projectors can be controlled by this remote application. Remote Control allows you to operate the projector with simple and easy-to-read buttons.
USB display
The projector allows you to display pictures and audio* with one USB cable. You do not need to install any driver for this function. It is a convenient way to connect to the projector when you want to connect easily.
There is a time lag in video and audio. When not in simple use, it is recommended to use Line-in or HDMI-in.
Input Label
The input label, which appears in the input menu on screen, can be customised. This gives users a clear understanding of which equipment is connected.
Built-in speaker
The projector includes a 16W monaural speaker.
Technical Specifications
Display System
| Display System |
3 LCD system |
Display device
| Size of effective display area |
0.59(15 mm) x 3 BrightEra LCD Panel
Aspect ratio 16:10 |
| Number of pixels |
3,072,000 (1280x800 x 3) pixels |
Projection lens
| Focus |
Manual |
| Zoom - Powered/Manual |
Manual |
| Zoom - Ratio |
Approx. x1.6 |
| Throw Ratio |
1.40:1 to 2.27:1 |
Light source
| Type |
Ultra high pressure mercury lamp |
| Wattage |
210 W type |
Recommended lamp replacement time
| Lamp mode: High |
4000 H |
| Lamp mode: Standard |
6000 H |
| Lamp mode: Low |
10000 H |
Filter cleaning / replacement cycle (Max.)
| Filter cleaning / replacement cycle (Max.) |
7000 H (cleaning) |
Screen size
| Screen size |
30" to 300"(0.76 m to 7.62 m) |
Light output
| Lamp mode: High |
3200 lm |
| Lamp mode: Standard |
2000 lm |
| Lamp mode: Low |
1600 lm |
Color light output
(Lamp mode: High / Standard / Low)
| Lamp mode: High |
3200 lm |
| Lamp mode: Standard |
2000 lm |
| Lamp mode: Low |
1600 lm |
Contrast ratio (full white / full black)
| Contrast ratio (full white / full black) |
2700:1 |
Speaker
Displayable scanning frequency
| Horizontal |
14 kHz to 93 kHz |
| Vertical |
47 Hz to 93 Hz |
Display resolution
| Computer signal input |
Maximum display resolution: 1600 x 1200 dots, fV:60Hz |
| Video signal input |
NTSC, PAL, SECAM,
480/60i, 576/50i,
480/60p, 575/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, The following items are available for digital signal (HDMI input) only;
1080/60p, 1080/50p |
Color system
| Color system |
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N |
Keystone correction (Max.)
OSD language
| OSD language |
24-languages (English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Farsi, Finnish, Indonesian, Hungarian, Greek)
|
INPUT OUTPUT (Computer/Video/Control)
| INPUT A |
RGB / Y PB PR input connector: Mini D-sub 15-pin (female), Audio input connector: Stereo mini jack |
| INPUT B |
RGB input connector: Mini D-sub 15-pin (female), Audio input connector: Stereo mini jack |
| INPUT C |
HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support |
| S VIDEO IN |
S video input connector: Mini DIN 4-pin, Audio input connector: Pin jack (x2) (shared with VIDEO IN) |
| VIDEO IN |
Video input connector: Pin jack, Audio input connector: Pin jack (x2) (shared with S VIDEO IN) |
| OUTPUT |
Monitor output connector: Mini D-sub 15-pin (female), Audio output connector: Stereo mini jack (variable out) |
| REMOTE |
D-sub 9-pin
male/RS241C |
| LAN |
RJ-45, 10BASE-T/100BASE-TX |
| USB |
Type-A |
| USB |
Type-B |
| MICROPHONE IN |
Microphone jack: Mini Jack |
Operating temperature / Operating humidity
| Operating temperature / Operating humidity |
0C to 40C (32F to 104F)
35% to 85%; no condensation |
Storage temperature / Storage humidity
| Storage temperature / Storage humidity |
-20 C to +60C (-4F to +140F) / 10% to 90% no condensation) |
Power requirements
| Power requirements |
AC 100 V to 240 V, 3.2 A to 1.4 A, 50 Hz / 60 Hz |
Power consumption - AC 100 V to 120 V
| Lamp mode: High |
314 W |
| Lamp mode: Standard |
250 W |
| Lamp mode: Low |
219 W |
Power consumption - AC 220 V to 240 V
| Lamp mode: High |
301 W |
| Lamp mode: Standard |
240 W |
| Lamp mode: Low |
212 W |
Standby mode power consumption - AC 100 V to 120 V
Standby mode power consumption - AC 220 V to 240 V
Heat dissipation
| AC 100 V to 120 V |
1071 BTU |
| AC 220 V to 240 V |
1027 BTU |
Dimensions (W x H x D)
Dimensions (W x H x D)
(without protrusions) |
365 x 96.2 x 252 mm
(14 3/8 X3 25/32 X9 29/32 ) |
Mass
| Mass |
Approx. 3.9 kg (8 lb) |
Supplied accessories
| Remote commander |
RM-PJ8 |
| Wireless LAN module |
No |
Optional Accessories
| Optional Lamp |
LMP-E212 |
| Projection lenses |
No |
| Projection lense adapter |
No |
| Interactive pen device |
No |
| Wireless LAN module |
IFU-WLM3 |
