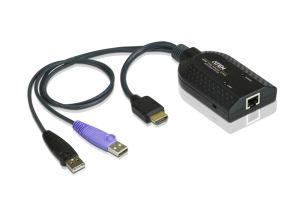

Aten KA7168 HDMI Virtual Media KVM Adapter w. Smart Card
Support
Features
- Auto Signal Compensation (ASC), no DIP switch setting needed for different
distances
- Keyboard and mouse emulation - keeps your server functioning smoothly when
it's disconnected from the switch's KVM port or is relocated to a different
KVM port
- Lifetime firmware upgrades
- Superior video quality - supports resolution up to 1920 x 1200 (Reduced
blanking)*
- Built in ASIC for greater reliability and compatibility
- Compact size
- Virtual Media Support**
- Smart Card / CAC Reader Support**
Package Contents
- 1x KA7168 KVM Adapter Cable
The KA7168 KVM Adapter Cable connects a KVM switch to the HDMI video and USB
ports of a target computer. The KA7168 supports HDMI output and provides a USB
plug to connect a target computer for Smart Card/CAC support*. With its small
size and light weight design, it represents the next generation of KVM Adapter
Cables - offering superior signal compensation and delay skew technologies for
greatly enhanced video quality.
* Virtual media and CAC reader functions are not supported for KH1508A,
KH1516A, KH1508Ai, KH1516Ai, KL1508A, KL1516A, KL1508Ai, KL1516Ai, KH2508A,
KH2516A, KN2116A, KN4116, KN2132, or KN4132.

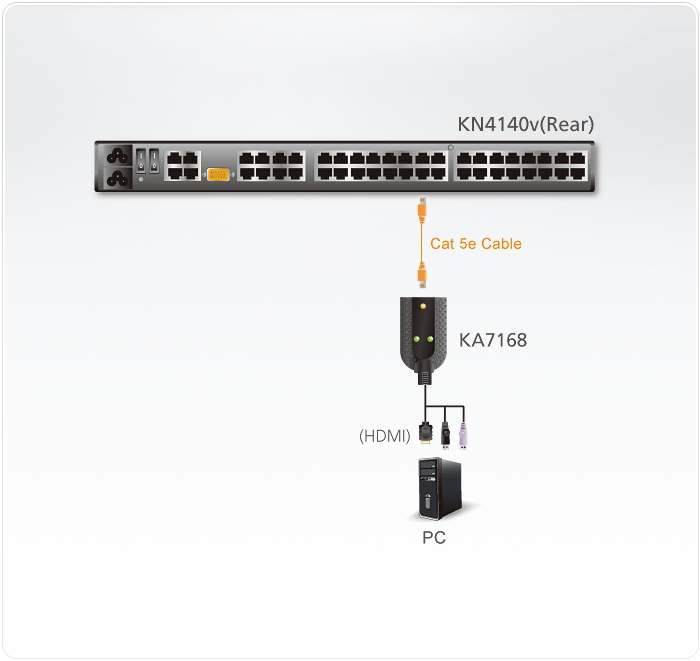

Diagram
Specifications
|
Connectors |
|
|
Link |
1 x RJ-45 Female |
|
Computer |
2 x USB Type A Male |
|
|
1 x DVI-D Male |
|
LEDs |
|
|
Link |
1 (Green) |
|
Power |
1 (Orange) |
|
Physical Properties |
|
|
Housing |
Plastic |
|
Weight |
0.11 kg ( 0.24 lb ) |
|
Dimensions (L x W x H) |
9.10 x 5.60 x 2.12 cm |
|
|
(3.58 x 2.2 x 0.83 in.) |
|
Note |
For some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
