All stock codes associated to this product
SUNDPD2001, SUN-DPD2001, 4715109710038
DPD2001
DisplayPort to Dual DisplayPort Graphics Splitter
SUNIX DPD2001DisplayPort graphics splitter lets you combine two DisplayPort monitors as one display, at a maximum resolution of 3840x1200, to make the ultimate wide screen desktop. This graphics expansion module can also clone your primary display and function as a 2 Port DisplayPort Video Splitter.
Compatible with a DisplayPort video card, SUNIX DisplayPort graphics splitter dongle requires no software installation for multi-display applications, plug-n-play, simplifying configuration and saving time. It works for standard Microsoft Windows PC with DisplayPort connectivity.
Features
- Ideal for multi-display and TV-Wall application.
- Works with any desktop or notebook computer which has DisplayPort output connectivity.
- Enable 2 DisplayPort monitors working simultaneously with video mirror or extension mode.
- Fully HD compatible and provides full display performance with virtually zero latency.
- Compatible with DisplayPort v1.2 / 1.1a, VESA DDM, and EDID v1.4 Standards.
- Supports exceptional Secured Content Protection with HDCP 1.3 for digital content.
- DisplayPort link rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR).
- Supports kinds of DisplayPort video dongles converting to HDMI, DVI, or VGA output connectivity.
- Driver Free, Plug & Play without configuration.
- Certified by CE, FCC, VCCI, BSMI, C-Tick, and RoHS.

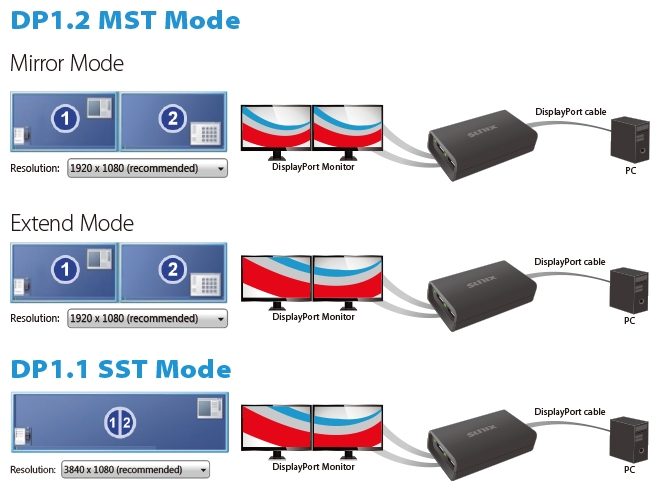

Application 1
Note:
1: Based on a Vertical Refresh Rate of 60Hz.
2: GPU dependent. EDID (Extended Display Identification Data) maximum resolution capabilities may differ based on GPU capability.
3: Tiny Universal DisplayPort Graphics Splitter does not support MAC system without NV or AMD graphics card built-in.
Package
- DisplayPort to Dual DisplayPort Graphics Splitter x1
- Quick Installation Guide
- DisplayPort Male to DisplayPort Male cable 200mm (8.0 ft.) x 1 (Optional)
- Mini-DisplayPort Male to DisplayPort Male cable 100mm (4.0 ft.) x 1 (Optional)
System Requirements
- Intel PC base computer with at least one available DisplayPort.
- Monitors with DisplayPort connections.
