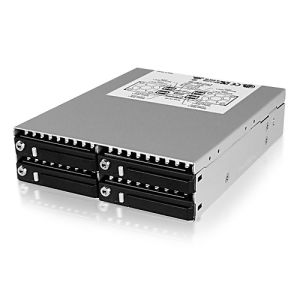

ICY BOX- IB-2222SSK - 4x 2.5" Dual Channel SAS/SATA HDD Backplane

For Professional Duty

HDDs in the 2.5" form factor are getting more and more popular as their storage capacity is growing.

It is only consequent to employ them in servers. Thats why ICY BOX offers a backplane that fits into a single 5.25" unit and is for four 2.5" SAS or SATA HDDs.

The height of the HDDs may even be 15 mm, for greatest storage capacity.

Two host connectors per HDD make possible the operation of SAS HDDs in dual channel mode. This ICY BOX works reliably even with huge amounts of data being pumped. That's a great recommendation for the hard duty in RAID systems.
Accordingly demanding is the layout of the cooling. While the aluminium casing cools two 40 mm fans work reliably and silently. Everything is as solid and safe as you might know it from the ICY BOX backplanes fort he big ones.

Technical Data








Article No.:




EAN Code:




















Required space:

1x 5.25"








2x 40x40x10 mm



HDD Size (inch):




HDD Height:

9.5 up to 15 mm



HDD Size (cm):

6.35 cm



HDD Capacity:

No limit



HDD Interface:

4x 2.5" SAS/SATA



Host Interface:




Transfer Rate:

Up to 3.0 Gbit/s



Hot Swap:




Plug & Play:








Operating system:

OS independent



Power connector:

2x Molex 4Pin (12 V/5 V)




Visual, LED lights up red




4x Power, 4x HDD access/HDD failure



Packing content:


1x IB-2222SSK backplane, 5x case screw, 18x HDD screw, 2x key, 4x SATA cable (with latchable connectors), 1x HDD error cable, 1x manual




Logistic Data




Packing unit:

8 pcs./carton



Total weight:

14,5 kg/Karton



Gross weight (incl. packing):

1.70 kg



Net weight:

1.30 kg




Dimension of article:

180x146x42 mm
