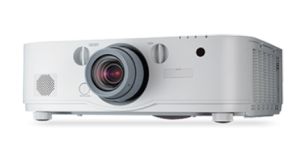

6200 lumen Advanced Professional Installation Projector
MODEL: NP-PA622U
NEC's PA622U is a 6200 lumen installation projector equipped to take on the most demanding integration projects. Enjoy design and installation flexibility with a complete line of optional bayonet style lenses, tilt-free installation capabilities and horizontal/vertical lens shift. What's more, uncompressed high definition video can be projected via integrated HDBaseT.
- TileMatrix enables 4Kx2K resolution utilizing 4 projectors via external distribution amplifier
- Multi-display support with Picture by Picture/Picture Out Picture
- High performance video processing/scaling creates life-like images
- Integrated software applications such as DisplayNote, Crestron Roomview, AMX Beacon and PJ link allow for complete interactivity and control
- 6000-lumen brightness enhances images for most applications
- Complete line of (5) bayonet-style lenses allows for quick and easy lens exchange (Lens does not ship with product)
- Available as a bundle with lens (NP-PA622U-13ZL)
Technologies
Stacking Capabilities
Allows the projectors to boost an image’s brightness up to 20,000 lumens, which is ideal for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.
6 Bayonet-Style Lenses
Allows for quick and easy lens exchange. Optional lenses enable the user to determine the appropriate lens to cover projection distances between 2.6 and 179.8 feet.
AutoSense™
Intuitively syncs the projector with most computer signals and features one-touch image optimization.
ECO Mode™
Extends lamp life, lowers audible noise and reduces total cost of ownership.
Tilt-Free Installation
Allows the projector to be rotated freely (360°) in order to point up or down depending on the installation requirements.
TileMatrix™
Allows users to customize a video wall configuration using advanced On Screen Display controls.
Edge Blending
Blend multiple projectors together to create not standard images
Portrait Mode
Ability to install a projector in its side to create a 10:16 portrait image
Specifications
| Optical |
| |
| |
| |
| |
| Display Technology |
0.76" LCD w/ MLA |
| |
| Light Output(Lumens) |
6200 normal |
| |
| Resolution |
|
|
| Native |
WUXGA 1920 x 1200 |
| |
| Maximum |
WUXGA 1920 x 1200 |
| |
|
| |
|
| Contrast Ratio (up to) |
6000:1 with auto iris |
| |
| Lamp Type |
350W AC |
| |
| Lamp Life (up to) |
3000 hours normal / 4000 hours eco |
| |
| Screen Size (diagonal) |
40 to 500 in. / 1.02 to 12.7m |
| |
| Throw Ratio |
1.5 to 3.02 |
| |
| Projection Distance |
2.5 to 68.5 ft. / 0.74 to 20.9m |
| |
| Projector Angle |
10.3 to 10.8 tele / 13.7 to 14.5 wide |
| |
| Lens |
|
|
| Zoom |
1 to 2.01 |
| |
| Focus |
Manual |
| |
| F number, fnumber |
F=1.7 to 2.37, f=24.4 to 48.6mm |
| |
| Shift |
Mechanical -0.1 to +0.5 vertical, +/-0.3 horizontal |
| |
|
| |
|
| Keystone Correction |
+/- 40 horizontal, +/- 30 vertical |
| |
|
| |
| |
| Signal Compatibility/Connectivity |
| |
| |
| |
| |
| Scan Rate |
|
|
| Horizontal |
15-108 kHz |
| |
| Vertical |
48-120 Hz |
| |
|
| |
|
| Supported Video Standards |
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
| |
| SD/HD Video Signal Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| |
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA |
| |
| Macintosh Compatibility |
Yes |
| |
| Input/Output Terminals |
|
|
| RGB1(analog) |
VGA 15-pin D-sub |
| |
| RGB2(analog) |
5-BNC |
| |
| RGB4(digital) |
DisplayPort w/HDCP |
| |
| RGB5(digital) |
HDBaseT |
| |
| Audio 1 |
Mini stereo |
| |
| Monitor out |
HDMI |
| |
| Audio out |
VGA 15-pin D-sub |
| |
|
| |
|
| Audio |
10W mono |
| |
| External Control |
RS-232, IR, HDBaseT, DDC/CI, USB |
| |
| Sync Compatiblity |
Separate Sync / Composite Sync / Sync on G |
| |
|
| |
| |
| RGB2(digtial) |
| |
| |
| |
| HDMI w/HDCP |
| |
| |
| Electrical |
| |
| |
| |
| |
| Power Requirements |
100-240V AC, 50/60 Hz |
| |
| Input Current |
5.5-2.2A |
| |
| Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving) |
460W / 362W / 7.4W / 0.11W |
| |
|
| |
| |
| Mechanical |
| |
| |
| |
| |
| Optional Lenses |
NP11FL, NP12ZL, NP13ZL, NP14ZL, NP15ZL, NP30ZL |
| |
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
| |
| Dimensions (WxDxH) |
19.7 x 14.4 x 6.5 in. / 499 x 366 x 164mm |
| |
| Net Weight |
18.5 lbs. / 8.4 kg |
| |
| Fan Noise |
39 dB normal / 33 dB eco |
| |
| Regulations |
USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM |
| |
|
| |
| |
| Environmental |
| |
| |
| |
| |
| Operating Temperature |
41-104F / 5-40C |
| |
| Humidity |
20-80% non-condensing |
| |
| Storage |
-14-122F / -10-50C |
| |
|
| |
| |
| Limited Warranty |
| |
| |
| |
| 3 years. First year Instacare Service. Lamp warranty is 1 year or 500 hours, whichever comes first. |
| |
Additional Features
- Automatic keystone correction
- Active Lens Cover
- USB Viewer
- Cornerstone
- Geometric Correction
- 4000 hour Filter Life
- Auto power on
- ECO Mode technology
- Closed captioning
- Variable audio out
- Carbon savings meter
- Virtual Remote
- Sleep timer
- Quick power-off
- Built-in wall color correction
- Advanced AccuBlend
- AutoSense
Ships With
- Remote control
- Batteries
- Power cord
- RGB signal cable
- Built-in Lens cover
- User manual
- Quick Start Guide
- Product registration card
- Network setup guide
- Lens anti-theft screw
