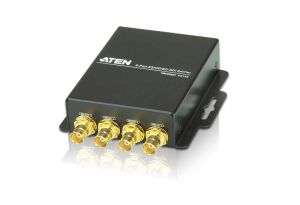

6-Port 3G/HD/SD-SDI Splitter
The VS146 6-Port 3G/HD/SD-SDI Splitter receives one SDI input and retransmits the signal to six SDI outputs for real time viewing across multiple displays. It provides automatic cable equalization and distributes the SD-SDI signal over 300 meters. The VS146 has the ability to re-clock SDI signals for cascading and thus provide even longer transmissions. It's particularly ideal for surveillance systems,TV studio, digital cinema, or any AV application where you need to split signals from a camera or other device equipped with 3G/HD/SD-SDI outputs to six SDI-compliant displays or video processors.
Features
One video inputs to 6 video outputs
Supports an SDI distance of up to 90M (3G-SDI), 150M (HD-SDI) or 300M (3D-SDI) of RG6
Reclocking SDI signals for cascading and thus longer transmission
Supported SDI formats:
SD-SDI (SMPTE 259M, up to 270Mbps)
HD-SDI (SMPTE 292M, 296M up to 1.485 Gbps)
SG-SDI (SMPTE 424M, 425M level A,B up to 2.97 Gbps)
Video bandwidth: 2.97Gpbs, 2.97/1.001Gbps
Features automatic detection of 3G/HD/SD-SDI signals
LED indication of power status and SDI signal
Locking power connector for secure communications
Passes all ancillary data

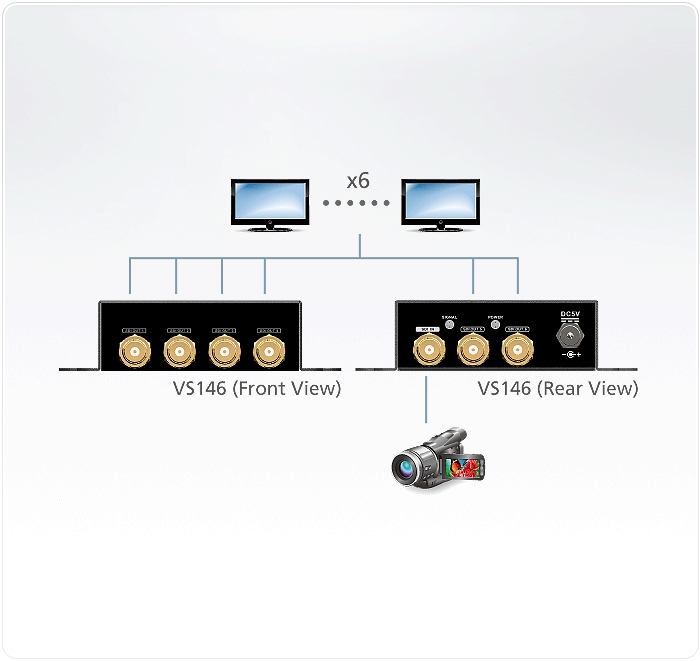

Diagram
Specifications
| Connectors |
SDI In |
1 x BNC (Gold) |
| SDI Out |
6 x BNC (Gold) |
| Power |
1 x DC Jack |
| LEDs |
Power |
1 (Orange) |
| Signal |
SD |
1 (Orange) |
| 3G/HD |
1 (Green) |
| Power Consumption |
DC5V, 10W |
| Environment |
Operating Temp. |
0-40C |
| Storage Temp. |
-20-60C |
| Humidity |
2090% RH, Non-condensing |
Physical
Properties |
Housing |
Metal |
| Weight |
0.31 kg |
Dimensions
(L x W x H) |
14.50 x 8.00 x 2.50 cm |
