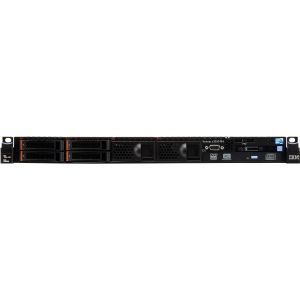

IBM 7914C3M X3550 M4 Server
Xeon E5-2620 V2(2.10GHz, 2.60GHz Turbo), 8GB-RAM, 2.5" SAS/SATA HDD Bay, RAID 0,1,1+0, G200eR2 , USB2.0, RJ45

No Longer Available

Part Number:

379302

(?) Brand:

IBM Web Site

Manuf No:

7914C3M

Shipping Weight:

15.9 KG (Includes product packaging)
Estimate Shipping

Date Added:

11/11/2014

Add to wishlist

Write a Review

Details Files Finance Images & Video

All stock codes associated to this product

7914C3M, 2482107, 883436493345

x3550 M4 2.1GHz 8GB 2.5in SAS/SATA

7914C3M

The IBM System x3550 M4 server provides outstanding performance for your business-critical applications. Its energy-efficient design supports more cores, memory, and data capacity in a compact 1U package that is easy to service and manage. With more computing power per watt and the latest Intel Xeon processors, you can reduce costs while maintaining speed and availability.

Specifications

Controllers
Controller Type:	6Gb/s SAS
Controller Type:	Serial ATA/600
RAID Levels:	0, 1, 1+0
RAID Supported:	Yes

Display & Graphics
Graphics Controller Manufacturer:	Matrox
Graphics Controller Model:	G200eR2
Graphics Memory Capacity:	Up to 16 MB

General Information
Brand Name:	IBM
Manufacturer Part Number:	7914C3M
Manufacturer Website Address:	https://www.ibm.com
Manufacturer:	IBM Corporation
Marketing Information:	The IBM System x3550 M4 server provides outstanding performance for your business-critical applications. Its energy-efficient design supports more cores, memory, and data capacity in a compact 1U package that is easy to service and manage. With more computing power per watt and the latest Intel Xeon processors, you can reduce costs while maintaining speed and availability.
Product Line:	System x
Product Model:	7914C3M
Product Name:	System x3550 M4 7914C3M Server
Product Series:	x3550 M4
Product Type:	Server

I/O Expansions
Number of External 5.25" Bays:	1
Number of Internal 2.5" Bays:	4
Number of PCI Express x16 Slots:	2
Number of Total Expansion Bays:	5
Number of Total Expansion Slots:	2

Interfaces/Ports
Network (RJ-45):	Yes
Number of USB 2.0 Ports:	6
Remote Management:	Yes
Total Number of USB Ports:	7
VGA:	Yes

Memory
Memory Standard:	DDR3-1600/PC3-12800
Memory Technology:	DDR3 SDRAM
Number of Total Memory Slots:	24
Standard Memory:	8 GB

Miscellaneous
Certifications & Standards:	FCC - Verified to comply with Part 15 of the FCC Rules, Class A Canada ICES-003, issue 4, Class A UL/IEC 60950-1 CSA C22.2 No. 60950-1-07 NOM-019 Argentina IEC60950-1 Japan VCCI, Class A Australia/New Zealand AS/NZS CISPR 22:2006, Class A IEC-60950-1 (CB Certificate and CB Test Report) Taiwan BSMI CNS13438, Class A; CNS14336-1 China CCC (GB4943-2001), GB9254-2008 class A, GB17625.1-2003 Korea KN22, Class A; KN24 CE Mark (EN55022 Class A, EN60950-1, EN55024, EN61000-3-2, and EN61000-3-3) CISPR 22, Class A TUV-GS EN60950-1 /IEC60950-1,EK1-ITB2000) Russia/GOST ME01, IEC-60950-1, GOST R 51318.22-99, GOST R 51318.24-99, GOST R 51317.3.2-99, GOST R 51317.3.3-99 IEC 60950-1 (CB Certificate and CB Test Report)
Compatibility:	Microsoft Windows Server 2012 Microsoft Windows Server 2008 R2 Microsoft Windows Server 2008, Datacenter x64 Edition Microsoft Windows Server 2008, Datacenter x86 Edition Microsoft Windows Server 2008, Enterprise x64 Edition Microsoft Windows Server 2008, Enterprise x86 Edition Microsoft Windows Server 2008, Standard x64 Edition Microsoft Windows Server 2008, Standard x86 Edition Microsoft Windows Server 2008, Web x64 Edition Microsoft Windows Server 2008, Web x86 Edition Microsoft Windows Small Business Server 2008 Premium Edition* Microsoft Windows Small Business Server 2008 Standard Edition* Red Hat Enterprise Linux 5 Server with Xen x64 Edition Red Hat Enterprise Linux 5 Server x64 Edition Red Hat Enterprise Linux 6 Server Edition Red Hat Enterprise Linux 6 Server x64 Edition SUSE LINUX Enterprise Server 10 for AMD64/EM64T SUSE LINUX Enterprise Server 11 for AMD64/EM64T SUSE LINUX Enterprise Server 11 for x86 SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T VMware vSphere 5 VMware vSphere 5.1
Package Contents:	System x3550 M4 7914C3M Server Statement of Limited Warranty Important Notices Rack Installation Instructions Documentation CD containing Installation and User's Guide IBM Systems Director Flyer IBM System x Gen-III Slides Kit IBM System x Gen-III Cable Management Arm (CMA) 1 x 2.8 m C13-C14 Power Cord

Network & Communication
Ethernet Technology:	Gigabit Ethernet

Physical Characteristics
Depth:	734 mm
Form Factor:	Rack
Height:	43 mm
Rack Height:	1U
Weight (Approximate):	15.90 kg
Width:	429 mm

Power Description
Input Voltage:	110 V AC
Input Voltage:	220 V AC
Maximum Power Supply Wattage:	550 W
Number of Power Supplies Installed:	1

Processor & Chipset
64-bit Processing:	Yes
Cache:	15 MB
Chipset Manufacturer:	Intel
Chipset Model:	C604
Hyper-Threading:	Yes
Number of Processors Installed:	1
Number of Processors Supported:	2
Processor Core:	Hexa-core (6 Core)
Processor Manufacturer:	Intel
Processor Model:	E5-2620 v2
Processor Speed:	2.10 GHz
Processor Type:	Xeon
QuickPath Interconnect:	7.20 GT/s

Software
Operating System:	No

Storage
Number of Hard Drives:	No
Optical Drive Type:	No

Warranty
Limited Warranty:	3 Year
