3.5" QUAD M2 (NGFF) SSD drive

AD4SA354M2

Overview

This Addonics 3.5" QUAD M2 (NGFF) SSD drive enables installing as many as four (4) M2 (NGFF) SSDs into any Desktop or Server computer via a 3.5" drive bay. Connecting to system via four SATA ports, the four M2 SSDD can be used like four individual high performance low powerhard drives or form a RAID group using the OS RAID utility. The dimension of the mounting bracket is designed to conform to the same dimension and mounting hole location of a standard 3.5" hard drive.This3.5" QUAD M2 (NGFF) SSD drive can also installed into 5.25" drive bay by using an option 3.5" - 5.25" drive bracket (AAHDMK53 or AAMK53)

For more detail of the M2 (NGFF) SSD. please visit the following link https://en.wikipedia.org/wiki/NGFF

The 3.5" M2 flash drive kit is designed to accomodate four M2 SATA SSDs.The metal frame has the exact dimensions and mounting hole location of a standard 3..5" hard drive.

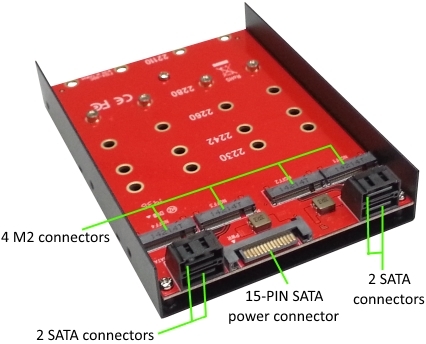

Front view


Rear view

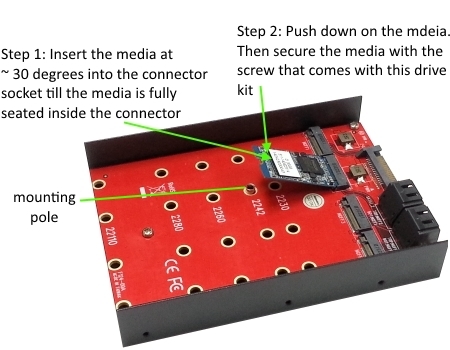

M2 (NGFF) SSD installation ( a 42 mm length NGFF SSD is shown for illustration purpose and is not part of the product)


Included accessories

four (4) screws for securing the M2 card tothe mounting poles. Two (2) secrews forsececuring the drive to the drive bay


Features

  • Build your own 3.5" SATA SSD with the latest high performance M2 (NGFF) SSD of your choice
  • Install as many as four (4) M2 SSDs to Desktop or Server PC via a 3.5" drive bay (or 5.25" drive bay using optional bracket (AAHDMK53orAAMK53)
  • Support M2 (NGFF) in length of 30, 42, 60, 80 and 110 mm
  • Replace 3.5" hard drive with low power and shock resistant M2 (NGFF) SSD
  • The four M2 SSDs connect to four SATA ports and appear as individual drive to the OS
  • The four M2 SSDs may form a RAID group using the RAID utility of the SATA controller or the OS
  • One of the M2 (NGFF) flash Card can be the primary bootable device containing the OS and applications
  • High current power regulator onboard to ensure reliable operation of large capacity high performance NGFF media
  • Comes with 4 sets of mounting poles and securing screws
  • Industrial operating temperature: -40 C to + 85 C
  • OS independent. No software driver required

Specifications

  • 15-PIN SATA power connector
  • Four (4) 7-PIN SATA connectors
  • Four (4) M2 SATA SSD connectors
  • Maximum transfer rate: 6 Gbps. Actual speed depends on the speed of the M2 (NGFF) SSD

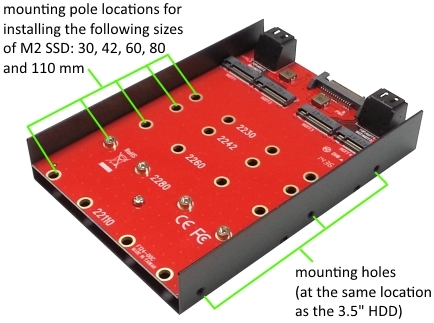

  • Mounting pole can be moved to lock down media in the length of 30, 42, 60, 80 and 110 mm
  • Mounting bracket Dimensions:102 mm (W) x 140 mm (L) x 25 mm (H) (same as a standard 3.5" hard drive)
  • Weight: ~ 227 g (8.0 oz) not including the M2 card
  • Power: +5V from PC power supply
  • Maximum Current: depends on the power consumption fo the M2 card
  • High current power regulator onboard to ensure reliable operation of large capacity high performance NGFF media
  • Industrial operating Temperature: -40 C to + 85 C
  • Operating Humidity: 5% - 95% (non condensing)
  • Storage Temperature: -40 C to + 85 C
  • Storage Humidity: 5% - 95%
  • Warranty: One Year
