eScan A150

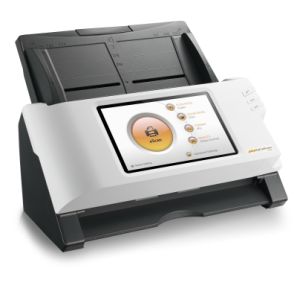

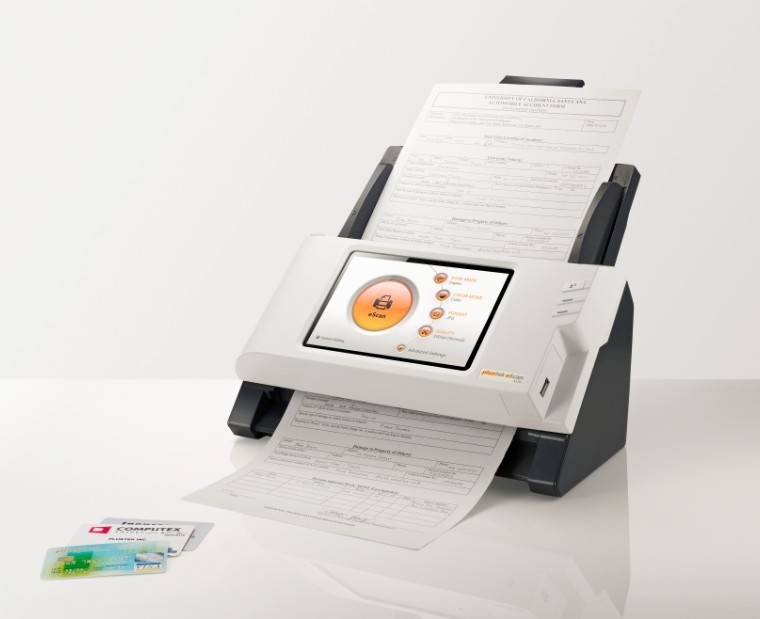

Plustek's eScan A150 allows end users to instantly power up the device for fast scanning. Its built-in 7" LCD touch screen is intuitive and offers a quick way to review or even crop targeted images, before delivering the final digitally captured data.
Features
Features
Setup Easily
eScan works as easy as an appliance. End users can just plug the network cable and turn it on to start. There is no need for IT staff setup and training. Just respond to the three easy intuitive steps on our large seven inch LCD screen and you are on your way.
Scan

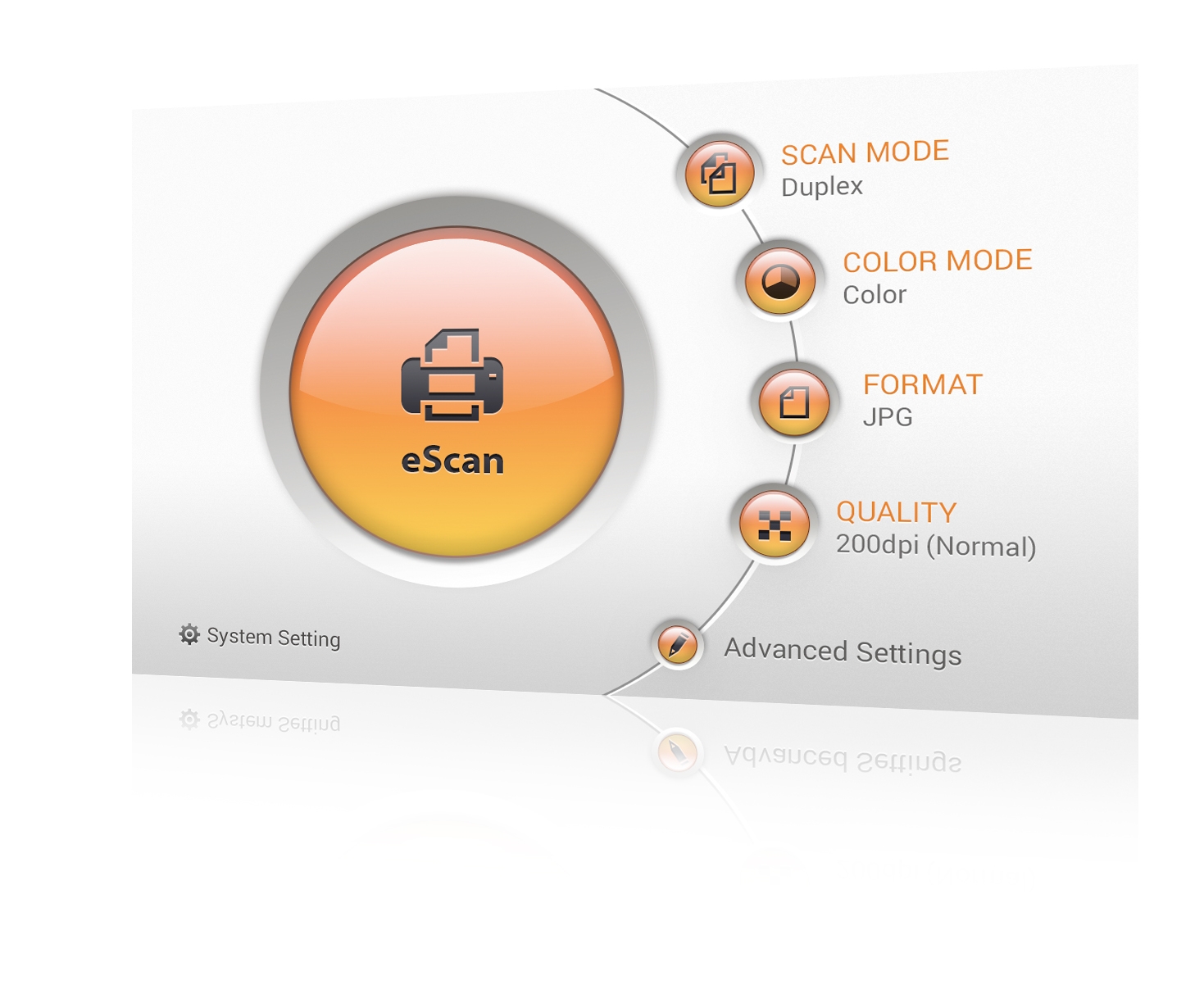

A Big eScan button is always waiting for your touch. If you have other requirements simply change the scan setting; its done!
View

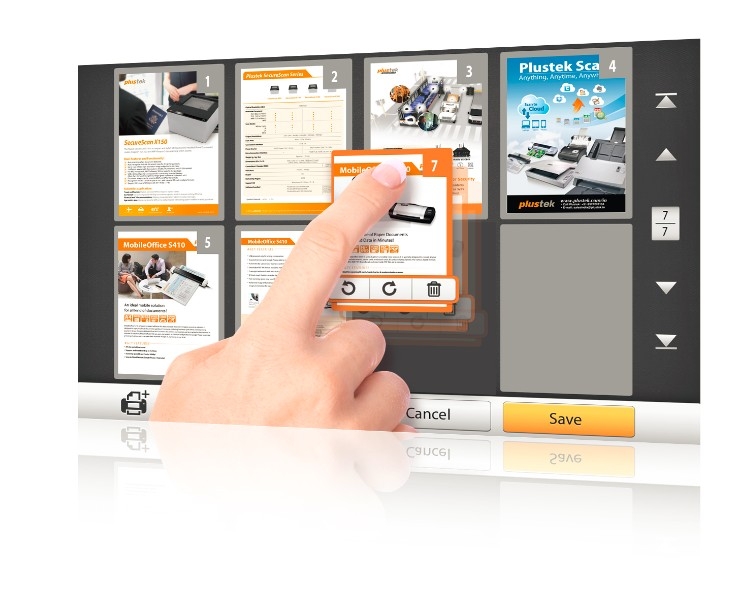

eScan allows you to validate the scanned images in the thumbnail mode. It also allows you to review each individual page in full page mode to crop, rotate, or even redact the page. If you are happy with the scanned thumbnail image, you are ready to deliver!
Save

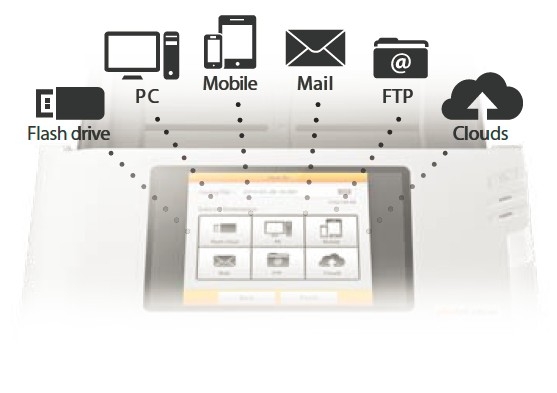

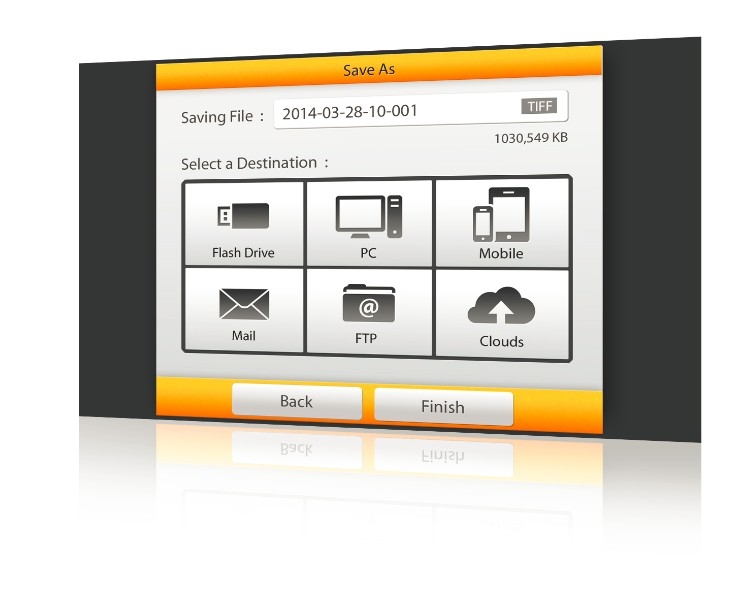

eScan is loaded with 9 destinations to choose from: USB drive, network folder, mobile, eMail address, or variety of cloud (Dropbox, Google Drive, Evernote, Box, SharePoint or FTP). Once a destination is selected just enter your credentials, cheers!
Sending to multiple destinations
From time to time you may want to send same document to different destinations. The eScan allows you to send the same scanned document over and over again.
Specifications:
| Optical Resolution: |
600 dpi |
| Hardware Resolution: |
600 x 600 dpi |
| ADF Capacity: |
50 sheets (70 g/m, 18 Lbs)
Note: Maximum ADF capacity varies, depending upon paper weight. |
| Scanning Speed: |
15 ppm/ 30 ipm (Grayscale mode, 200 dpi, A4 Portrait)
15 ppm/ 30 ipm (B&W mode, 200 dpi, A4 Portrait)
4 ppm/ 8 ipm (Color mode, 200 dpi, A4 Portrait)
--------------------------------------------------
17 ppm/ 34 ipm (Grayscale mode, 200 dpi, Letter, Portrait)
17 ppm/ 34 ipm (B&W mode, 200 dpi, Letter, Portrait)
4 ppm/ 8 ipm (Color mode, 200 dpi, Letter, Portrait) |
| Scanning Area (W x L): |
Max. 216 x 356 mm (8.5" x 14")
Min. 13.2 x 13.2 mm (0.52" x 0.52") |
| Acceptable Paper Sizes (W x L): |
Max. 244 x 356 mm (9.6" x 14")
Min. 50.8 x 50.8 mm (2" x 2") |
| Acceptable Paper Weight (Thickness): |
40 to 157 g/m (12 to 40 Lbs) |
| Daily Duty Scan ( Sheets ): |
1,500 |
| Roller Lifetime (Scans): |
300000 |
| Pad Lifetime (Scans): |
50000 |
| Power Supply: |
24Vdc/1.67 A |
| Network Functions: |
Scan to Mobile Device
Scan to FTP (Supports FTP/SFTP)
Scan to USB
Scan to PC
Scan to Email
Scan to Cloud |
| Interface: |
USB 2.0 x 1, RJ45 (network connection) x 1 |
| Net Weight: |
2.8 Kgs (6.17 Lbs) |
| Dimensions (W x D x H): |
318 x 170 x 189 mm (12.53" x 6.69" x 7.45") |
| Operation Panel: |
CPU: RK3188 Cortex A9 Quad-core GPU @ 1.6GHz
Memory Size: DDR3 1GB
Display: 7" 1280x800 pixels with IPS wide view multi-touch screen |
| Operating Temperature: |
+ 5 C to +35C |
