IcyBox IB-543SSK SAS/SATA (I/II/III) Backplane
  • Fits 2x 5.25" Bay, 3x3.5"SATA HDD/SSD Bay, 1x60mm Fan, Aluminium, SATA

IMG 1 of 1
No Longer Available
Part Number:
391570
(?) Brand:
IcyBox Web Site
Manuf No:
IB-543SSK
IB543SSK
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Date Added:
25/3/2015
Details Files Images & Video
All stock codes associated to this product
IB543SSK, IB-543SSK, HDDICY543SSK

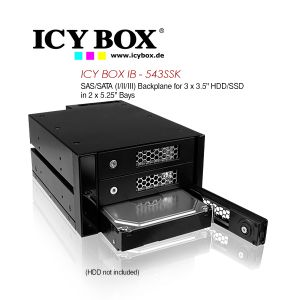

ICY BOX (IB - 543SSK) SAS/SATA (I/II/III) Backplane for 3 x 3.5 Inch HDD/SSD in 2 x 5.25 Inch Bays


SAS/SATA (I/II/III) backplane for 3x 3.5 inch HDD/SSD in 2x 5.25 inch bays. Lockable and with dual channel, easy swap and 60mm fan.

  • 3x 3.5 inch SATA or SAS HDD in 2x 5.25 inch bay
  • 2x host connector (dual channel) for each SAS HDD
  • Hard disk capacity not limited
  • SATA I/II/III host interface 6.0 Gbit/s
  • HDD slots with key lock
  • Plug & Play and Hot Swap

Specifications:

  • Colour: Black
  • Material: Aluminium
  • Required space: 2x 5.25 inch
  • Carrier: 3x
  • Fan: 1x 60x60x10 mm / 3.000 rpm (23.3 dBA)
  • HDD size (inch): 3.5 inch
  • HDD size (cm): 8.89 cm
  • HDD capacity: No limit
  • HDD interface: 3x 3.5 inch SAS/SATA I/II/III
  • Host interface:6x SATA (Dual Channel)
  • Transfer rate: Up to 6.0 Gbit/s
  • Hot Swap: Yes
  • Plug & Play: Yes
  • Lock: Yes
  • Operating system: OS independent
  • Power connector: 2x Molex 4Pin (12+5 V)
  • Alarm:Visual by LED (fan off)
  • LED: HDD LED: HDD presence, HDD access, no HDD, Fan LED: Fan on/off
  • Packing content: 1x IB-543SSK, 3x SATA cable, 8x screw, 2x key, 1x manual
  • Gross weight (incl. packing): 1.713 kg
  • Net weight: 1.368 kg
  • Dimension of packing box: 287x220x150 mm
  • Dimension of article: 145x200x85 mm

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 year return to base

Full manufacturers warranty details are available at the manufacturers (IcyBox) web site.
