All stock codes associated to this product

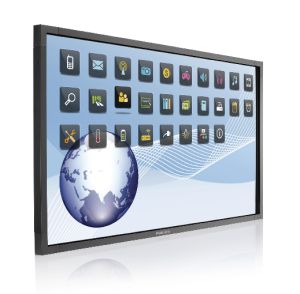

BDL4254ET
Philips Signage Solutions
Multi-Touch Display
42"
Edge LED Backlight
Full HD
Optical Imaging, 5 Touchpoints
Discover a new level of interaction with this multi touch LED display
Get even closer to your audience than ever before. Fast, precise and extremely durable, its high performance is matched by excellent reliability and functionality.
Optimized for public viewing
- Full HD LED technology for brilliant images
- IPS wide view technology for image and color accuracy
Supreme audience interaction
- True multi touch with 5 simultaneous touch points
- USB Plug-and-Play compatible
- Optical touch technology for advanced user interaction
- Compatible with all leading operating systems
Operational flexibility
- Open Pluggable Specification Slot
- Smart insert in the backcover to place a small pc
- Smart Control Software Suite
- Portrait mode operability
- Designed for 24/7 operation
Highlights
Full HD LED technology
White LED's are solid state devices which light up to full, consistent brightness faster saving startup time. LED's are free from mercury content which allows for eco-friendly recycling and disposal process. LED's allow for better dimming control of LCD backlight, resulting in super high contrast ratio. It also gives superior color reproduction thanks to consistent brightness across the screen.
IPS Display Technology
Philips IPS displays uses an advanced technology which gives you extra wide viewing angles of 178/178 degree, making it possible to view the display from almost any angle - even in portrait mode. IPS displays gives you remarkably crisp images with vivid colors, especially suitable for professional video wall
and menuboard applications which demand color accuracy and consistent brightness at all times.
Optical multi-touch
A brand new level of interactivity is now available thanks to the integrated optical touch technology. The sensors on the edge of the screen give you perfect clarity whilst at the same time offering multi-touch interaction, opening up all kinds of possibilities for new interactive applications.
USB Plug-and-Play compatible
Simply connect the display via USB to your mediaplayer for automatic touch recognition. The USB connector is HID compliant, providing true plug-and-play operation.
OPS Slot
Developed for the Digital Signage market, the Open Pluggable Specification (OPS) slot is designed to make changing or upgrading your media player mere child’s play. Simply plug your media player in to the display - and you’re ready. No matter whether you have an entry level, mid-range or high-end media player, OPS is fully compatible bringing you a lower TCO over the longer term.
Smart Insert
Professional PC's are part of most public signage installations. Quite often they increase the overall depth to the display and cause a lot of cable clutter. So we have designed this display with Smart insert in the back cover which is ideal for the integration of a professional small form factor PC. On top of that, the cable management system offers a great solution to keep your cables neat and professional looking.
Software compatibility
Our touch displays are software independent and supports Windows 8, Windows 7, Vista, XP, Mac OS and Linux.
Smart Control
Control and manage all of the signage displays on your network with this powerful software tool which allows you to change the settings of your display centrally via an RJ45 or RS232 connection. Smart Control allows you to set the video input, modify the color settings, set the display's ID when creating video walls and even diagnose each display's status, giving you all the power you need to manage your displays from one central location.
Designed for 24/7 operation
Because business never sleeps, our signage displays are designed for 24/7 use. Taking advantage of superior components to ensure a higher level of quality, you can count on this range of models for complete around-the-clock reliability.
Specifications
Picture/Display
Diagonal screen size: 42 inch/106.7 cm
Panel resolution: 1920x1080p
Brightness: 450cd/m²
Contrast ratio (typical): 1300:1
Dynamic contrast ratio: 6500:1
Response time (typical): 12ms
Aspect ratio: 16:9
Viewing angle (H/V): 178/178 degree
Display colors: 1.06 Billion
Pixel pitch: 0.485 x 0.485 mm
Surface treatment: Anti-Glare coating
Picture enhancement: 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement
Interactivity
Multi-touch technology: Optical sensing
Touch points: 5 simultaneous touchpoints
Plug and play: HID compliant
Protection glass: 4 mm tempered safety glass
Connectivity
Video input: DisplayPort (1.1a), HDMI, DVI-D, VGA (Analog D-Sub), Component (RCA), Composite (RCA)
Video output: DVI-I, VGA (via DVI-D)
Audio input: Audio Left/Right (RCA), 3.5 mm jack
Audio output: Audio Left/Right (RCA), External speaker connector
External control: RJ45, RS232C (in/out) D-Sub9
Other connections: USB, AC-out, OPS
Supported Display Resolution
Computer formats
Resolution: Refresh rate
640 x 480
60, 67, 72, 75Hz
800 x 600
56, 60, 72, 75Hz
1024 x 768
60Hz
1280 x 768
60Hz
1280 x 800
60Hz
1280 x 1024
60Hz
1360 x 768
60Hz
1366 x 768
60Hz
1440 x 900
60Hz
1600 x 1200
60Hz
1920 x 1080
60Hz
1920 x 1200
60Hz
Video formats
Resolution: Refresh rate
480i
60Hz
480p
60Hz
576p
50Hz
576i
50Hz
720p
50, 60Hz
1080i
50, 60Hz
1080p
50, 60Hz
Convenience
Placement: Landscape, Portrait
Signal Loop Through: DVI, RS232, VGA
Network controllable: RS232, RJ45
Picture performance: Advanced color control
Picture in picture: PIP
Screen saving functions: Pixel Shift, Low Brightness
Keyboard control: Hidden, Lockable
Remote control signal: Lockable
Ease of installation: AC Out, Smart Insert
Energy saving functions: Smart Power
Packaging: Reusable box
Other convenience: Carrying handles
Dimensions
Set dimensions (WxHxD): 976.16x569.50x79.80mm
Bezel width: 19.5 mm
Product weight: 24.3kg
VESA Mount: 400 x 400 mm, 400 x 200 mm, 200 x 200 mm
Smart Insert mount: 100 x 200 mm, 100 x 100 mm
Sound
Built-in speakers: 2 x 10W
Operating conditions
Temperature range (operation): 5 ~ 40C
Relative humidity: 20 ~ 80%
MTBF: 50,000 hour(s)
Power
Mains power: 90 ~ 240 VAC, 50/60Hz
Consumption (On mode): TBC
Standby power consumption: <0.5W
Accessories
Included accessories: AC Power Cord, VGA cable, RS232 cable, USB cable, Remote Control, Batteries for remote control, Quick start guide, User manual on CD-ROM
Stand: BM05462 (Optional)
Miscellaneous
On-Screen Display Languages: English, French, German, Italian, Polish, Turkish, Spanish, Russian, Simplified Chinese, Traditional Chinese
Regulatory approvals: CE, FCC, Class B, CCC, RoHS, UL/cUL
Warranty: 3 year warranty
