All stock codes associated to this product
HC784A, IVC2MD145, IVC-2MD145
HC784A HD Analogue Cameras
Overview
Product description
The HC784A is part of our range of high-definition analogue security cameras. It achieves a substantial 1080p (1920x1080) resolution with a Sony Exmor image sensor, and has a 2.8-12mm varifocal lens. 1080p has approximately 200% larger recording area than 720p, 400% more than 960H, and 600% more than standard D1 analogue cameras.
The cabling can run from camera to camera, rather than each of the CCTV cameras running directly to the HD DVR. This substantially reduces the costs of expensive cabling, and the labour to run and connect it.

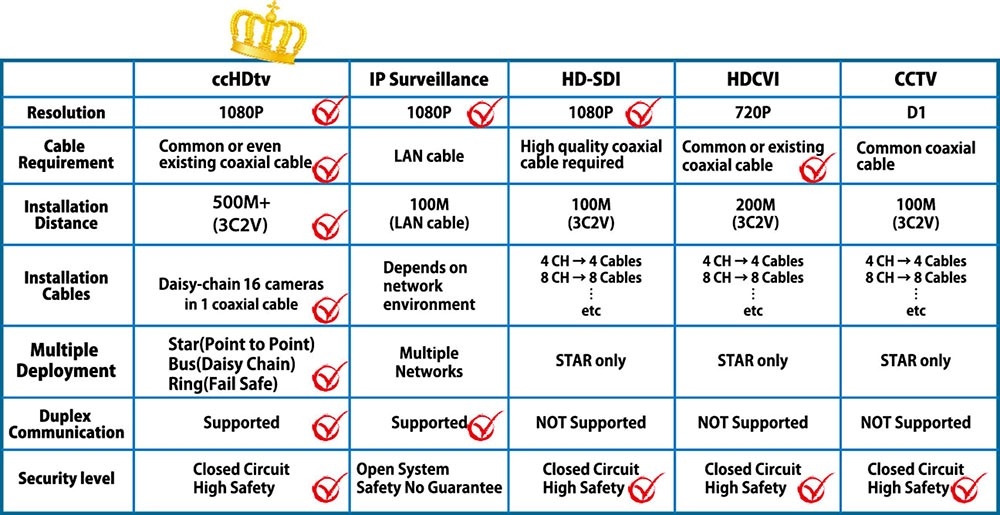

The HC784A surveillance cameras can connect in a variety of different network topologies for additional data transmission redundancy. As an advantage of effective use of topologies, in a fail-safe ring or mesh configuration, if one cable fails all other cameras will continue to operate normally.
The HC784A employs Infrared Cut Filter Removal (ICR) to give you distanced footage at night up to a maximum of 40 metres.
These white, visually appealing dome-style CCTV security cameras are designed for use in outdoor settings, with existing coaxial cable infrastructure.
Main features:Dome ccHDtv Camera, 2MP @30fps, Sony sensor, 2.8-12mm, IP66, IR, ICR, Low lux, 2 year warranty.
Additional Information
| Camera Type |
Dome |
| Outdoor Use |
Outdoor Use |
| Vandal Resistant |
Yes |
| Image Sensor |
1/2.8 SONY Exmor |
| Maximum Video Resolution |
1920x1080 |
| Maximum Video Resolution (Megapixels) |
2 |
| Frame Rate Resolution |
30 |
| Lens |
2.8-12 mm |
| Lens Type |
Vari-Focal |
| Minimum Illumination |
0.01Low Lux |
| Day/Night Mode |
ICR |
| Maximum Night IR Distance (M) |
20 |
| Image Enhancement |
Brightness, contrast, Saturation, sharpness, Hue |
| Power Supply |
DC12V |
| Connectors |
DC Power Input, BNC |
| In The Box |
Wall Bracket |
| Model |
HC784A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 50C (14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
148x122 mm |
| Weight |
2.000000 |
