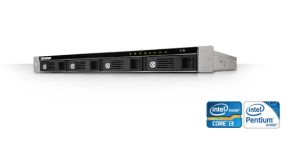

QNAP Systems TVS-471U-RP-i3-4G NAS Device - 1U Rackmount
  • 4x2.5/3.5" SATA/SSD HDD, RAID Single Disk, JBOD, 0,1,5,6,10, 4xUSB3.0, 4xUSB2.0, 4xGigLAN

IMG 1 of 1
No Longer Available
Part Number:
398382
(?) Brand:
QNAP Systems
Manuf No:
TVS-471U-RP-i3-4G
TVS471URPi34G
Shipping Weight:
11.6 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
QN17346AR, TVS471URPi34G, TVS-471U-RP-i3-4G
TVS-471U-RP

4-bay high performance unified storage equipped with redundant power supplies

Features

The QNAP TVS-471U-RP, featuring the easy-to-use QTS operating system, provides a reliable and scalable NAS solution to fulfill data backup, file synchronization and remote access. The TVS-471U-RP is 10GbE-ready, delivers exceptional performance, and supports cross-platform file sharing, comprehensive backup solutions, iSCSI and virtualization applications, and many practical business functions, making it the ideal choice for SMBs to secure important business data. It also includes abundant multimedia applications backed by its powerful hardware specifications.

  • 1,530+ MB/s throughput and 128,000+ IOPS
  • Two internal cache ports for IO acceleration
  • Scalable design, up to 1056TB raw capacity
  • Virtualization-ready, centralized data storage, backup, sharing and disaster recovery

Breakthrough performance

The TVS-471U-RP is equipped with redundant power supplies and supports SATA 6Gbps hard drives driving over 1,533 MB/s throughput and 128,059 IOPS. The TVS-471U-RP is powered by an Intel Haswell processor with numerous options including Pentium and Core i3 for users to flexibly choose based on their demands, greatly enhancing the efficiency of CPU-consuming tasks and serving more concurrent tasks at the same time.


Tested in QNAP lab. Figures could vary by environments.

Testing Environment: 2 Client PC configuration: Intel(R) Core(TM) i7-2600 CPU, 16GB DDR3 RAM, Windows 7 professional 64-bit, Dual-port Intel X520 10GbE Server Adapter, IOMeter sequential read and write. NAS configurations: TVS-471U-RP-i3, Plextor PX-256MPro SSDs with RAID 5 configuration, QNAP LAN-10G2T-U dual-port 10GBase-T network adapter*2

Internal cache port for IO acceleration

The TVS-471U-RP supports two on-board internal cache ports. By installing mSATA flash modules (optional purchase), the IOPS performance of storage volumes can be remarkably boosted. It is perfect for improving the overall workflow of random IOPS demanding applications such as databases and virtualization. The internal cache port design does not require the space of a hard drive tray to allow for more storage capacity.

Note: Instead of installing the mSATA in the internal cache port, SSDs can be installed in the hard drive tray.

Learn more: SSD cache


10GbE ready

The TVS-471U-RP offers four inbuilt Gigabit Ethernet ports and supports 10 Gigabit high speed networks by installing a 10GbE network adapter. The 10GbE-ready TVS-471U-RP delivers lightning-fast data throughput and coupled with the support for a large storage capacity is perfect for data centers to store big data, excel in fast data transmission, and for editing large size videos on-the-fly without transferring the videos between the TVS-471U-RP and desktop computers.


Seamless capacity expansion

The TVS-471U-RP supports online capacity expansion by cascading multiple QNAP RAID expansion enclosures to meet the needs of growing business data. With the QNAP scale-up solution, raw storage capacity can be gradually expanded on demand. It is especially useful for video surveillance, data archiving, TV broadcast storage, and other large-data applications.

The maximum raw storage capacity available by connecting RAID expansion enclosures:

Turbo NAS Model RAID Expansion Enclosure No. of RAID Expansion Enclosure Total HDD No. (NAS + Enclosure) Max. Raw Capacity (TB)*
TVS-471U-RP REXP-1600U-RP 8 132 1056
7 116 928
6 100 800
5 84 672
4 68 544
3 52 416
2 36 288
1 20 160
REXP-1200U-RP 8 100 800
7 88 704
6 76 608
5 64 512
4 52 416
3 40 320
2 28 224
1 16 128

Use your TVS-471U-RP with exclusive QvPC Technology

QNAP's exclusive QvPC Technology consolidates a number of high-end technologies including VM integration, multimedia transcoding, HDMI output, cloud integration and NAS connection technologies, allowing users to operate the TVS-471U-RP when they plug in a keyboard, mouse and monitor. With QvPC Technology, the TVS-471U-RP is transformed into a cost-effective PC substitute for users to directly access stored data, run multiple applications using Windows/Linux/UNIX/Android-based VMs, surf the web on Google Chrome or Mozilla Firefox, enjoy 4K or 1080p videos with up to 7.1 channel audio with Kodi, monitor Surveillance Station in real time with local display, and much more.


QTS - Simple and efficient

Thanks to QTS' intuitive user interface, system operations of the TVS-471U-RP are smooth and handy. Its intelligent desktop allows you to find desired functions quickly, create desktop shortcuts or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater working efficiency.


Qsirch A smarter, faster way to search

Quickly and easily find documents, photos, videos, and music with Qsirch, QNAPs new built-in NAS search application lets you find what you need by real-time, natural search. Simply type in as much as you know about what you are trying to find, including bits of the file name or even words/phrases in the document, and Qsirch will display a list of matches, complete with thumbnails, as you type. Qsirch even remembers your search history so you can quickly navigate to files youve previously searched for. Qsirch is a huge productivity boost it greatly reduces the amount of time spent looking for files on the NAS so you can focus on other tasks.

Qsirch

Powerful QNAP flexible volume

QNAP's flexible volume provides an easier and more secure way to store NAS data. This next-generation volume offers powerful features such as storage pooling with multiple RAID group protection, thin provisioned volume with space reclaim, block-level iSCSI LUN, and online capacity expansion. The QTS Storage Manager neatly presents tools and options for managing system storage which simplifies the process of NAS capacity expansion and QNAP RAID expansion enclosure management.


Cross-platform file sharing, centralized data storage

The TVS-471U-RP supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows, Mac, and Linux/UNIX networks. Data, logs and ISO images of CDs and DVDs can be centrally stored on the Turbo NAS and protected by an integrated antivirus solution. The Windows AD and LDAP services enable system administrators to configure user permissions by using existing Windows AD server, LDAP server or NAS build-in LDAP services.

Learn more: Windows Active Directory (AD), LDAP Directory Service, Antivirus, ISO share, Syslog service


Well-rounded backup solutions to secure data

The QNAP NetBak Replicator supports real-time and scheduled data backup on Windows including Outlook email archiving. Apple Time Machine is also supported to provide Mac OS X users with a solution to effortlessly back up data to the TVS-471U-RP.


Disaster recovery solutions brings peace of mind

The TVS-471U-RP offers various data recovery options. RTRR (Real-Time Remote Replication) supports real time or scheduled data backup to a remote Turbo NAS or FTP server and synchronizes files to a remote folder from a local folder with better backup efficiency and reduced backup time. The TVS-471U-RP also supports rsync protocol to back up data to another remote server on a scheduled basis. Data can also be backed up to and restored from a range of cloud storage services, including Amazon  S3, Amazon Glacier, Microsoft  Azure, ElephantDrive , Symform , Dropbox  and Google  Drive.


Comprehensive security options

In an open network environment, business data may be exposed in a potential hack. The TVS-471U-RP provides numerous security options, such as encrypted access, IP blocking, and more. Besides, IT administrators can control the access rights of each user to different folders, preventing unauthorized access to important files. The TVS-471U-RP is validated with military level FIPS 140-2 AES 256-bit encryption, preventing sensitive business data from unauthorized access and breach even if the hard drives or the entire system were stolen.


Full NAS encryption technology ensures data security

QNAP's full NAS encryption by volume-based technology effectively ensures data security by encrypting all of the files stored in the default shared folders on the TVS-471U-RP. Even if the TVS-471U-RP is encrypted, all the files can still be accessible via Windows SMB/CIFS, iSCSI, and NFS protocols. Users without permission to access the TVS-471U-RP will be unable to access the stored files, hence data security risks and privacy leaks can be avoided.


Storage for comprehensive virtualization applications

The TVS-471U-RP supports VMware  and Citrix , and is compatible with Microsoft  Hyper-V and Windows Server 2012, benefiting flexible deployment and management in the virtualization environments. The TVS-471U-RP supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications.

Learn more: VMware Ready, Citrix Ready, Microsoft Hyper-V, VMware VAAI, Microsoft ODX, SMI-S provider for Microsoft SCVMM


Run multiple OS' on the TVS-471U-RP

The Virtualization Station transforms the TVS-471U-RP into a 2-in-a-box NAS that can function as an all-in-one NAS and a virtualization platform that supports multiple operating systems, fast virtual machine creation, virtual machine import/export, snapshot, and enables desktop operations on web browsers. With an easy-to-use interface, you can centrally manage all of the virtual machines created on the TVS-471U-RP with minimal effort. You can also download VMs on demand from online VM markets and import them to TVS-471U-RP without any complex procedure.


Highly-efficient storage solution for video editing

Digital film and video production produces a vast amount of data that requires high-performance RAID storage with sustainable throughput to balance with the demanding output of video editing. The TVS-471U-RP fulfills storage and video editing needs with a high speed 10GbE network interface. Digital videos can be quickly stored and edited on the TVS-471U-RP directly over the network.

QNAP

File synchronization across multiple devices

The Qsync utility turns your TVS-471U-RP into a safe data center for file synchronization with a large storage capacity. Any file uploaded to the TVS-471U-RP will be made available for all linked devices, such as computers, laptops or mobile devices. Qsync is especially useful for frequent travelers to manage files and always have the most updated files on different devices. Qsync provides multiple ways of file synchronization and group file sharing, greatly enhancing the flexibility of collaboration.



Comprehensive surveillance solution with 24/7 security

The TVS-471U-RP's Surveillance Station offers a professional surveillance solution with a user-friendly management interface, a wide range of over 2,700 compatible IP camera models, and expandable IP camera channel licenses. It supports real-time monitoring, video & audio recording and playback with a wide range of customizable settings. You can also install the Vmobile app on your iOS  or Android mobile devices to manage the monitoring channels anytime and anywhere to safeguard your office environment, or install the Vcam app to turn your mobile device into a network camera to instantly record any moment around you to your TVS-471U-RP.


Additional SMB-ready features

The TVS-471U-RP supports various business applications as an all-in-one Turbo NAS with cost-efficiency.


FTP Server

The Turbo NAS supports FTP server to share large size files, coming with user-defined settings including bandwidth limitation, number of connections, and write-only permission.


Web Server

The Turbo NAS supports Web server which allows numerous websites built on the same server conveniently. Administrators can manage up to 32 websites on the single one Turbo NAS with reduced IT cost.


RADIUS Server

The Turbo NAS supports RADIUS server which provides centralized authorization management for computers to connect and use a network service.


VPN Server

The Turbo NAS supports VPN server which provides an easy way for IT administrators to build up a secure private network and allows the staff to log on from outside the office and access business resources securely such as files and Internet connections.


Printer Server

The Turbo NAS supports Printer server to send remote printing request over the Internet (max. 3 USB printers), and supports IPP (Internet Printing Protocol), Samba, print job management and Bonjour printing for Mac OS X.


Surveillance Station

The Turbo NAS supports Surveillance Station to connect and manage multiple IP cameras remotely, including real-time monitoring, video recording, playback, and event notifications.

Install-on-demand apps extend NAS features

The TVS-471U-RP has a built-in App Center that provides over 100 install-on-demand apps developed by QNAP and third-party developers, including tools for backup/sync, business, content management, communications, download, entertainment, and much more. It is also a centralized location for managing & updating installed apps. In addition, QNAP's development platform embraces the open-source spirit to enable developers to create their own apps, adding potentially limitless potential for the TVS-471U-RP.


Specifications

Operating System
QTS 4.1
Disk Management
  1. QNAP Flexible Volume
  2. Thin-provisioning Volume with Space Reclamation Supported
  3. Online Volume Expansion
  4. Online Storage Pool Expansion
  5. Single Disk, JBOD, RAID 0, 1, 5, 6, 10
  6. RAID Hot Spare and Global Hot Spare
  7. Online RAID Capacity Expansion and Online RAID Level Migration
  8. Bad Block Scan and Hard Drive S.M.A.R.T.
  9. Bad Block Recovery
  10. RAID Recovery
  11. Bitmap Support
  12. Cache Acceleration Technology
  13. SMART Data Migration
Supported Clients*
  1. Windows XP and Windows Server 2003 onward, Apple Mac OS X onward, Linux & UNIX
Power Management
  1. Wake on LAN
  2. Internal Hard Drive Standby Mode
  3. Scheduled Power on/off
  4. Automatic Power on after Power Recovery
  5. USB and Network UPS Support with SNMP Management
  6. System Sleep Mode (S3)**
Supported Browsers
  1. Chrome, Internet Explorer 10+, Firefox, Safari
Access Right Management
  1. Batch Users Creation
  2. Import/Export Users
  3. User Quota Management
  4. Local User Access Control for CIFS, AFP, FTP, and WebDAV
  5. Subfolder Permissions Support for CIFS/SMB, AFP, FTP, and File Station
Multilingual Support
  1. Chinese (Traditional & Simplied), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish
myQNAPcloud Service
  1. Private Cloud Storage and Sharing with myQNAPcloud ID (QID)
  2. Free Host Name Registration (DDNS)
  3. Auto Router (via UPnP) Conguration and
  4. Web-based File Manager with HTTPS 2048-bit Encryption
  5. myQNAPcloud Connect for Easy VPN Connection (Windows VPN Utility)
File System
  1. Internal Hard Drive: EXT4
  2. External Hard Drive: EXT4, EXT3, NTFS, FAT32, HFS+
Qsync
  1. Sync Files among multiple devices with SSL support (Supports Windows and Mac)
  2. Selective Synchronization for folders
  3. Share Team Folder as a File Center for Team Collaboration
  4. Shares Files by Links via E-mail
  5. Policy settings for conflicted files and file type filter support
  6. Privilege Control for Qsync Users
  7. Version Control: up to 64 versions.
  8. Incremental synchronization for HDD space saving
Networking
  1. TCP/IP: IPv4 & IPv6(1)
  2. Multiple NICs with Jumbo Frame (Failover, Multi-IP Settings, Port Trunking/NIC Teaming )
  3. Service Binding Based on Network Interfaces
  4. Proxy Client, Proxy Server
  5. DHCP Client, DHCP Server
  6. NTP Server**
  7. Protocols: CIFS/SMB, SMB2.1**, SMB3.0 (Encryption only)**, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
  8. UPnP & Bonjour Discovery
  9. USB Wi-Fi Adapter Support
Web Administration
  1. Multi-window, Multi-tasking based System Management
  2. Movable Icons and Personalized Desktop
  3. Smart Toolbar and Dashboard for Neat Display on System Status
  4. Login Screen with Personalized Photo-wall Style
  5. Smart Fan Control
  6. Dynamic DNS (DDNS)
  7. SNMP (v2 & v3)
  8. Resource Monitor
  9. Network Recycle Bin for File Deletion via CIFS/SMB, AFP and File Station
    - Automatic Cleanup
    - File Type Filter
  10. Comprehensive Logs (Events & Connection)
  11. Syslog Client/Server
  12. System Settings Backup and Restore
  13. Restore to Factory Default
  14. Mobile App: Qmanager for Remote System Monitoring & Management
Security
  1. Network Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
  2. SMB 3.0 Encryption **
  3. CIFS Host Access Control for Shared Folders
  4. FIPS 140-2 Validated AES 256-bit Volume-based Data Encryption*
  5. AES 256-bit External Drive Encryption*
  6. Importable SSL Certicate
  7. Instant Alert via E-mail, SMS, Beep, and LCD Panel*


Powerful All-in-one server
File Server
  1. File Sharing across Windows, Mac, and Linux/UNIX
  2. Windows ACL
  3. Advanced Folder Permission for CIFS/SMB, AFP, FTP
  4. Shared Folder Aggregation (CIFS/SMB)
VPN Server
  1. Secure Remote Access: PPTP & OpenVPN VPN services
  2. Max No. of Clients: 30
FTP Server
  1. FTP over SSL/TLS (Explicit)
  2. FXP Supported
  3. Passive FTP Port Range Control
Domain Authentication Integration
  1. Microsoft Active Directory (AD)
  2. Domain Controller** and Domain Member
  3. LDAP Server, LDAP Client
  4. Domain Users Login via CIFS/SMB, AFP, FTP, and File Station
File Station
  1. Supports ISO Mounting (Up to 256 ISO Files)
  2. Support Thumbnail Display of Multimedia Files
  3. Supported Share Download Link and Upload Link
  4. Drag-and-drop Files via Chrome and Firefox Browsers
  5. Photo, Music, and Video Preview and Playback Empowered by Built-in Real-time Transcode
  6. Smart Filter
  7. File Compression (ZIP or 7z)
Storage Plug & Connect
  1. Creates and Maps Shared Folders by QNAP Windows Qnder
  2. Creates and Connects to iSCSI Target/LUN
Backup Station
  1. Remote Replication Server (over Rsync)
  2. Real-time Remote Replication (RTRR) to another QNAP NAS or FTP Server
  3. Works as Both RTRR Server & Client with Bandwidth Control
  4. Real-time & Scheduled Backup
  5. Encryption, Compression, File Filter, and Transfer Rate Limitation
  6. Encrypted Replication between QNAP NAS Servers
  7. Desktop Backup with QNAP NetBak Replicator for Windows
  8. Apple Time Machine Support with Backup
  9. Data Backup to Multiple External Storage Devices
  10. Synchronizes with Cloud Storage: Amazon S3, ElephantDrive, Symform, Dropbox, and Google Cloud Storage
  11. Third Party Backup Software Support: Veeam Backup & Replication, Acronis True Image, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, etc.
iSCSI (IP SAN)
  1. iSCSI Target with Multi-LUNs per Target (Up to 256 Targets/LUNs Combined)
  2. Supports LUN Mapping & Masking
  3. Supports LUN Target ACL **
  4. Online LUN Capacity Expansion
  5. Supports SPC-3 Persistent Reservation
  6. Supports MPIO & MC/S
  7. iSCSI LUN Backup, One-time Snapshot, and Restore
  8. iSCSI Connection and Management by QNAP Finder (Windows)
  9. Virtual Disk Drive (via iSCSI Initiator)
  10. Stack Chaining Master
  11. Max No. of Virtual Disk Drives: 8
Print Server
  1. Max No. of Printers: 3 (via Internet Printing Protocol)
  2. IP-based and Domain Name-based Privilege Control
Server Virtualization & Clustering
  1. VMware vSphere (ESX/ESXi 4.x, 5.x)
  2. VMware VAAI iSCSI ** (Block Copy, Block Zeroing, Hardware Assisted Locking, Thin Provisioning and Space Reclamation)
  3. VAAI for NAS** (Full File Clone, Space Reserve, Extended Statistics)
  4. vSphere Plug-in
  5. Citrix XenServer (6.2)
  6. Windows Server 2012 Hyper-V
  7. Supports Microsoft ODX **
  8. QNAP SMI-S Provider for Microsoft SCVMM **
  9. QNAP VSS Hardware Provider **
  10. Windows Server 2012 Failover Clustering
Surveillance Station
  1. Supports over 2,700 IP Cameras
  2. Includes 4 Free Camera License, Up to 72 Camera Channels via Additional License Purchase
  3. Simple Floating Toolbar to Show Only When User Hovers Over Areas
  4. Instant Playback to Check the Recent Event
  5. Online Editing to Edit Cameras When Live View
  6. Visual Aid by E-map
  7. Playback and Speed Control by Shuttle Bar
  8. Video Preview on Playback Timeline
  9. Intelligent Video Analytics (IVA) for Advanced Video Search
  10. Surveillance Client for Mac
  11. Mobile Surveillance App: Vmobile (iOS and Android)
  12. Mobile Recording App: Vcam (iOS and Android) (only for x86-based)
APP Center
  1. Offers more than 100 Official and Community Software Add-ons (The actual available software add-ons may vary depending on the NAS platform)
Virtualization Station
  1. Supports multiple Virtual Machine (VM) creation to run various operating systems includes Windows, Linux, Unix.
  2. Supports importing VMs from Virtual Appliances
  3. Supports exporting of VMs into a virtual appliance in OVF / QVM format
  4. Supports VM cloning
  5. Supports VM snapshot
  6. Supports multiple remote consoles
  7. Supports HTML5-based shared remote console
  8. Supports multiple bridge interfaces to offer the individual network bandwidth for each VM
  9. Supports customization options for each VM
Mobile App
  1. Qfile: iOS, Android Phone, Windows phone
  2. Qfile HD: iPad version
  3. Qmanager: iOS, Android Phone
  4. Qmusic: iOS, Android Phone
  5. Qremote: iOS, Android Phone
  6. Qget: Android Phone
  7. Vmobile: iOS, iPad, Android Phone
Notes Station
  1. Take Notes of Everything on Your Private Cloud
  2. Collaborate Notes from Multiple Users
  3. Supports Graphical Editor for Note Editing (WYGIWYS)
  4. Integrated with NAS File System: Insert attachments or Images from NAS File System
  5. Supports Event Calendar and To-do List
  6. Supports Image Editor
  7. Supports Note Publishing with a Single Link
  8. Supports Key Word Search
  9. Clip Web Page Content to Note (via Chrome Extension)
  10. Clip Web Page Image to Note (via Chrome Extension)


(1). Not all services are supported.
* The data encryption functions may not available in accordance with the legislative restrictions of some countries.
** Specific NAS series only.
Design and specifications are subject to change without notice.

Hardware Spec.

CPU TVS-471U-RP-PT-4G: Dual-core Intel Pentium G3250 3.1 GHz Processor
TVS-471U-RP-i3-4G: Dual-core Intel Core i3-4150 3.5 GHz Processor
DRAM TVS-471U-RP-PT-4G / TVS-471U-RP-i3-4G
System memory: 4 GB DDR3 RAM
Memory module pre-installed: 4 GB x1
Total memory slots: 4
Memory expandable up to: 32 GB (8GB x4)
Note: When upgrading RAM to more than 28GB, the original 4GB RAM modules must be removed.



For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide
Flash Memory 512MB DOM
Internal Cache Port Two mSATA port on board for read caching

Note: The standard system is shipped without mSATA flash module. For the optional mSATA flash module, please visit https://shop.qnap.com/
Hard Drive 4 x 3.5-inch SATA 6Gb/s, SATA 3Gb/s hard drive or 2.5-inch SATA, SSD hard drive
NOTE:
1. The standard system is shipped without hard drives.
2. For the hard drive compatibility list, please visit www.qnap.com/compatibility
Hard Disk Tray 4 x hot-swappable and lockable tray
LANPort 4 x Gigabit RJ-45 Ethernet port
(Expandable up to 6 x 1 Gb LAN or 2 x 10 Gb + 4 x 1 Gb LAN by installing optional dual-port 10 Gb and 1 Gb network card)

Note:
1. For the optional network card compatibility list, please visit www.qnap.com/compatibility
2. For the information of network card installation, please refer to chapter 6 in the Turbo NAS Hardware Manual.
LED Indicators Status, 10 GbE, LAN, storage expansion port status
USB/eSATA 4x USB 3.0 port (rear)
4x USB 2.0 port (rear)

Support USB printer, pen drive, USB hub, and USB UPS etc. .
HDMI 1
Buttons System: Power button and reset button
Alarm Buzzer System warning
Form Factor 1U, Rackmount
Dimensions 44 (H) x 439 (W) x 499 (D) mm
1.732 (H) x 17.28 (W) x 19.64 (D) inch
Weight Net weight: 7.63 kg (16.82 lbs.)
Gross weight: 11.60 kg (25.57 lbs.)
Sound Level (dB) Sound pressure (LpAm) (by stander positions): 42.1 dB
(with 4 x WD WD20EFRX hard drive installed)
Power Consumption (W) HDD Standby:
TVS-471U-RP-PT-4G: 57.25
TVS-471U-RP-i3-4G: 56.60



In Operation:
TVS-471U-RP-PT-4G: 66.00
TVS-471U-RP-i3-4G: 65.88



(with 4 x WD WD30EFRX hard driveinstalled)
Temperature 0~40C
Relative Humidity 5~95% non-condensing, wet bulb: 27C.
Power Supply Input: 100-240V AC, 47-63Hz
Output: 250W
PCIe Slot 1 (PCIe Gen3 x4)
Fan 2 x 4 cm smart cooling fan


1. LED Indicators:
10 GbE, Status, LAN, Storage Expansion Port Status		 6. USB 3.0 Port x 4
2. Power Button 7. HDMI
3. Password & Network Settings Reset Button 8. Expansion Slot
4. USB 2.0 Port x 4 9. Power Connector
5. Gigabit LAN x 4

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 year return to base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
Click on a thumbnail to view it below

No related products found.


L7: 9 | TM: 3 | LM: 27 | TY: 219 | T: 1337

About | Contact Us | Service & Support | Feedback | Policies | Secure login | Free signup! | FAQ | SiteMap
We accept the following with No surcharge on VISA, Mastercard and Paypal!
© Techbuy Pty Ltd 2000 - 2025 All rights reserved.
All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.
