HU525HSD
1:5 2.5" HDD/SSD Duplicator
Overview
About the 2.5" HDD/SSD Duplicator Series
The Addonics family of 2.5" duplicator is an
economical hard drive duplicator solution with choice of models for
copying from three up to as many as eleven 2.5" SATA hard drive or SSD.
There is no computer needed or complex software to operate. Just open
the doors on the drive bays, load your master hard drive to the source
bay and other hard drives of capacity equal or larger into the target
bays, lock the drive doors and push the start button to start the
copying process.
About This Model

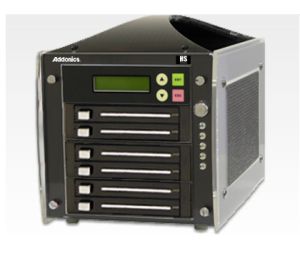

The 1:5 2.5" HDD/SSD duplicator is built in a
compact, light weight and sturdy aluminum chasis for easy
transportation. Integrated with Snap-In Double Drive for easy loading or
removal of the drive from the system without any special tool, this
duplicator offer choice for high speed model that maintain fast copying
performance in duplicating from 1 to 5 targets. Using optional Addonics family of 2.5" Flash drive kit,
this duplicator can also be used for making copies of other flash media
such as M2, mSATA, CFast, CF, slim SATA and 1.8" HDD/SSD.
- Copy up to five 2.5" SATA hard drives or SSD
- Great for cloning hard drives, making back up hard drives, system upgrade and data distribution
- Choice of High Performance model
- Support any file system
- Support any 2.5" SATA hard drive or SSD with thickness up to 9.5 mm
- Can also be used for duplicating other flash media -
M2, mSATA, CFast, CF, slim SATA and 1.8" HDD/SSD, using optional
Addonics family of 2.5" Flash drive kit
- Maximum drive size >3TB
- Typical copying speed*:
| Copying Speed |
| model |
1 drive |
3 drive |
4 drives and more |
| HU525HSD |
~ 105 MB/sec |
~ 70 MB/sec |
~ 50 MB/sec |
| HU525HSDHS |
~ 105 MB/sec |
~87 MB/sec |
~87 MB/sec |

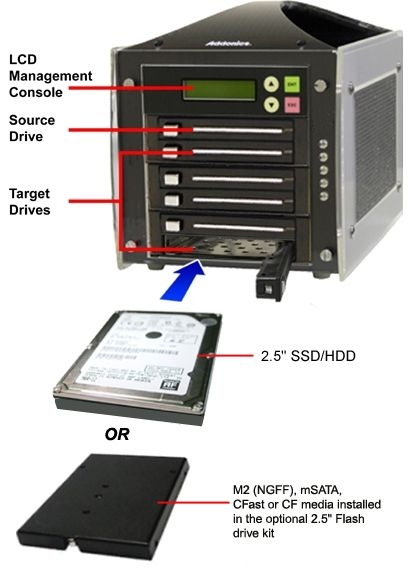

- Source and Destination drives are added or removed like tape cartridges from each drive bay with no special tool required
- Can duplicate M2 (NGFF), mSATA, CFast or CF flash card using optional Addonics 2.5" Flash drive
- Drive sanitization:
- SECURE ERASE - HDD duplicator sends a WIPE command to the hard drive. This command fills 00 string to entire HDD
- OVERWRITE - One pass, 3 passes and 7 passes
5220.22-M. The duplicator writes a string of pattern over the entire
disk one time, three times or seven times. 5220.22-M is the DoD standard for drive sanitization
- LCM control module provides a rich set of robust advanced configuration options (diagram of duplicator features can be here Full LCD console feature list)
- Operate as a stand alone appliance. No computer or software needed
* The
speed here is for reference only. The speed were measured basing on
using 2.5" SATA III 1TB hard drive for both source and target. The transfer rate varies depending on the speed of the source and destination drive
Components that make up the main unit
Model: HU525HSD- Storage Tower IV (ST4), 1:5 HDD Duplicator subsystem (HDU5SAS), three (3) Snap-In Double Drives (AE25SNAP2SA)
Model: HU525HSDHS - Storage Tower IV (ST4), 1:5 HDD High Speed Duplicator subsystem (HDU5SASHS), three (3) Snap-In Double Drives (AE25SNAP2SA)
Included accessories: Power cord and user guide
Specifications
- Writing mode : Sector to Sector
- Typical copying speed:
| Copying Speed |
| model |
1 drive |
3 drive |
4 drives and more |
| HU525HSD |
~ 105 MB/sec |
~ 70 MB/sec |
~ 50 MB/sec |
| HU525HSDHS |
~ 105 MB/sec |
~87 MB/sec |
~87 MB/sec |
- Sturdy metal frame construction
- Drives are added or removed just like VHS cassette without tools
- LCD display with functional control panel
- Well ventilated for efficient air flow.
- Low noise high CFM ball bearing cooling fan
- Integrated universal AC 110/240V power supply
- Dimension: 7.5 x 16 x 10.4 in. (190 x 406 x 264 mm)
- Weight: ~ 12.72lb (5.77kg)
- Operating temperature and humidity: 0 - 50 degree C, 15% - 90% RH
- Storage temperature and humidity: (-20) - (65) degree C, 0% - 95% RH non-condensing
