ED-HP-5102ACK | Edimax HP-5102ACK Nano PowerLine Adapter Kit with Integrated

• 500Mbps high speed ideal for HD video streaming
• Utilizes existing electrical wires to transmit network data
• Integrated power socket with noise filter
• Easy plug-n-play setup and 128 bit AES security
• Powerline transmission range up to 300 meters
• Backward compatible with 200Mbps powerline adapters
• Features energy saving mode to reduce power consumption
• HP-5102ACK Adapter Kit includes 2 x HP-5102AC

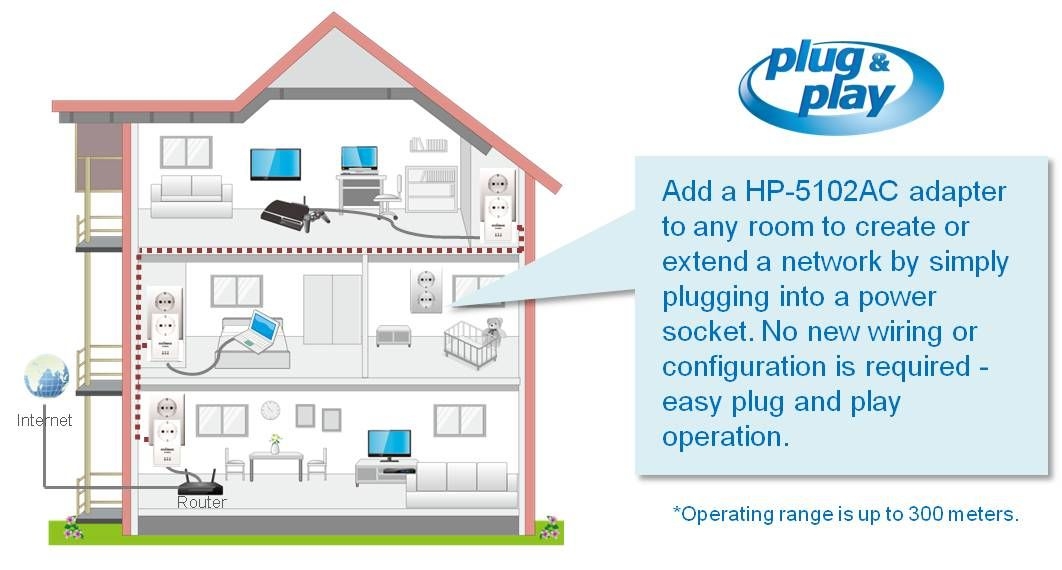

Transmit Network Data via Existing Electrical Wires

The Edimax HP-5102AC transforms the existing electrical wires in your home or office into a high-speed network. Complicated, disruptive and unsightly cabling is no longer necessary - if your home or office doesn’t have an existing Ethernet cable infrastructure, the HP-5102AC enables you to create a network environment easily and cost-effectively.

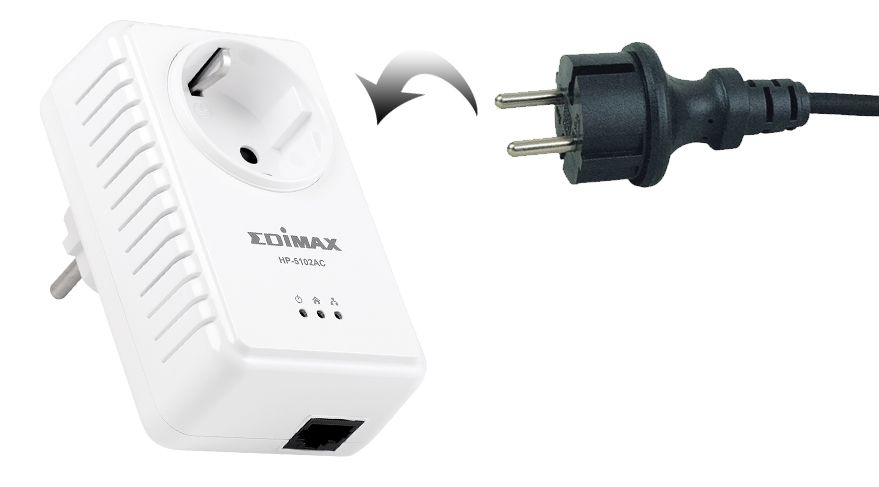

Integrated Power Socket with Noise Filter

 With the Edimax HP-5102AC, no electrical outlet goes to waste. It is built with an integrated power socket, which you can use with any electrical device. So even when the HP-5102AC is plugged into a socket, you can still plug another electrical device into the HP-5102AC and have your usual socket capacity. The in-built noise filter also ensures that you do not experience a sudden drop of network speed when a high power consuming electrical device is being used.

500Mbps HomePlug AV Standard & IGMP Support

The Edimax HP-5102AC not only complies with the HomePlug AV standard but also supports IGMP managed multicast streams. The HP-5102AC can transmit network data over existing electrical wires at speeds of up to 500Mbps. It is also backward compatible with the 200Mbps HomePlug AV standard and has a transmission range of up to 300 meters. IGMP can be used for online gaming and video streaming applications, and allows for more efficient use of network resources. With the HP-5102AC, you can transfer high-definition video and digital audio quickly and easily.

Compatible with HomePlug 1.0 & 1.0 Turbo Devices

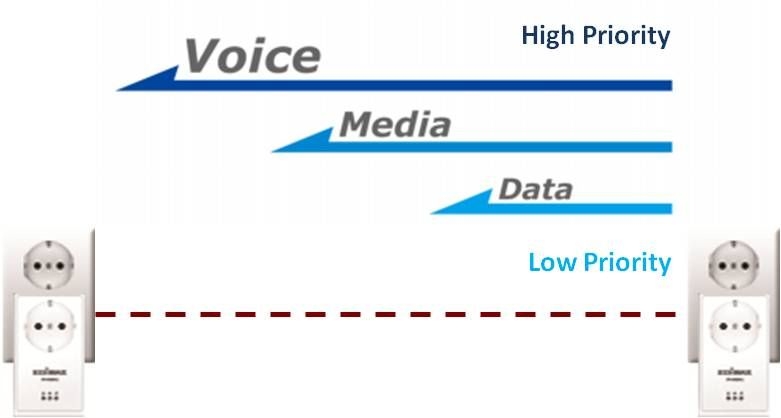

The HP-5102AC is designed to ensure efficient coexistence with HomePlug 1.0 and 1.0 Turbo devices, providing guaranteed QoS to all devices present in a heterogeneous powerline network. In such an architecture, the HP-5102AC and other HomePlug 1.0 stations share the CSMA/CA allocations, thus providing fair access to HomePlug 1.0 stations based on traffic priority.

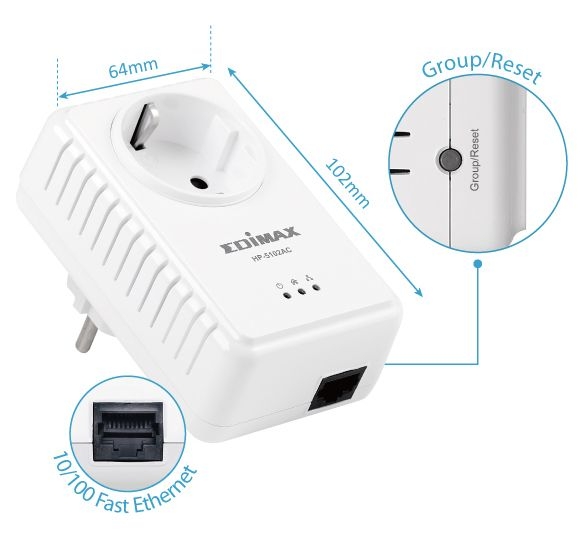

Hardware Combo Group/Reset Button

The Edimax HP-5102AC has a combo group/reset button for simplified group and reset configurations. Press the group/reset button and the HP-5102AC will help you set up a password for your network automatically, or reset the device to factory defaults.

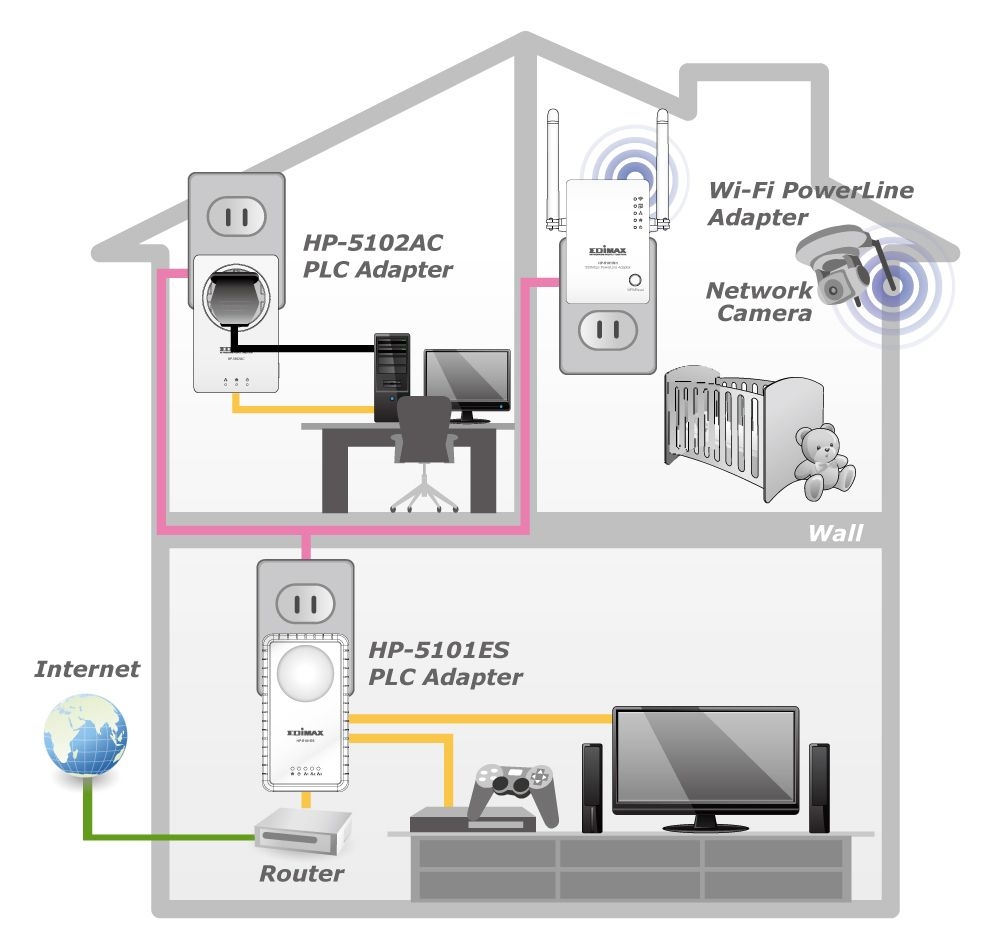

 APPLICATION DIAGRAM


• Plug a HP-5102AC into a power outlet and connect it to a broadband router.
• Plug another HP-5102AC into a power outlet and connect it to a computer's Ethernet port to establish a powerline connection.
