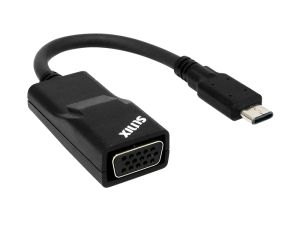

SUNIX C2VC7A0, USB-C to video Adapter lets you connect your Apple
MacBook, Google Chromebook, or Windows laptop with USB-C port to a VGA
display. This slim design adapter allows you to mirror/extend your
display to your VGA-enabled TV, display, projector or other compatible
display in up to 1080p HD.
This high-resolution adapter offers plug and play functionality to provide an active digital to analog conversion without software or drivers. Simply attach SUNIX USB Type-C to VGA Adapter to the USB Type-C connector on your laptop and then to your TV or projector via a VGA cable. You can use an external display as your main workspace or to extend your desktop, or you can work in mirrored mode with a projector so you can view what your audience sees.
Features
-
Adapts USB C-Type equipped laptops to work with VGA-enabled displays.
-
Integrated chip to provide an active digital to analog conversion.
-
Compliant with VESA DisplayPort Alternate Mode for USB Type-C Standard Rev1.0.
-
VGA output is compliant with VESA VSIS version 1, Rev.2 specification.
-
Easy plug and play allows seamless display of your laptop and tablet content to your display.
-
Driver free under Apple MAC, Google Chromebook and Microsoft Windows operation systems.
- Certified by Electromagnetic Compatibility (CE, FCC, VCCI, C-Tick, BSMI) and RoHS approval.
Specifications:
-
Input Interface:
-
USB C-Type Male
-
USB Type-C Male, DisplayPort Alternate Mode
-
Output Interface:
-
VGA (RGB)
-
VGA D-Sub 15-pin Female
-
Power:
-
USB Bus Power
-
+5VDC @ 250mA
-
Resolutions:640x480,800x600,1024x768,1280x720,1280x768,1280x800,1280x1024,1366x768, 1400x1050, 1600x1200, 1680x1050, 1920x1080,1920x1200
-
Name: VGA,SVGA,XGA,720p,WXGA+,WXGA,SXGA,WXGA+,SXGA+,UXGA,WSXGA+,1080p,WUXGA,
-
Refresh Rate:60 Hertz
-
Audio:Not Support
-
Housing:ABS (plastic)
-
Driver Support:
-
Driver free under
-
Apple MAC, Google Chromebook and Microsoft Windows
-
Environment:
-
Operation temp. 0 °C ~ 60°C (32-140°F)
-
Operation humidity: < 85% non-condensing
-
Storage temp. -10 °C ~ 85 °C (14~176°F)
-
Weight:25g (0.8oz)
-
Regulatory Approvals:
-
EUR: CE, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3
-
US: FCC Part 15 Class B
-
TAIWAN: BSMI: CNS13438
-
AS/NZS: C-Tick: CISPR22
-
JAPAN: VCCI
-
Green Environment:RoHS, CRoHS, WEEE
-
Mechanical Drawings (unit: mm):
-
47(L) x 22(W) x 13(H) mm
-
USB-C Cable length 80mm
