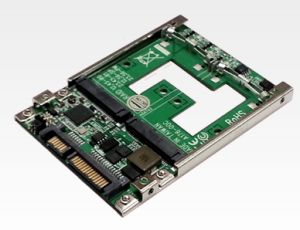

This Dual mSATA - SATA Adapter is designed to enable two mSATA (mini SATA) SSDs to be installed into the space of a 2.5" hard drive. The two mSATA SSD can be configured to form a single RAID volume and used as a direct replacement for the 2.5" SATA hard drive. The Dual mSATA - SATA adapter is capable of performance up to 6 Gbps and allows the mSATA card to be used as bootable SSD. The adapter comes with two 7 mm height mounting rails that have the same mounting holes location as on standard 2.5" hard drive. As a result, any equipment such as Notebook computer that uses a 2.5" SATA hard drive as thin as 7 mm., can be easily replaced with the low power, high performance and shock resistant mSATA card, When connecting to a Port Multiplier compatible SATA port, the two mSATA SSDs can also be set up to operate as two independent drives.


 The dimensions and the screw hole locations on the two mounting rails are the same as on a standard 7 mm SATA hard drive

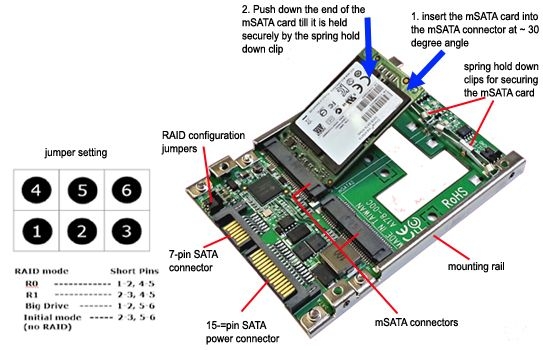

  • Install up to two mSATA (mini SATA) SSDs
  • The two mSATA cards can be configured as RAID ), RAID 1, BIG DRIVE (SPAN) or as two individual drives*
  • The resulted RAID volume can be used as direct replacement for 2.5" hard drive
  • Maximum height: 7 mm including the mSATA card
  • Support maximum data transfer of 6 Gbps when connects to SATA III port
  • Can be the primary bootable device containing the OS and applications
  • No special tool required to mount the mSATA cards onto the adapter
  • OS independent with no software driver to install


* For individual drive configuration, the SATA port must be Port Multiplier compatible. SATA port on most laptop systems are not PM compatible. Please check with your equipment manufacturer if you plan to use this adapter for two individual drives set up.



  • 22-pin SATA and power combo connector (same as 2.5" SATA hard drive)
  • SATA Hot-swappable support when connected to SATA port supporting such feature
  • Maximum transfer rate: 6 Gbps. Actual speed depends on the speed of the mSATA SSD
  • 2 mSATA card connectors plus two hold down spring clips
  • Dimensions (W x L x H):  ~ 69.85 x 100.2 x 7 mm  (same as 2.5" hard drive with 7 mm height)
  • Weight: ~ 41 g (1.45 oz.) not including the mSATA cards
  • Power: +5V from PC power supply
  • Minimum Current: ~50 mA at 5V without the mSATA cards
  • Industrial operating Temperature: 0 - 65 °C
  • Operating Humidity: 5% - 95% (non condensing)
  • Storage Temperature: -40 ?C to + 85 °C
  • Storage Humidity: 5% - 95%

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 year return to base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.
