Overview

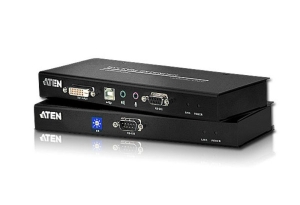

The CE602 is a DVI Dual Link and USB based KVM Extender with RS-232 serial
functionality. It allows access to a computer system from a remote console (USB
keyboard, monitor, and mouse). Because it allows access to a computer system
from a remote console, the CE602 is perfect for use in any type of installation
where you need to place the console where it is conveniently accessible, but you
want the system equipment to reside in a safe location away from the dust and
dirt of the factory floor, or the harsh environmental influence of a
construction site, for example. This allows users to deploy system equipment
over large distances.
The CE602 can support up to 2560 x 1600 (DVI Dual Link) resolution. It uses
two Cat 5e cables for HDCP, RS-232, microphone and dual link signals. You can
also use just one Cat 5e cable if using single link connections.
Compatible Accessories
KVM Cables
- 2L-7D02U - Lenght: 1.8m
- 2L-7D02UD - Lenght: 1.8m
- 2L-7D03U - Lenght: 3m
- 2L-7D03UD - Lenght: 3m
- 2L-7D05U - Lenght: 5m
Cat 5 Cables
Compatible Products
Cable KVM Switches
Desktop KVM Switches
- CS1784A
- CS1782A
- CS1644A
- CS1642A
- CM1164
Package Contents
| 1x CE602L DVI
KVM Extender (Local Unit) |
| 1x CE602R DVI KVM Extender (Remote Unit) |
| 1x 1.8 m USB DVI-D Dual Link KVM Cable Set |
| 2x Power
Adapters |
| 1x Mounting
Kit |
| 1x User
Instructions |
Patent No.
I389479 , ZL200910207082.6
Features
| Local and
Remote Units connect at distances up to 60 m using Cat 5e cable |
| Allows access to a computer or KVM installation from a remote
console (up to 60 m) |
| Supports DVI-D interface and allows transmission of DVI
duallink signals |
| Features ATEN
technology that allows A/V transmission over one cat 5e cable |
| The 2nd Cat
5e cable is used for HDCP, RS-232, microphone and dual link signals |
| Manual
compensation control to adjust signal strength in order to compensate for
distance |
| RS-232 serial ports connect to a serial terminal, or
serial devices such as touchscreens and barcode scanners (Baud Rate 115200
bps) |
| Audio Enabled
supports stereo speakers and microphone |
| Built-in
8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) |
| Supports Wide
Screen formats |
| Superior video quality of up to 2560 x 1600 @ 60 Hz
(DVI Dual Link) at 40 m; 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60
m get an excellent, crisp image on your screen over long distance
transmissions |
| Hot pluggable |
| Rack mountable |
| Easy to install no software required connecting cables to the
devices is all it takes |
| Firmware upgrade |

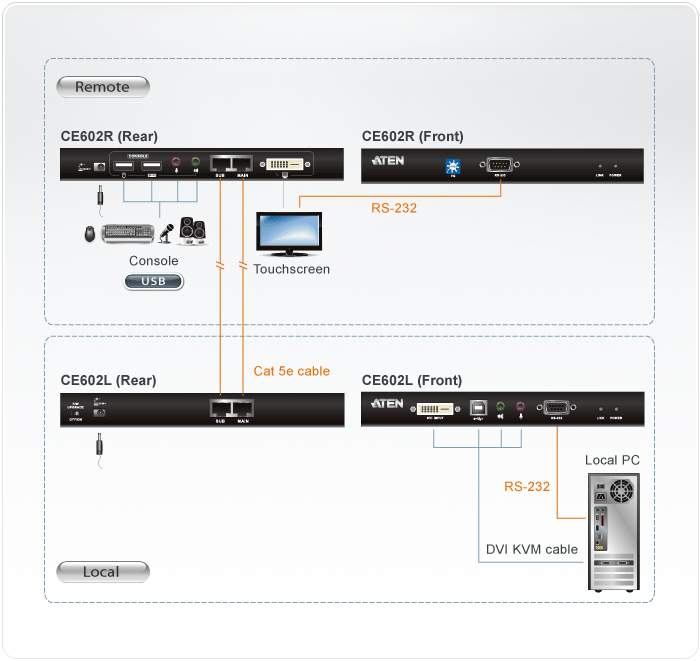

Diagram
Specifications
|
Function |
CE602L |
CE602R |
|
Connectors |
|
Console
Ports |
N/A |
2 x USB Type A Female
(White) |
|
1 x DVI-D Female
(White) |
|
1 x Mini Stereo Jack
Female (Green) |
|
1 x Mini Stereo Jack
Female (Pink) |
|
KVM
Ports |
1 x DVI-D Female
(White) |
N/A |
|
1 x Mini Stereo Jack
Female (Green) |
|
1 x Mini Stereo Jack
Female (Pink) |
|
1 x USB Type B Female
(White) |
|
RS-232 |
1 x DB-9 Female
(Black) |
1 x DB-9 Male
(Black) |
|
Power |
1 x DC
Jack |
1 x DC
Jack |
|
Sub /
Main |
2 x RJ-45 Female
(Black) |
2 x RJ-45 Female
(Black) |
|
LEDs |
|
Link |
1
(Green) |
1
(Green) |
|
Power |
1
(Green) |
1
(Green) |
|
Switches |
|
EQ
Switch |
N/A |
1 x 8-position
switch |
|
Firmware
Upgrade |
1 x Slide
Switch |
N/A |
|
Emulation |
|
Keyboard /
Mouse |
USB |
USB |
|
Video |
2560 x 1600 @ 60Hz (40
m, Dual Link) 1024 x 768 @ 60Hz (60 m) |
2560 x 1600 @ 60Hz (40
m, Dual Link) 1024 x 768 @ 60Hz (60 m) |
|
Power
Consumption |
DC 5.3V/3.18
W |
DC5.3V, 5.04
W |
|
Environmental |
|
Operating
Temperature |
050C |
050C |
|
Storage
Temperature |
-2060C |
-2060C |
|
Humidity |
080% RH,
Non-condensing |
080% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
Metal |
|
Weight |
0.48 kg ( 1.06 lb
) |
0.48 kg ( 1.06 lb
) |
|
Dimensions (L x W x
H) |
20.20 x 8.54 x 2.50
cm |
20.20 x 8.68 x 2.50
cm |
|
(7.95 x 3.36 x 0.98
in.) |
(7.95 x 3.42 x 0.98
in.) |
|
* The specification and
pictures are subject to change without notice. |
|
|
|
